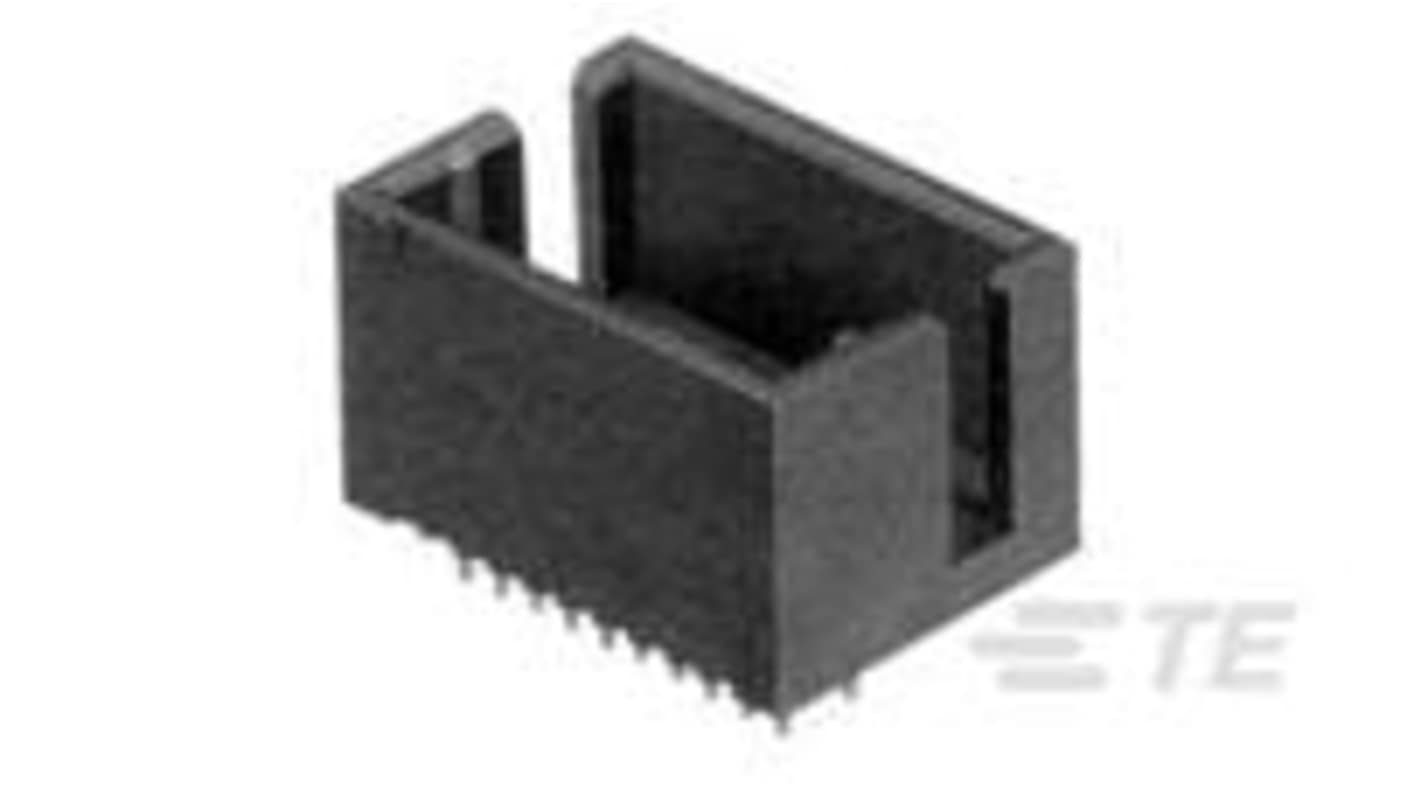

TE Connectivity AMPMODU Series Vertical Board PCB Header, 20 Contact(s), 1.27 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 480-268
- Mfr. Part No.:
- 104076-1
- Brand:
- TE Connectivity
Subtotal (1 tube of 50 units)*
£189.14
(exc. VAT)
£226.97
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £189.14 | £3.783 |
*price indicative
- RS Stock No.:
- 480-268
- Mfr. Part No.:
- 104076-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | AMPMODU | |
| Product Type | PCB Header | |
| Current | 3.6A | |
| Pitch | 1.27mm | |
| Number of Contacts | 20 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Board-to-Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | 65°C | |
| Row Pitch | 1.27mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Tail Pin Length | 2.54mm | |
| Standards/Approvals | RoHS | |
| Voltage | 30 V | |
| Distrelec Product Id | 304-53-625 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series AMPMODU | ||
Product Type PCB Header | ||
Current 3.6A | ||
Pitch 1.27mm | ||
Number of Contacts 20 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Board-to-Board | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Minimum Operating Temperature 65°C | ||
Row Pitch 1.27mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Tail Pin Length 2.54mm | ||
Standards/Approvals RoHS | ||
Voltage 30 V | ||
Distrelec Product Id 304-53-625 | ||
- COO (Country of Origin):
- MX
The TE Connectivity PCB mount header offers a robust solution for connecting vertically on printed circuit boards, providing a reliable board-to-board connection in various electronic applications. Designed with a fully shrouded configuration, it ensures a secure connection with 20 positions and 2 rows, which are optimally spaced for efficient wiring. The connector features a gold-plated contact mating area, enhancing conductivity while maintaining durability over time. It supports a broad operating temperature range, making it suitable for diverse environmental conditions. With its standard connector profile and easy integration into existing designs, this product effectively meets the demands of modern electronic assemblies.
Offers straightforward installation with through hole solder termination
Features low halogen content for environmentally conscious applications
Delivers high insulation resistance to ensure reliable performance
Constructed from sturdy LCP housing for enhanced durability
Secures a reliable connection with optimal mating alignment features
Provides excellent dielectric withstand voltage for added safety
