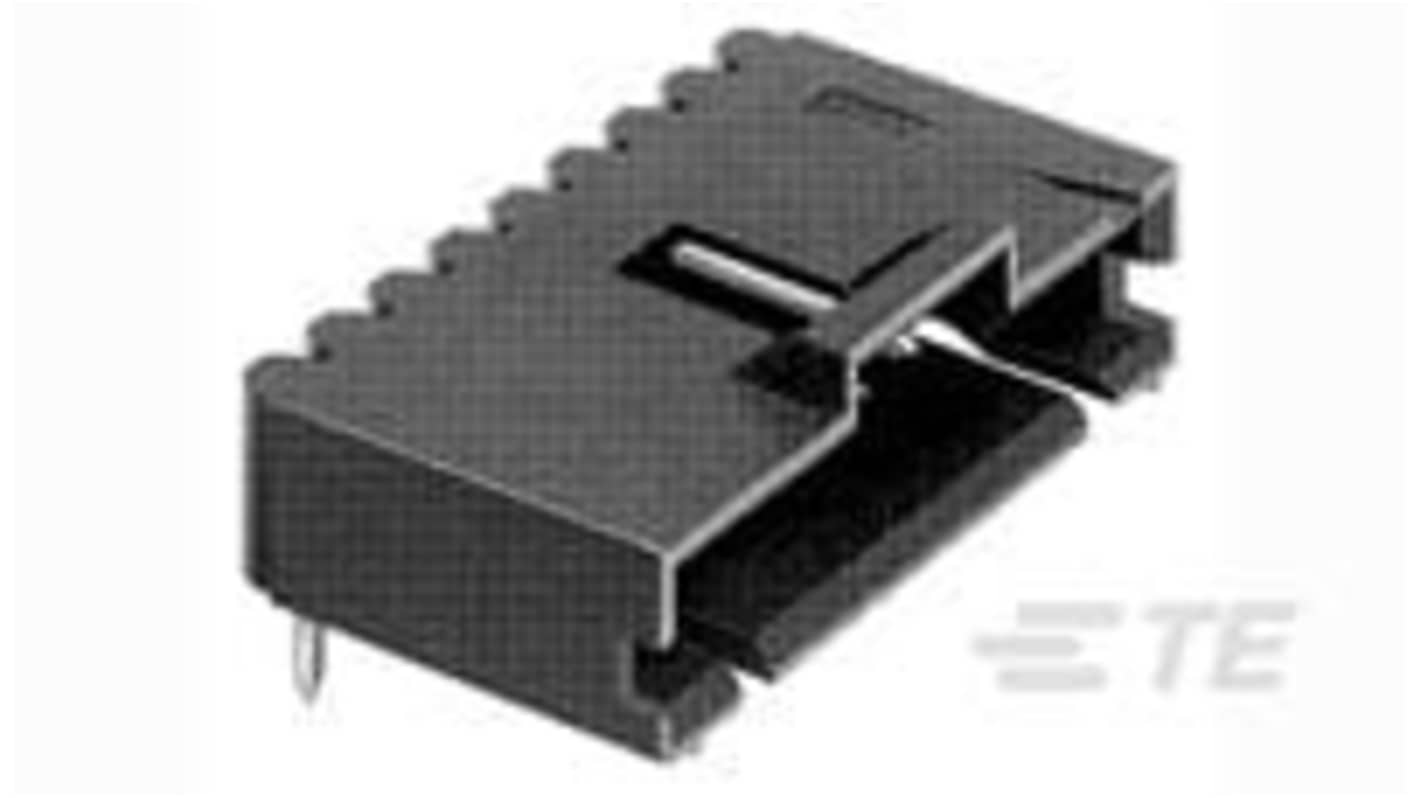

TE Connectivity AMPMODU Series Right Angle Board PCB Header, 2 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 480-255
- Mfr. Part No.:
- 103906-1
- Brand:
- TE Connectivity
Subtotal (1 tube of 280 units)*
£209.11
(exc. VAT)
£250.93
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £209.11 | £0.747 |
*price indicative
- RS Stock No.:
- 480-255
- Mfr. Part No.:
- 103906-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | AMPMODU | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Number of Contacts | 2 | |
| Housing Material | Thermoplastic | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 65°C | |
| Row Pitch | 2.54mm | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.3mm | |
| Contact Gender | Male | |
| Mating Pin Length | 5.84mm | |
| Standards/Approvals | CSA LR7189, UL E28476 | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-51-493 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series AMPMODU | ||
Pitch 2.54mm | ||
Current 3A | ||
Number of Contacts 2 | ||
Housing Material Thermoplastic | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Termination Type Solder | ||
Minimum Operating Temperature 65°C | ||
Row Pitch 2.54mm | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.3mm | ||
Contact Gender Male | ||
Mating Pin Length 5.84mm | ||
Standards/Approvals CSA LR7189, UL E28476 | ||
Voltage 60 V | ||
Distrelec Product Id 304-51-493 | ||
Non Compliant
- COO (Country of Origin):
- US
The TE Connectivity PCB Mount Header is a meticulously designed connector ideal for applications requiring reliable wire-to-board connections. This header features a right-angle orientation that is perfect for configurations where space is limited. Constructed with a fully shrouded design, it ensures secure contact and minimizes the risk of misalignment during installation. With two positions and a 2.54 mm centerline, this component strikes the ideal balance between size and functionality. Its gold (Au) plating enhances conductivity, while the through-hole solder termination method guarantees a robust connection to your printed circuit board. This product is engineered to withstand a range of operating temperatures, making it a versatile choice for various applications within the electronic circuitry landscape.
Fully shrouded design ensures enhanced contact security
Right-angle orientation optimizes space in compact assemblies
Gold plating improves electrical conductivity and reliability
Through-hole solder method provides a sturdy and lasting connection
Rated for operational temperatures from -65 to 105 °C
Compact two-position configuration streamlines circuit design
Thermoplastic housing material contributes to durability
Meets industry standards for safety and environmental compliance
