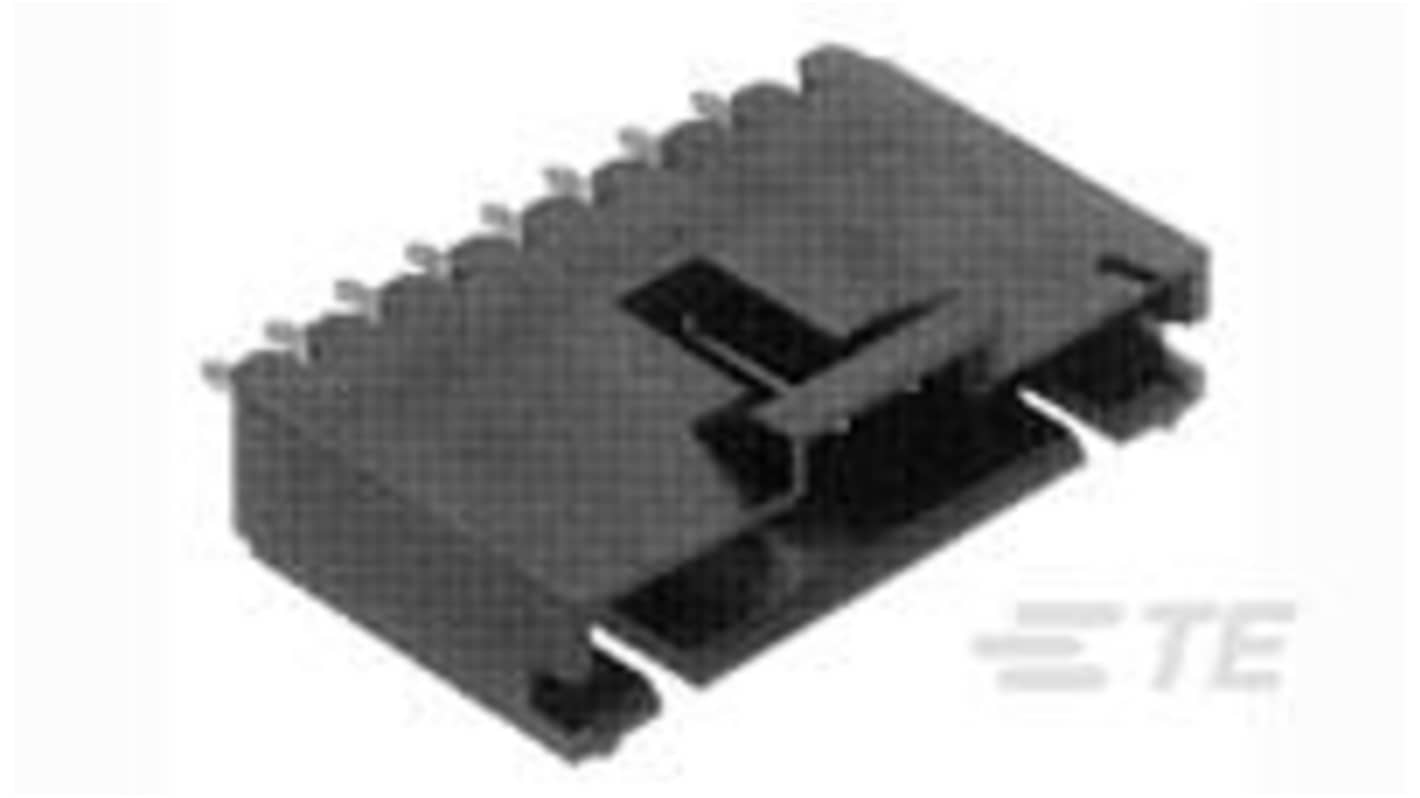

TE Connectivity AMPMODU Series Vertical Board PCB Header, 5 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 480-008
- Mfr. Part No.:
- 103908-4
- Brand:
- TE Connectivity
Subtotal (1 tube of 210 units)*
£197.72
(exc. VAT)
£237.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £197.72 | £0.942 |
*price indicative
- RS Stock No.:
- 480-008
- Mfr. Part No.:
- 103908-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | AMPMODU | |
| Product Type | PCB Header | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Number of Contacts | 5 | |
| Housing Material | Thermoplastic | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Termination Type | Solder | |
| Row Pitch | 2.54mm | |
| Minimum Operating Temperature | 65°C | |
| Tail Pin Length | 3.3mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Mating Pin Length | 5.84mm | |
| Standards/Approvals | CSA LR7189, UL 94V-0, UL E28476 | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-48-494 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series AMPMODU | ||
Product Type PCB Header | ||
Current 3A | ||
Pitch 2.54mm | ||
Number of Contacts 5 | ||
Housing Material Thermoplastic | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Termination Type Solder | ||
Row Pitch 2.54mm | ||
Minimum Operating Temperature 65°C | ||
Tail Pin Length 3.3mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Mating Pin Length 5.84mm | ||
Standards/Approvals CSA LR7189, UL 94V-0, UL E28476 | ||
Voltage 60 V | ||
Distrelec Product Id 304-48-494 | ||
Non Compliant
- COO (Country of Origin):
- US
The TE Connectivity PCB Mount Header is meticulously designed for vertical wire-to-board applications, featuring five positions with a centreline of 2.54 mm. The fully shrouded design ensures robust connectivity while minimising the risk of misalignment during assembly. Its durable construction, made from high-quality thermoplastic, provides reliable performance across a wide temperature range of -65 to 105 °C. Ideal for various applications, this connector utilises gold-plated contacts to ensure excellent conductivity, making it perfect for signal circuit applications. With its through-hole solder termination method, it delivers a secure connection to the printed circuit board, ensuring stability and longevity in electronic designs. Whether used in demanding industrial settings or complex consumer electronics, this header provides unparalleled reliability and performance.
Offers a fully shrouded header type for enhanced protection
Designed for easy and secure through hole soldering
Features a low profile design that optimises space within enclosures
Constructed with matte contact area plating for reduced friction during mating
Provides excellent mating retention characteristics for reliable connection
Enabled for high current ratings up to 3 A to support demanding applications
