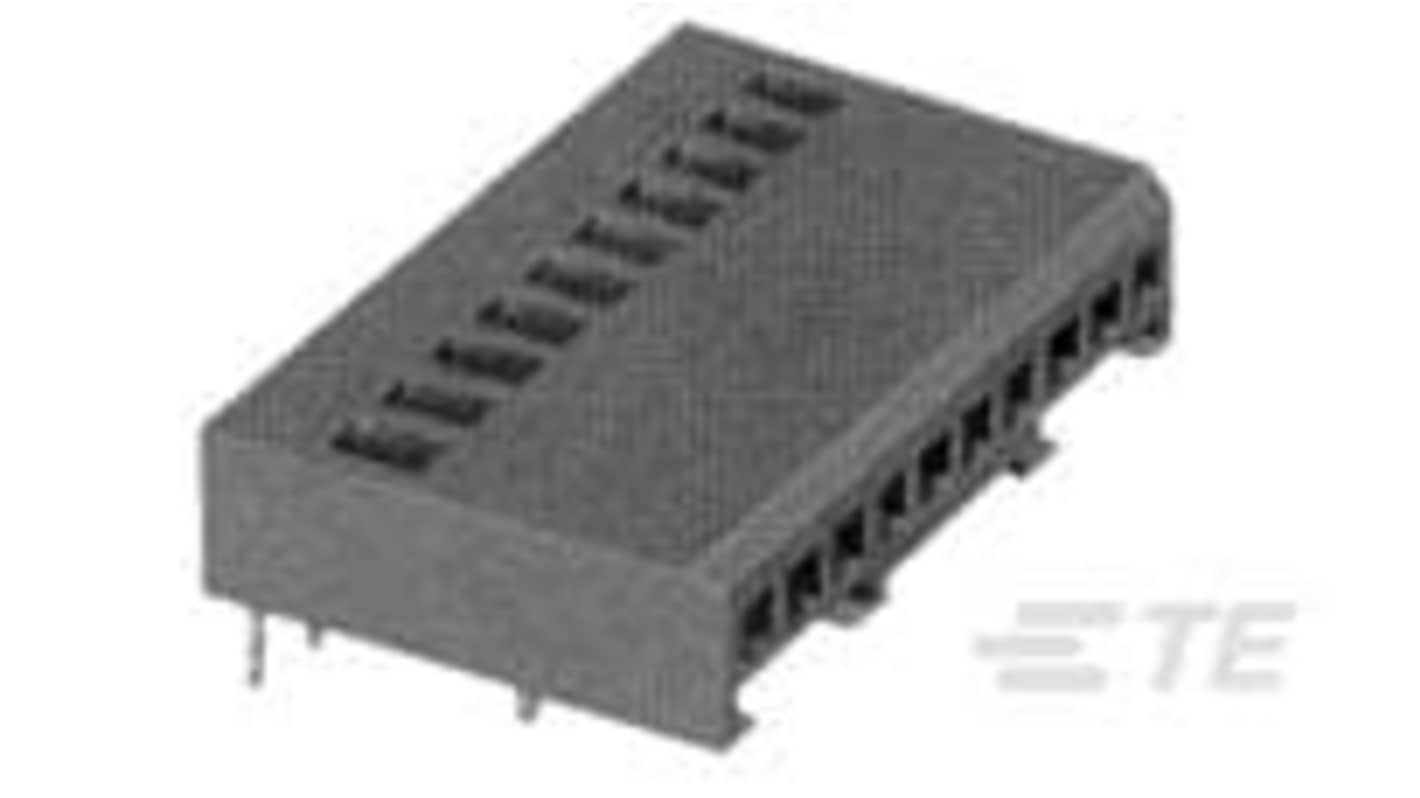

TE Connectivity AMPMODU Series Right Angle Board PCB Header, 20 Contact(s), 1.27 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 tube of 50 units)*

£190.78

(exc. VAT)

£228.94

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 +£190.78£3.816

*price indicative

RS Stock No.:
478-976
Mfr. Part No.:
104196-5
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Series

AMPMODU

Product Type

PCB Header

Current

4A

Pitch

1.27mm

Housing Material

Thermoplastic

Number of Contacts

20

Number of Rows

1

Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Mount Type

Board

Connector System

Board-to-Board

Contact Material

Copper Alloy

Contact Plating

Gold

Termination Type

Solder

Row Pitch

1.27mm

Minimum Operating Temperature

65°C

Tail Pin Length

2.54mm

Contact Gender

Female

Maximum Operating Temperature

105°C

Standards/Approvals

CSA LR7189, UL E28476

Voltage

30 V

Distrelec Product Id

304-53-629

Non Compliant

COO (Country of Origin):
MX
The TE Connectivity PCB Mount Receptacle is expertly designed for optimal performance in board-to-board applications. This right-angle connector offers a streamlined solution for efficient space utilization on printed circuit boards, combining a compact profile with a robust connection. With 20 positions and a precise 1.27 mm centerline, it efficiently manages signal pathways while providing reliable electrical integrity. Its durable construction features gold plating, ensuring minimal contact resistance and enhanced durability for demanding environments. The receptacle is also capable of withstanding extreme operating conditions, making it suitable for various industrial applications. Ideal for integration within AMPMODU System 50, this component meets rigorous industry standards, ensuring compatibility and reliability for your electronic designs.

Designed for board-to-board connectivity with a right-angle orientation

Accommodates up to 20 positions for flexible connectivity options

Features gold plating to enhance conductivity and longevity

Constructed from durable thermoplastic for improved resilience

Capable of operating in temperatures ranging from -65 to 105 °C

Compatible with wave soldering processes for ease of assembly

Boasts a retention type design for secure mounting on PCBs

Low halogen content offers environmentally conscious manufacturing

Compliant with international safety standards, ensuring peace of mind
