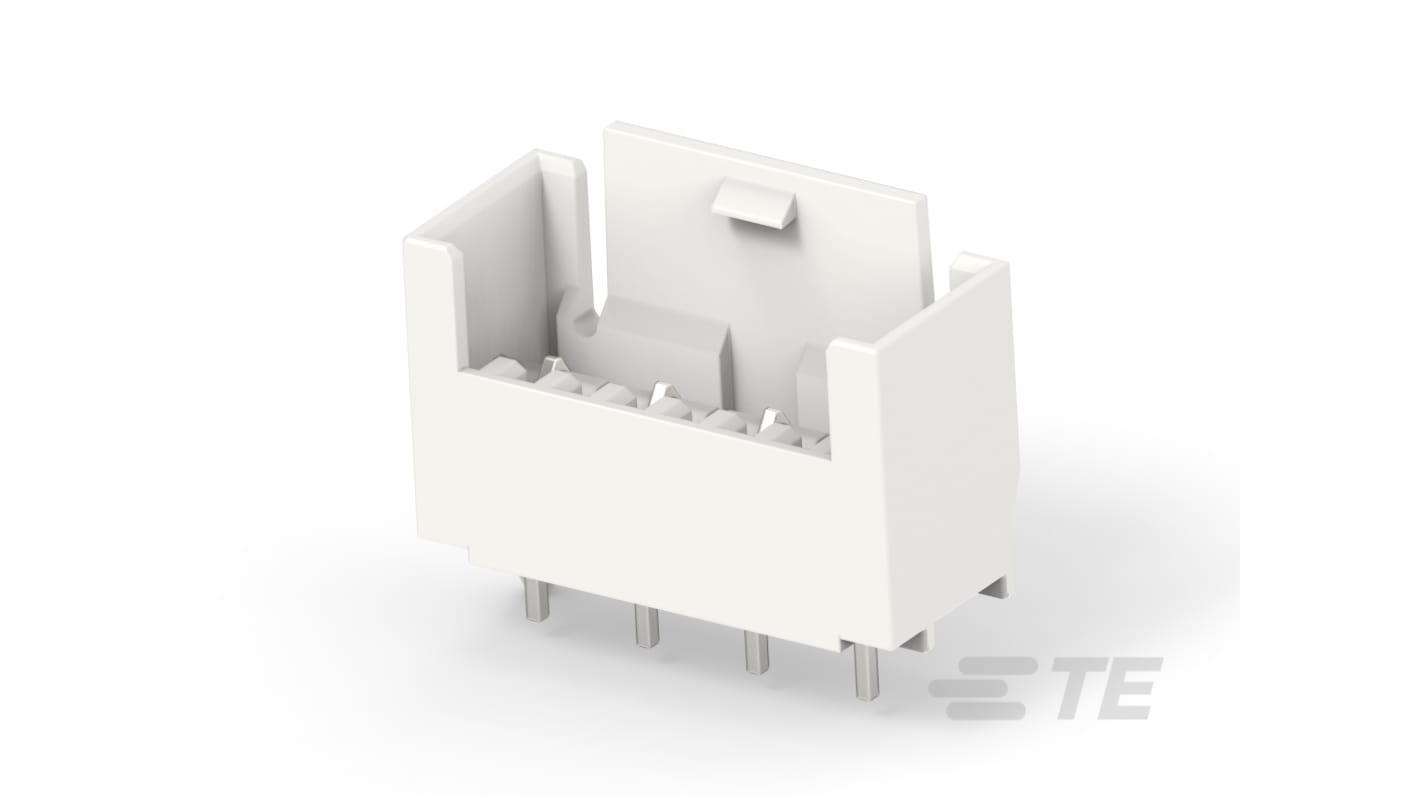

TE Connectivity RAST Series Vertical Board PCB Header, 7 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 478-952
- Mfr. Part No.:
- 1-1971923-7
- Brand:
- TE Connectivity
Subtotal (1 pack of 270 units)*
£191.78
(exc. VAT)
£230.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £191.78 | £0.71 |
*price indicative
- RS Stock No.:
- 478-952
- Mfr. Part No.:
- 1-1971923-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | RAST | |
| Current | 6A | |
| Pitch | 2.5mm | |
| Housing Material | Nylon | |
| Number of Contacts | 7 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Silver | |
| Termination Type | Solder | |
| Row Pitch | 2.5mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 120°C | |
| Tail Pin Length | 2.9mm | |
| Standards/Approvals | UL, VDE | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-53-422 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series RAST | ||
Current 6A | ||
Pitch 2.5mm | ||
Housing Material Nylon | ||
Number of Contacts 7 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Material Copper Alloy | ||
Contact Plating Silver | ||
Termination Type Solder | ||
Row Pitch 2.5mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 120°C | ||
Tail Pin Length 2.9mm | ||
Standards/Approvals UL, VDE | ||
Voltage 250 V | ||
Distrelec Product Id 304-53-422 | ||
- COO (Country of Origin):
- US
The TE Connectivity PCB mount header offers a robust and efficient solution for wire-to-board applications, featuring a vertical orientation and fully shrouded design. Engineered with 7 positions, it ensures reliable connectivity in tight spaces while maintaining a compact footprint. The natural nylon housing provides resilience and durability, capable of operating within a wide temperature range of -40 to 120 °C. With a selection of premium materials, including silver-plated contacts, this component is designed for optimal electrical performance. Ideal for power circuit applications, it seamlessly integrates into various electronic systems, ensuring that connection integrity is preserved under demanding conditions. Enhanced by thoughtful mechanical alignment and retention features, this product is an excellent choice for both new designs and replacements in established systems.
Engineered for durability with a fully shrouded header type
Offers a reliable connection method through a robust through-hole solder termination
Designed with a high operating voltage capacity of 250 VAC
Features a compact design ideal for space-constrained applications
Incorporates nickel underplating for enhanced contact longevity
Utilizes locating posts for precise PCB mount alignment
Includes effective mating retention features to secure connections
Manufactured from halogen-containing materials for compliance with global standards
