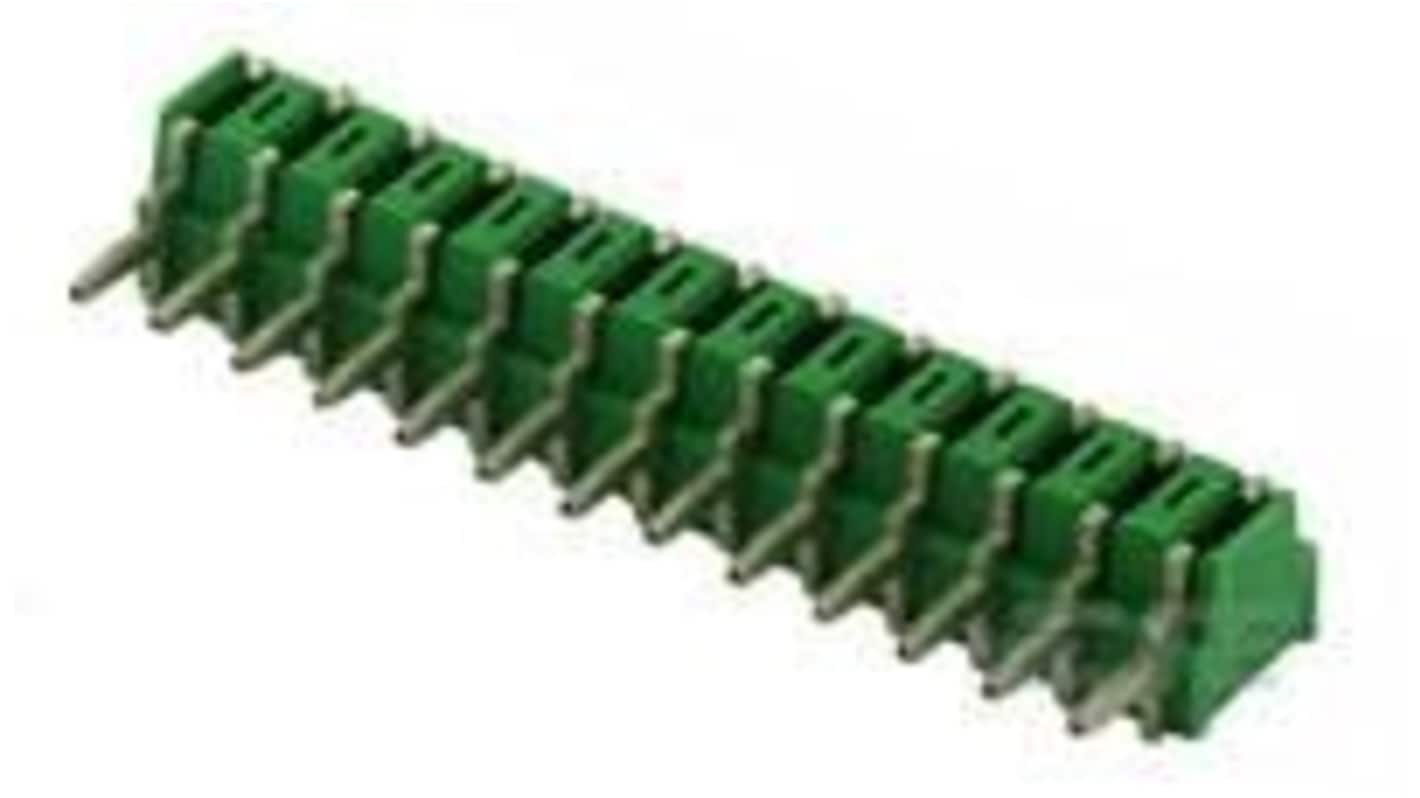

TE Connectivity 51647 Series Right Angle Board PCB Header, 6 Contact(s), 2.5 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 478-778
- Mfr. Part No.:
- 5164711-6
- Brand:
- TE Connectivity
Subtotal (1 box of 200 units)*
£175.10
(exc. VAT)
£210.12
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £175.10 | £0.876 |
*price indicative
- RS Stock No.:
- 478-778
- Mfr. Part No.:
- 5164711-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | 51647 | |
| Product Type | PCB Header | |
| Current | 7A | |
| Pitch | 2.5mm | |
| Number of Contacts | 6 | |
| Housing Material | Thermoplastic | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Board | |
| Connector System | Board-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Row Pitch | 2.5mm | |
| Minimum Operating Temperature | -40°C | |
| Tail Pin Length | 3.2mm | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Female | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | |
| Voltage | 354 V | |
| Distrelec Product Id | 304-54-221 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series 51647 | ||
Product Type PCB Header | ||
Current 7A | ||
Pitch 2.5mm | ||
Number of Contacts 6 | ||
Housing Material Thermoplastic | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Board | ||
Connector System Board-to-Board | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Row Pitch 2.5mm | ||
Minimum Operating Temperature -40°C | ||
Tail Pin Length 3.2mm | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Female | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | ||
Voltage 354 V | ||
Distrelec Product Id 304-54-221 | ||
- COO (Country of Origin):
- IN
The TE Connectivity PCB Mount Receptacle presents an innovative solution for board-to-board connections. Designed specifically for applications requiring reliable signal transmission, this right-angle connector accommodates six positions with a 2.5 mm centreline. Its robust construction, featuring tin plating and through-hole soldering, ensures durability in demanding environments. Operating under a wide temperature range, this receptacle is perfect for various circuit applications where space optimisation and reliability are paramount. With easy integration into your designs, this connector not only enhances the functionality of your electronics but also streamlines assembly processes, making it an ideal choice for manufacturers aiming to combine quality with efficiency.
Right-angle orientation facilitates compact layouts
Industry-standard dimensions enhance compatibility
Thermoplastic housing guarantees resistance against environmental factors
Signal application focus ensures optimal performance
PCB mount retention provides stable attachment
Polarising tab enables precise mating alignment
Wave solder capability simplifies manufacturing processes
Sealable configuration ensures protection from contaminants
