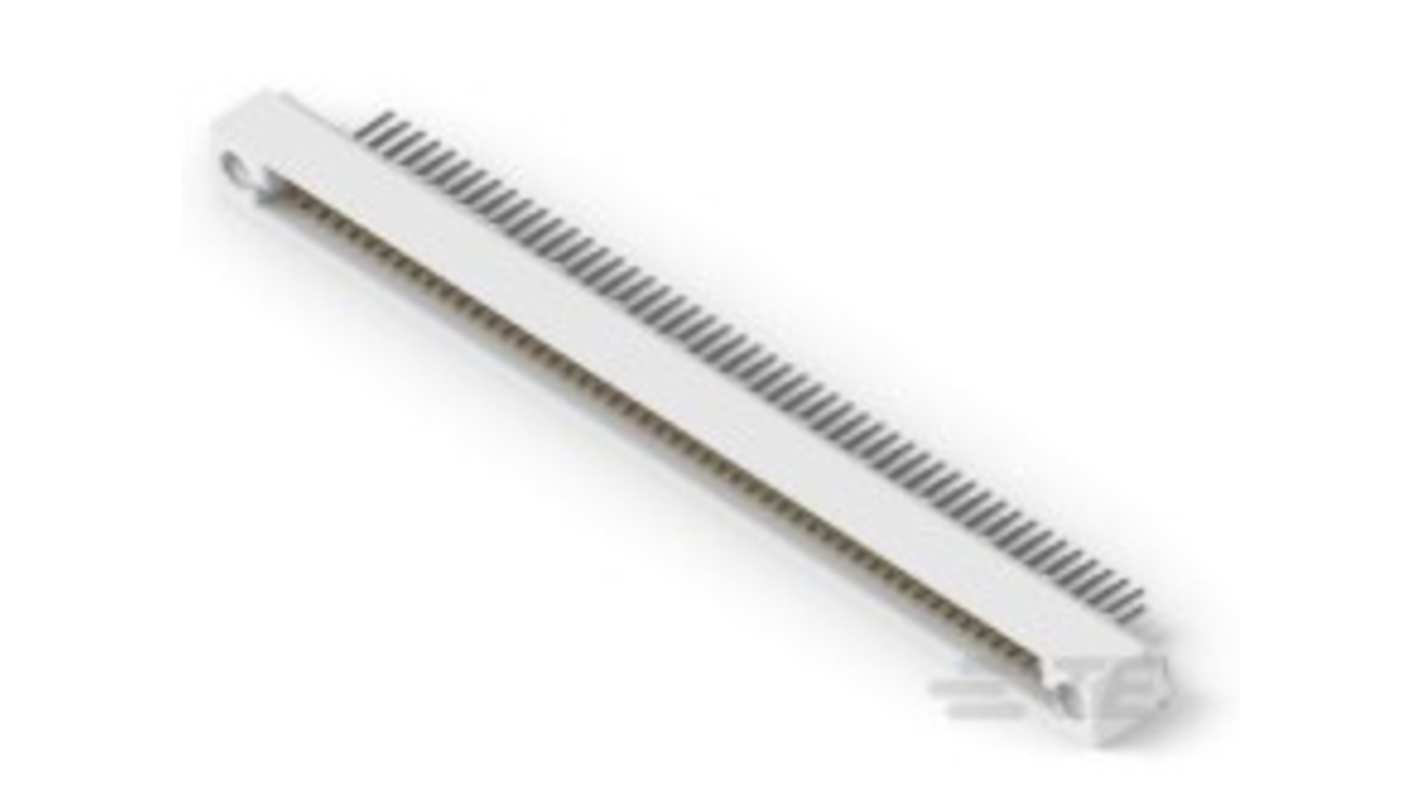

TE Connectivity 53244 Series Vertical Board PCB Header, 100 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 478-613
- Mfr. Part No.:
- 532446-9
- Brand:
- TE Connectivity
Subtotal (1 tube of 8 units)*
£168.08
(exc. VAT)
£201.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £168.08 | £21.01 |
*price indicative
- RS Stock No.:
- 478-613
- Mfr. Part No.:
- 532446-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | 53244 | |
| Product Type | PCB Header | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 100 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Board-to-Board | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 65°C | |
| Row Pitch | 2.54mm | |
| Maximum Operating Temperature | 125°C | |
| Tail Pin Length | 6.35mm | |
| Standards/Approvals | UL 94 V-0 | |
| Distrelec Product Id | 304-54-254 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series 53244 | ||
Product Type PCB Header | ||
Pitch 2.54mm | ||
Current 3A | ||
Housing Material Thermoplastic | ||
Number of Contacts 100 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Board-to-Board | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Termination Type Solder | ||
Minimum Operating Temperature 65°C | ||
Row Pitch 2.54mm | ||
Maximum Operating Temperature 125°C | ||
Tail Pin Length 6.35mm | ||
Standards/Approvals UL 94 V-0 | ||
Distrelec Product Id 304-54-254 | ||
- COO (Country of Origin):
- US
The TE Connectivity PCB Mount Header is designed to facilitate robust board-to-board connections with its vertically oriented configuration, featuring 100 positions housed within a fully shrouded assembly. Crafted for precision, this connector offers a 2.54 mm centreline that enhances layout versatility and compatibility in various circuit designs. This product prioritises electrical integrity with gold plating on mating areas, ensuring optimal signal transmission and minimal contact resistance. Furthermore, its through-hole press-fit termination method simplifies the assembly process, providing secure and reliable connectivity in demanding applications. Built to operate under challenging conditions, this connector boasts a wide temperature range and excellent insulation resistance, making it suitable for diverse operational environments.
Incorporates gold (Au) plating on contact mating areas for superior performance
Designed with a polarized mating alignment feature to enhance usability
Constructed from durable thermoplastic housing for added resilience
Operates effectively in a wide temperature range from -65 to 125 °C
Employs a through-hole press-fit termination method for secure mounting
Meets UL 94V-0 flammability rating for enhanced safety standards
