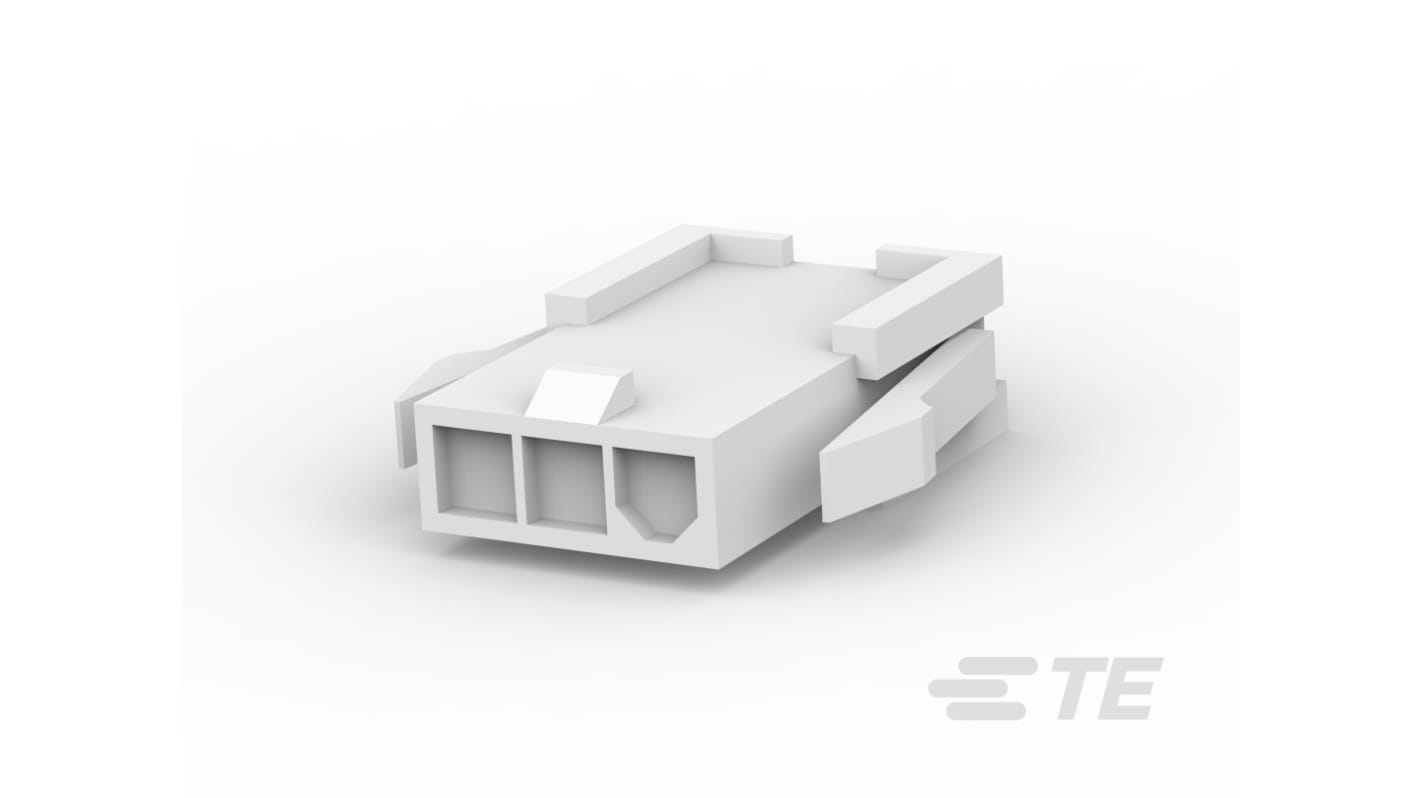

TE Connectivity VAL-U-LOK Series Right Angle Panel PCB Header, 3 Contact(s), 4.2 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 477-566
- Mfr. Part No.:
- 1586101-3
- Brand:
- TE Connectivity
Subtotal (1 bag of 1000 units)*
£214.74
(exc. VAT)
£257.69
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £214.74 | £0.215 |
*price indicative
- RS Stock No.:
- 477-566
- Mfr. Part No.:
- 1586101-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | VAL-U-LOK | |
| Pitch | 4.2mm | |
| Housing Material | Nylon | |
| Number of Contacts | 3 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Panel | |
| Connector System | Wire-to-Wire | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Crimp | |
| Row Pitch | 4.2mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CSA, RoHS, UL | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-58-164 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series VAL-U-LOK | ||
Pitch 4.2mm | ||
Housing Material Nylon | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Panel | ||
Connector System Wire-to-Wire | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Minimum Operating Temperature -40°C | ||
Termination Type Crimp | ||
Row Pitch 4.2mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CSA, RoHS, UL | ||
Voltage 60 V | ||
Distrelec Product Id 304-58-164 | ||
- COO (Country of Origin):
- CN
The TE Connectivity housing connector represents a robust solution designed for versatile applications across wire-to-panel and wire-to-wire configurations. Engineered with precision, it features a 3-position layout ensuring reliable connectivity and a compact design, making it ideal for various electrical assemblies. The connector's durable nylon 66 material provides excellent resistance to environmental factors, ensuring long-lasting performance. Compliance with global safety standards such as UL 94V-2 highlights its reliability in professional settings. With an operating voltage of 600 VAC and a temperature range suited for extreme conditions, this connector is a dependable choice for power and signal circuit applications, enhancing the efficiency of your electrical systems.
Natural colour finish that blends seamlessly into your designs
Compact dimensions that facilitate easy integration into tight spaces
Crimp termination method enables secure connections to cables
Inline contact layout supports straightforward installation
Designed for panel mounting, providing versatility in application
Low insertion force requirement simplifies the mating process
Capacity to withstand a wide operating temperature range for diverse applications
Defined circuit identification feature aids in easy recognition of connections
Low halogen content enhances its eco-friendliness and safety in usage
