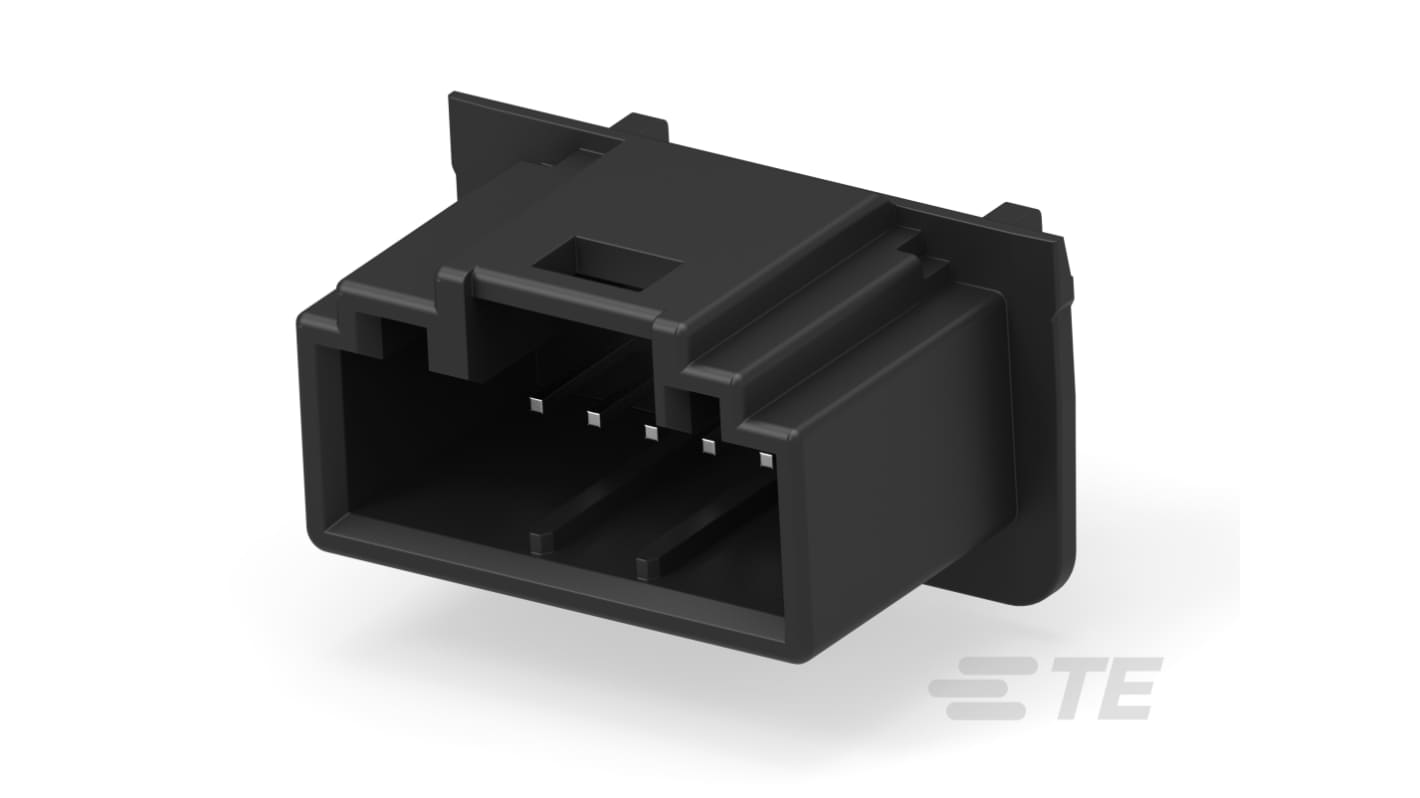

TE Connectivity MQS Series Horizontal Through Hole PCB Header, 6 Contact(s), 2.85 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 477-498
- Mfr. Part No.:
- 1394090-1
- Brand:
- TE Connectivity
Subtotal (1 tray of 100 units)*
£171.69
(exc. VAT)
£206.03
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £171.69 | £1.717 |
*price indicative
- RS Stock No.:
- 477-498
- Mfr. Part No.:
- 1394090-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | MQS | |
| Pitch | 2.85mm | |
| Number of Contacts | 6 | |
| Number of Rows | 1 | |
| Orientation | Horizontal | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Through Hole | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Row Pitch | 2.85mm | |
| Maximum Operating Temperature | 240°C | |
| Standards/Approvals | 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | |
| Distrelec Product Id | 304-51-520 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series MQS | ||
Pitch 2.85mm | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Orientation Horizontal | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Through Hole | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Row Pitch 2.85mm | ||
Maximum Operating Temperature 240°C | ||
Standards/Approvals 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU | ||
Distrelec Product Id 304-51-520 | ||
- COO (Country of Origin):
- DE
The TE Connectivity PCB Mount Header is expertly designed for horizontal wire-to-board applications, featuring six positions that ensure reliable connections within tight spaces. Its fully shrouded construction offers superior protection against environmental factors, while the tin plating guarantees optimal conductivity. The 2.85 mm centreline pitch allows for efficient utilisation of PCB real estate, making it an ideal choice for modern electronic designs. The through-hole solder termination method simplifies installation, ensuring durability and stability. With its signal circuit application, this connector addresses the needs of both performance and reliability, making it suitable for a variety of projects across multiple industries.
Rectangular connector shape enhances compatibility with various PCB layouts
Locking interface provides secure mating, preventing accidental disconnections
Low halogen content ensures compliance with strict environmental regulations
Packaging quantity of 432 facilitates bulk purchasing for larger projects
Mating alignment features ensure ease of use during assembly
