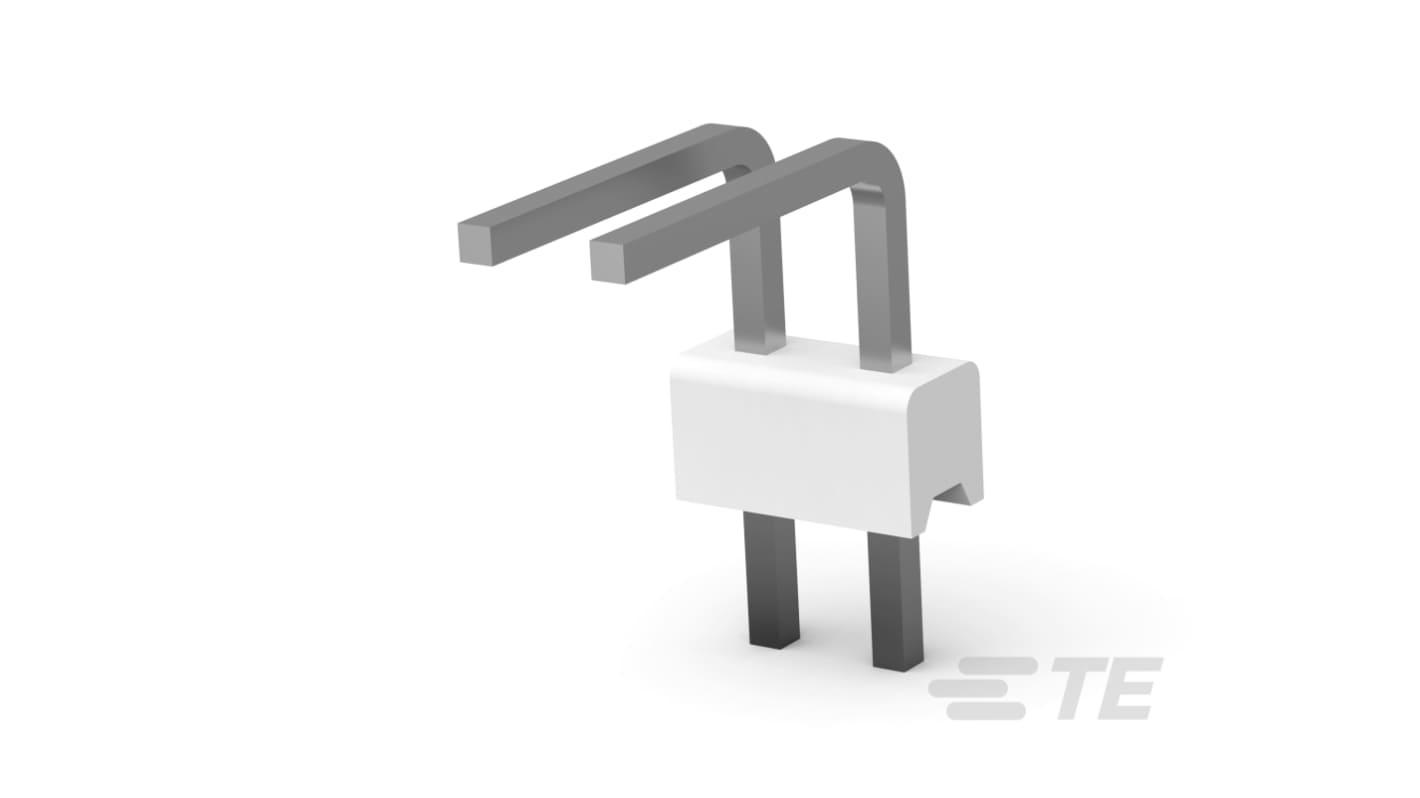

TE Connectivity MTA-100 Series Right Angle Board PCB Header, 2 Contact(s), 2.54 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 477-184
- Mfr. Part No.:
- 3-644457-2
- Brand:
- TE Connectivity
Subtotal (1 pack of 1000 units)*
£189.96
(exc. VAT)
£227.95
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £189.96 | £0.19 |
*price indicative
- RS Stock No.:
- 477-184
- Mfr. Part No.:
- 3-644457-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | MTA-100 | |
| Product Type | PCB Header | |
| Current | 5A | |
| Pitch | 2.54mm | |
| Housing Material | Fibreglass Polyester | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 2.79mm | |
| Mating Pin Length | 6.6mm | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-50-686 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series MTA-100 | ||
Product Type PCB Header | ||
Current 5A | ||
Pitch 2.54mm | ||
Housing Material Fibreglass Polyester | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 2.79mm | ||
Mating Pin Length 6.6mm | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
Distrelec Product Id 304-50-686 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is expertly designed for right-angle wire-to-board applications. With a two-position, 2.54 mm centreline configuration, it offers an efficient solution for compact circuit layouts. Its breakaway feature enhances versatility, allowing for tailored configurations according to your specific needs. The durable construction, combined with a natural polyester housing material, ensures reliable performance in demanding environments. Operating at high voltages of up to 250 VAC, this connector is suitable for a wide range of signal applications. The product’s low halogen content and compliance with multiple regulatory standards make it a responsible choice for modern electronics. Engineered for ease of use, the connector also provides a straightforward through-hole solder termination method, simplifying assembly processes.
Right-angle orientation optimises space in compact designs
Breakaway functionality allows for flexible configurations in assembly
Constructed from durable polyester, ensuring long-lasting robustness
Features a simple through-hole termination method for effortless PCB soldering
Electrical compatibility with high voltage applications enhances versatility
Low halogen materials promote environmentally responsible usage
Polarisation aids correct mating, reducing installation errors
Supported by various industry compliance and standards for assured quality
