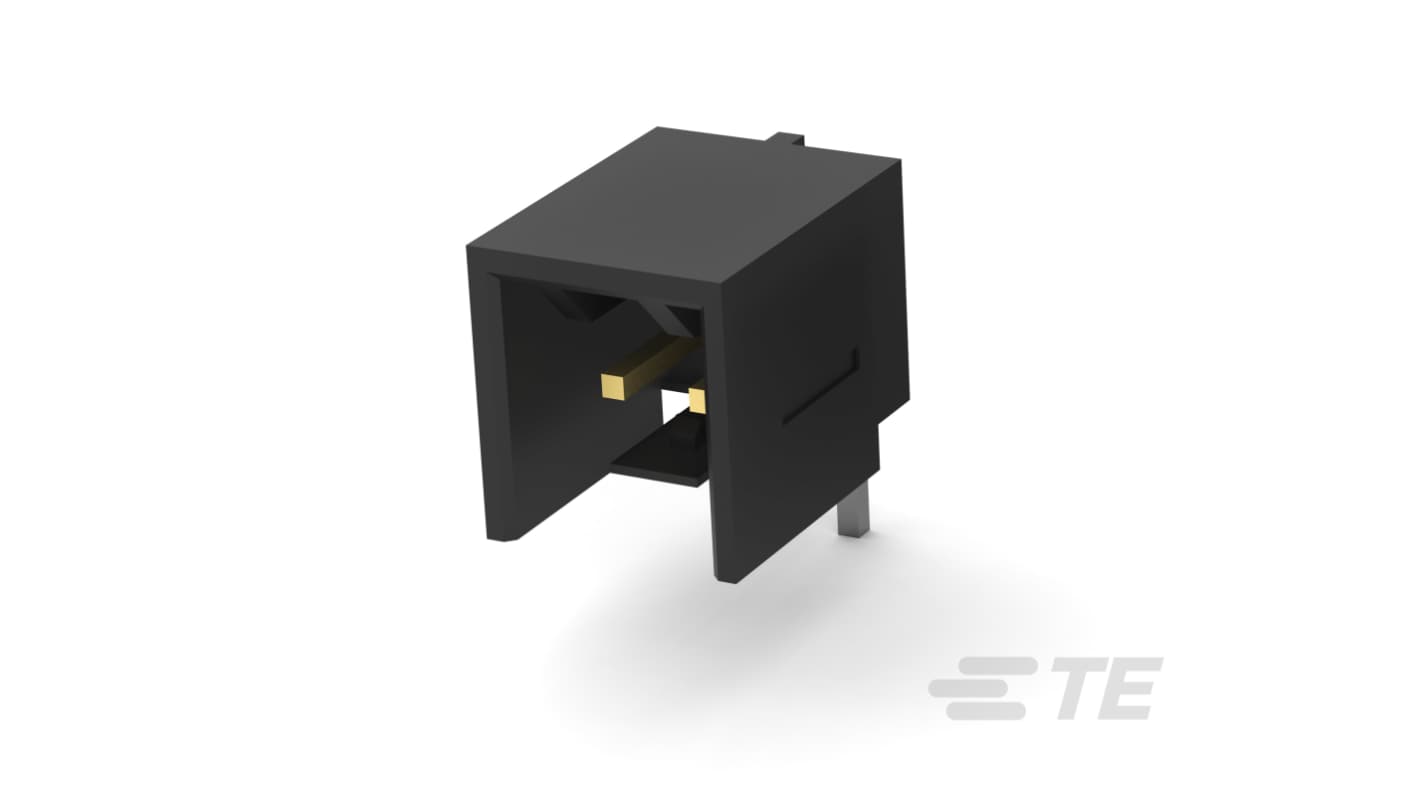

TE Connectivity MTA-100 Series Right Angle Board PCB Header, 2 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 474-850
- Mfr. Part No.:
- 2-644489-2
- Brand:
- TE Connectivity
Subtotal (1 pack of 150 units)*
£200.05
(exc. VAT)
£240.06
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £200.05 | £1.334 |
*price indicative
- RS Stock No.:
- 474-850
- Mfr. Part No.:
- 2-644489-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | MTA-100 | |
| Pitch | 2.54mm | |
| Current | 5A | |
| Housing Material | Fibreglass Polyester | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Row Pitch | 2.54mm | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.3mm | |
| Standards/Approvals | RoHS | |
| Mating Pin Length | 5.1mm | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-53-845 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series MTA-100 | ||
Pitch 2.54mm | ||
Current 5A | ||
Housing Material Fibreglass Polyester | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Row Pitch 2.54mm | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.3mm | ||
Standards/Approvals RoHS | ||
Mating Pin Length 5.1mm | ||
Voltage 250 V | ||
Distrelec Product Id 304-53-845 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB mount header is expertly engineered to ensure reliable wire-to-board connections in your electronic designs. Designed with a right-angle orientation and fully shrouded housing, it optimises space within your projects while maintaining robust performance. The fully shrouded design enhances durability, reducing the risk of misalignment during insertion. With a pitch of 2.54 mm, this connector accommodates versatile applications, making it a perfect choice for PCB assemblies. It also features gold-plated contacts that boost conductivity and longevity, thereby ensuring stable electrical connections over time. The operating temperature range extends from -55 to 105 °C, providing versatility for various environments. With easy through-hole soldering and compliance with rigorous standards, this connector is an ideal solution for both industrial and consumer applications.
Designed for superior signal integrity in electronic applications
Right angle orientation allows for efficient space management on PCBs
Fully shrouded design prevents unwanted contact and ensures reliability
Gold plated contacts improve electrical performance and longevity
Compatible with various PCB thicknesses enhancing versatility
Easy to implement with through hole solder termination
High quality polyester housing is built to withstand demanding environments
Mating retention features ensure a solid connection during use
Polarisation assists in correct alignment and prevents errors during installation
Meets stringent industry standards for safety and performance
