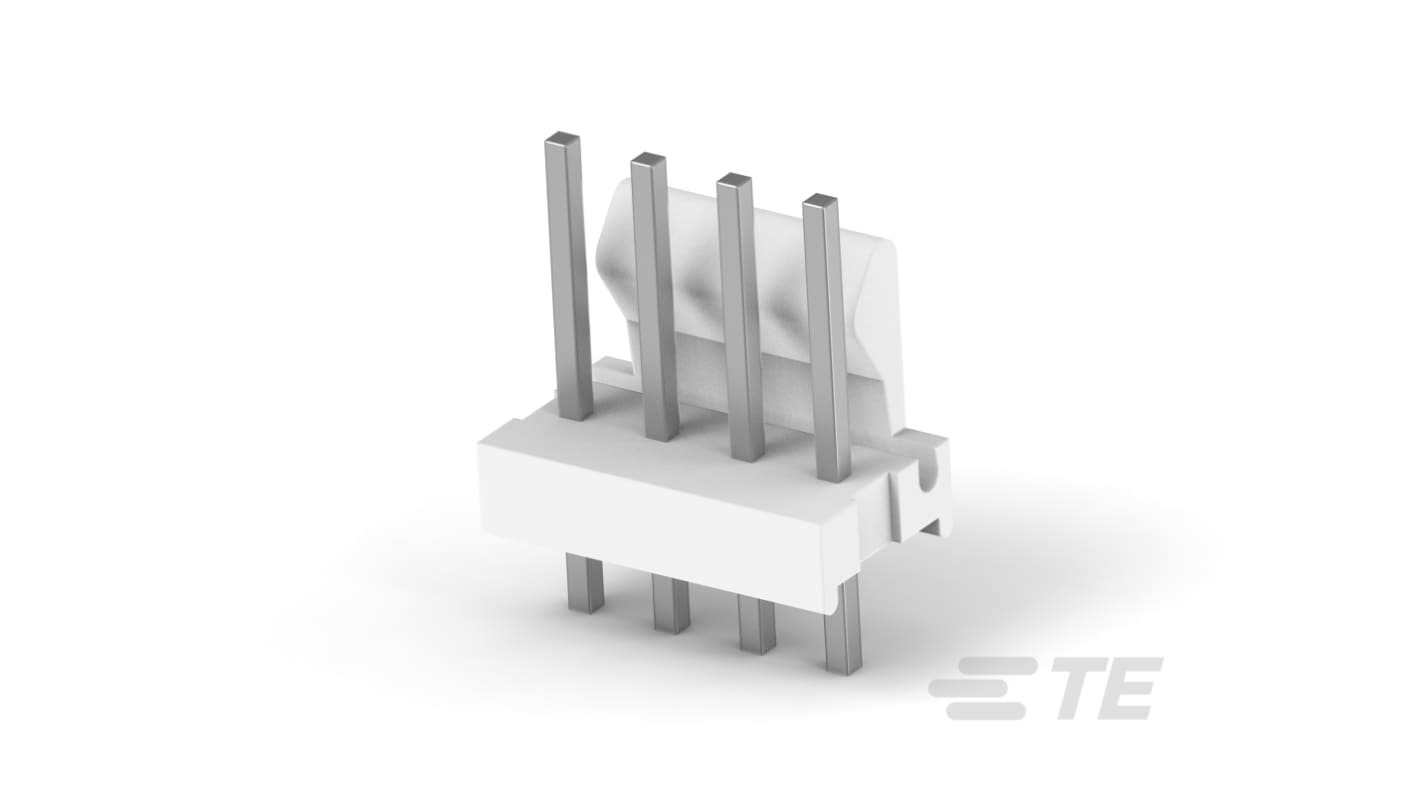

TE Connectivity MTA-100 Series Vertical Board PCB Header, 4 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 474-708
- Mfr. Part No.:
- 2298196-4
- Brand:
- TE Connectivity
Subtotal (1 bag of 1500 units)*
£166.00
(exc. VAT)
£199.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £166.00 | £0.111 |
*price indicative
- RS Stock No.:
- 474-708
- Mfr. Part No.:
- 2298196-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | MTA-100 | |
| Product Type | PCB Header | |
| Pitch | 2.54mm | |
| Current | 5A | |
| Housing Material | Polyamide 66 Fibreglass 20% | |
| Number of Contacts | 4 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 2.54mm | |
| Contact Gender | Male | |
| Tail Pin Length | 2.69mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Mating Pin Length | 7.49mm | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-53-895 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series MTA-100 | ||
Product Type PCB Header | ||
Pitch 2.54mm | ||
Current 5A | ||
Housing Material Polyamide 66 Fibreglass 20% | ||
Number of Contacts 4 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 2.54mm | ||
Contact Gender Male | ||
Tail Pin Length 2.69mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Mating Pin Length 7.49mm | ||
Voltage 250 V | ||
Distrelec Product Id 304-53-895 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header designed for wire-to-board applications offers a highly reliable solution for connecting circuit boards. Its vertical orientation and partially shrouded design ensure ease of installation while providing robust conductivity and mechanical stability. Crafted to support a 4-position configuration with a 2.54 mm centreline, this header is particularly suited for efficient signal transmission in compact electronic systems. Constructed from durable materials, it is built to withstand operational stresses and temperature variations in a range of environments. As part of the MTA 100 series, this component is both dependable and versatile, making it ideal for numerous applications across various industries.
Vertical orientation simplifies PCB integration
Partially shrouded design enhances user safety during assembly
Built with high quality materials for superior durability
Supports efficient signal transmission in compact formats
Nickel underplating provides excellent corrosion resistance
Matte contact finishes optimise electrical performance
Polarisation feature ensures correct mating alignment
Robust retention capabilities prevent disengagement during use
Suitable for a broad operating temperature range
Compliant with various industry standards for reliable use
