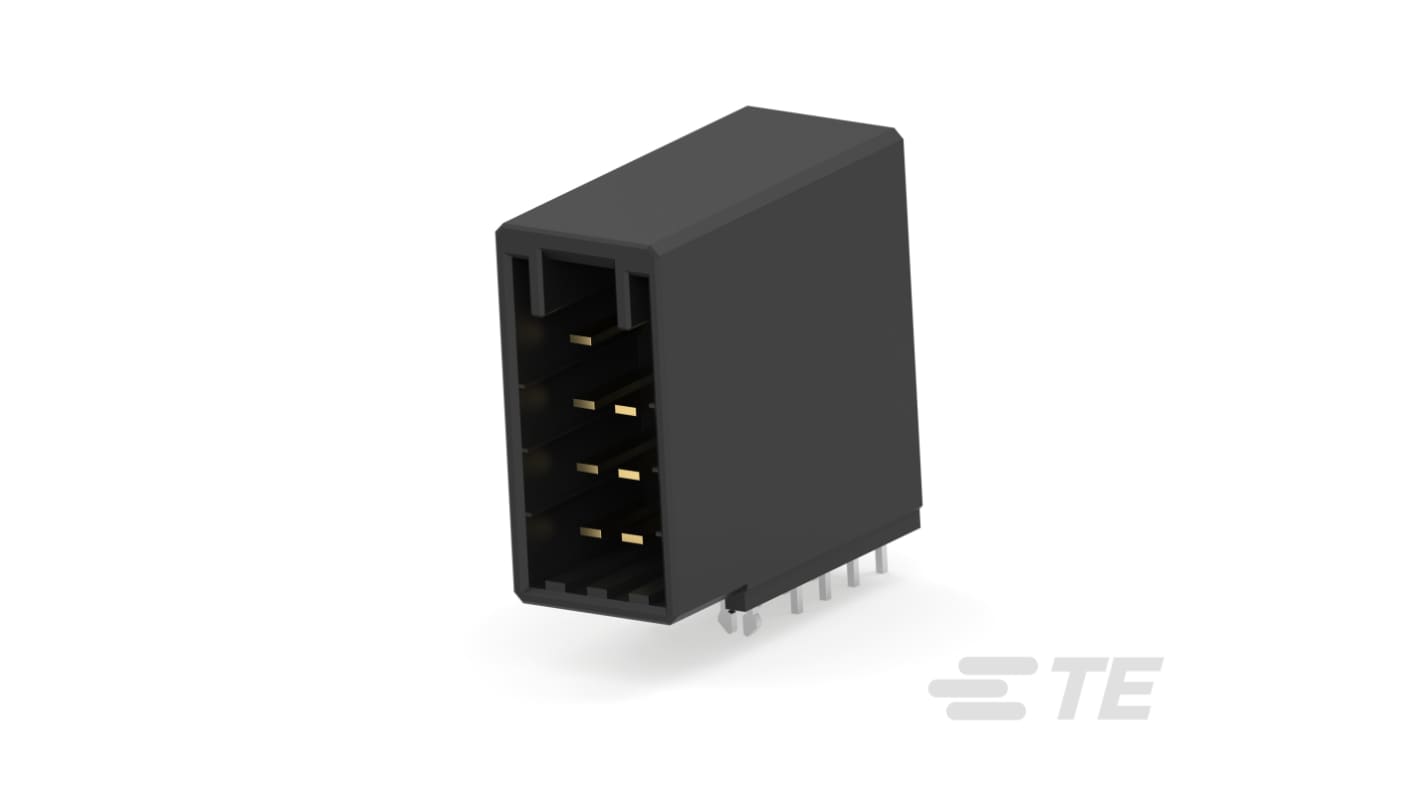

TE Connectivity Dynamic 3000 Series Horizontal PCB PCB Header, 12 Contact(s), 3.81 mm Pitch, 4 Row(s), Shrouded
- RS Stock No.:
- 472-384
- Mfr. Part No.:
- 4-178216-2
- Brand:
- TE Connectivity
Subtotal (1 tube of 42 units)*
£228.35
(exc. VAT)
£274.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £228.35 | £5.437 |
*price indicative
- RS Stock No.:
- 472-384
- Mfr. Part No.:
- 4-178216-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Dynamic 3000 | |
| Product Type | PCB Header | |
| Current | 8A | |
| Pitch | 3.81mm | |
| Housing Material | Fibreglass Polyester | |
| Number of Contacts | 12 | |
| Number of Rows | 4 | |
| Orientation | Horizontal | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | PCB | |
| Connector System | Wire-to-Board | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 3.81mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | |
| Distrelec Product Id | 304-54-091 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Dynamic 3000 | ||
Product Type PCB Header | ||
Current 8A | ||
Pitch 3.81mm | ||
Housing Material Fibreglass Polyester | ||
Number of Contacts 12 | ||
Number of Rows 4 | ||
Orientation Horizontal | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type PCB | ||
Connector System Wire-to-Board | ||
Contact Plating Gold | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 3.81mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | ||
Distrelec Product Id 304-54-091 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is engineered for optimal reliability, allowing for seamless wire-to-board connections. Featuring a fully shrouded design and a configuration suitable for horizontal mounting, it caters specifically to applications requiring a secure and robust connection. Designed within the esteemed dynamic 3000 series, this connector boasts a compact 3.81 mm pitch ideal for high-density PCB layouts. The product’s gold-plated contacts ensure exceptional conductivity while preventing corrosion and wear over time. With its ability to accommodate 12 positions and 4 rows, this header provides versatility for various electronic assemblies. Its durable construction is built to withstand a broad operating temperature range, making it effective in diverse environmental conditions.
Engineered for high-density applications with a compact 3.81 mm pitch
Fully shrouded header design enhances connection stability and protection
Resilient polyester GF housing material ensures long-term durability
Gold plating on contacts provides superior conductivity and corrosion resistance
Allows for easy installation via through-hole soldering
Supports a maximum current rating of 8 A for reliable power delivery
Designed with mating alignment features for straightforward assembly
Compliant with leading industry standards for safety and reliability
Offers packaging options in boxes or tubes to suit varying inventory needs
