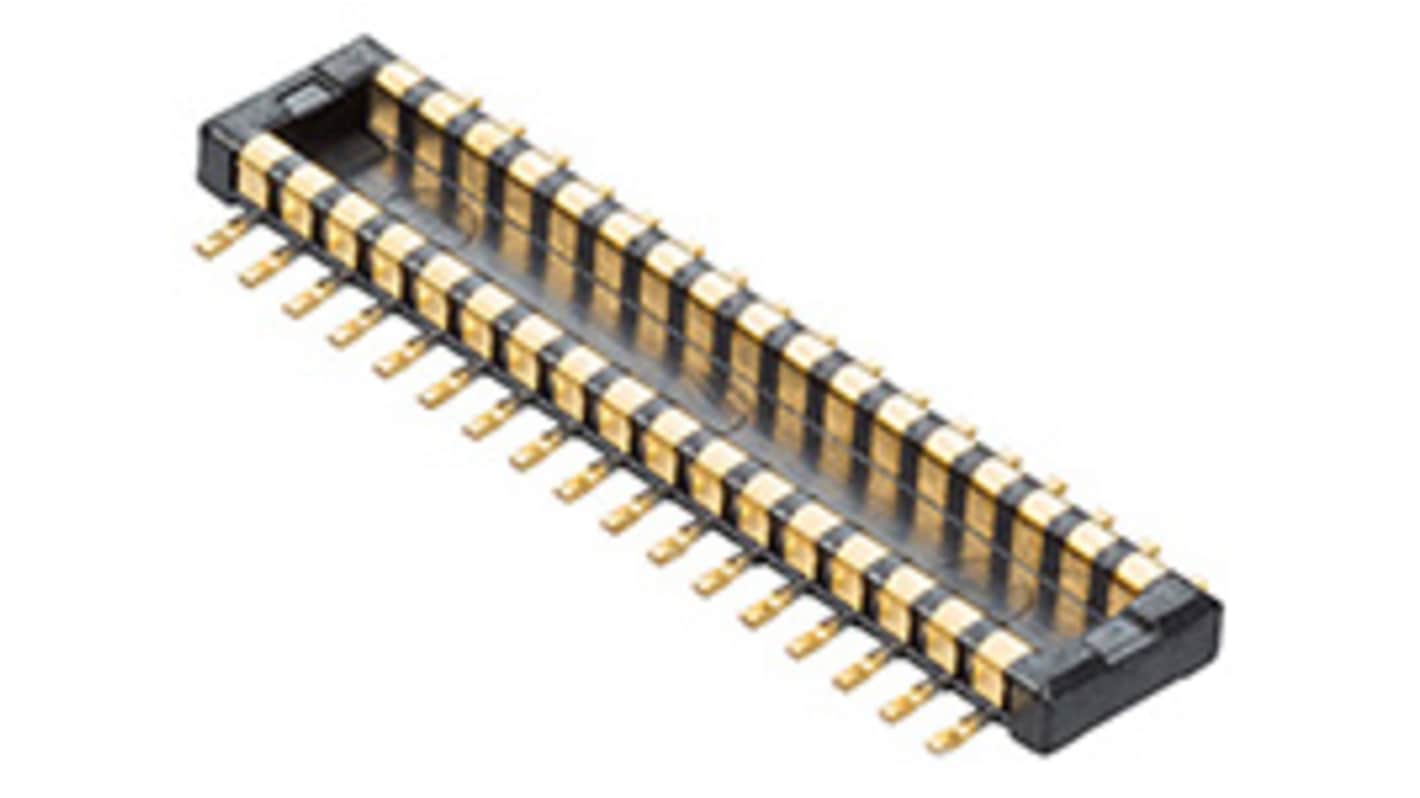

Molex 504622 Series Vertical Board PCB Header, 40 Contact(s), 0.35 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 472-144
- Mfr. Part No.:
- 504622-4010
- Brand:
- Molex
Subtotal (1 reel of 400 units)*
£196.90
(exc. VAT)
£236.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £196.90 | £0.492 |
*price indicative
- RS Stock No.:
- 472-144
- Mfr. Part No.:
- 504622-4010
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 504622 | |
| Product Type | PCB Header | |
| Current | 0.3A | |
| Pitch | 0.35mm | |
| Number of Contacts | 40 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Termination Type | Surface Mount | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 0.35mm | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS Compliant | |
| Voltage | 50 V | |
| Distrelec Product Id | 304-57-325 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 504622 | ||
Product Type PCB Header | ||
Current 0.3A | ||
Pitch 0.35mm | ||
Number of Contacts 40 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Board-to-Board | ||
Mount Type Board | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Termination Type Surface Mount | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 0.35mm | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS Compliant | ||
Voltage 50 V | ||
Distrelec Product Id 304-57-325 | ||
- COO (Country of Origin):
- JP
The TE Connectivity Board-to-Board Plug 0.35mm Pitch SSB6 Standard Series is a high-density connector designed for compact electronic applications. It features 40 circuits with a 0.60mm mated height and a 2.00mm mated width, making it ideal for space-constrained designs. This plug ensures reliable electrical performance and secure mechanical engagement, suitable for various consumer electronics.
RoHS compliant
Low halogen
