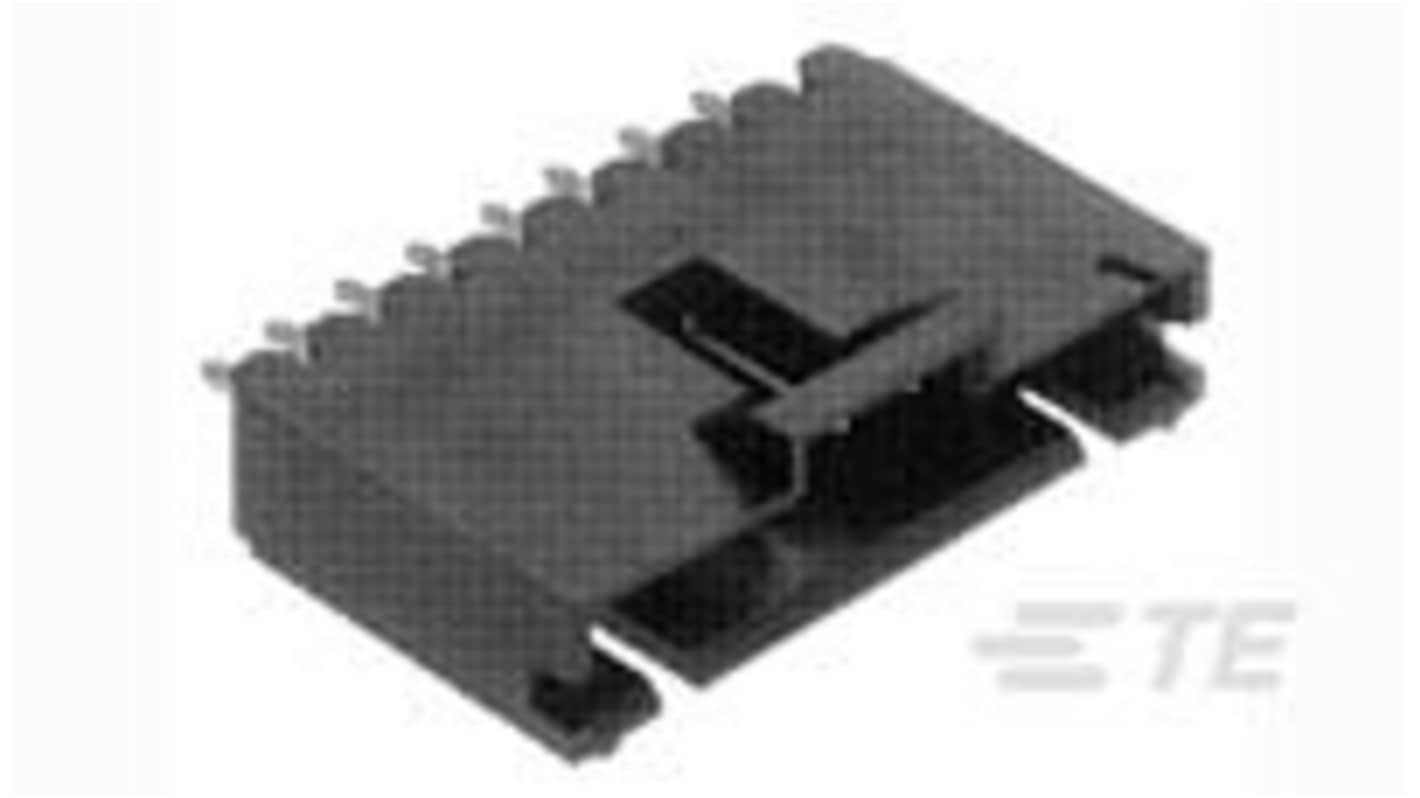

TE Connectivity AMPMODU Series Vertical Board PCB Header, 12 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 471-891
- Mfr. Part No.:
- 1-103735-1
- Brand:
- TE Connectivity
Subtotal (1 tube of 112 units)*
£175.76
(exc. VAT)
£210.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £175.76 | £1.569 |
*price indicative
- RS Stock No.:
- 471-891
- Mfr. Part No.:
- 1-103735-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | AMPMODU | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 12 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 65°C | |
| Row Pitch | 2.54mm | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Tail Pin Length | 3.3mm | |
| Standards/Approvals | CSA LR7189, UL 94V-0, UL E28476 | |
| Mating Pin Length | 5.84mm | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-48-108 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series AMPMODU | ||
Pitch 2.54mm | ||
Current 3A | ||
Housing Material Thermoplastic | ||
Number of Contacts 12 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Termination Type Solder | ||
Minimum Operating Temperature 65°C | ||
Row Pitch 2.54mm | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Tail Pin Length 3.3mm | ||
Standards/Approvals CSA LR7189, UL 94V-0, UL E28476 | ||
Mating Pin Length 5.84mm | ||
Voltage 60 V | ||
Distrelec Product Id 304-48-108 | ||
Non Compliant
- COO (Country of Origin):
- MX
The TE Connectivity PCB Mount Header is a versatile interconnect solution designed for seamless wire-to-board connections in various electronic applications. Featuring a fully shrouded design, this connector boasts a compact 12-position configuration with a 2.54 mm centreline, making it ideal for space-constrained environments. Engineered for reliability, the header ensures a secure electrical connection through its through-hole solder termination method. The robust construction facilitates ease of installation, while the high-quality materials selected enhance the performance across a wide operating temperature range. This product is an essential choice for engineers seeking dependable connectivity solutions in demanding conditions.
Compact design optimised for space efficiency
Fully shrouded to provide protection against environmental factors
Reliable wire to board connection for improved signal integrity
Solder termination method enables strong lasting connections
Thermoplastic housing ensures longevity and durability
Mating retention mechanism enhances connection stability
