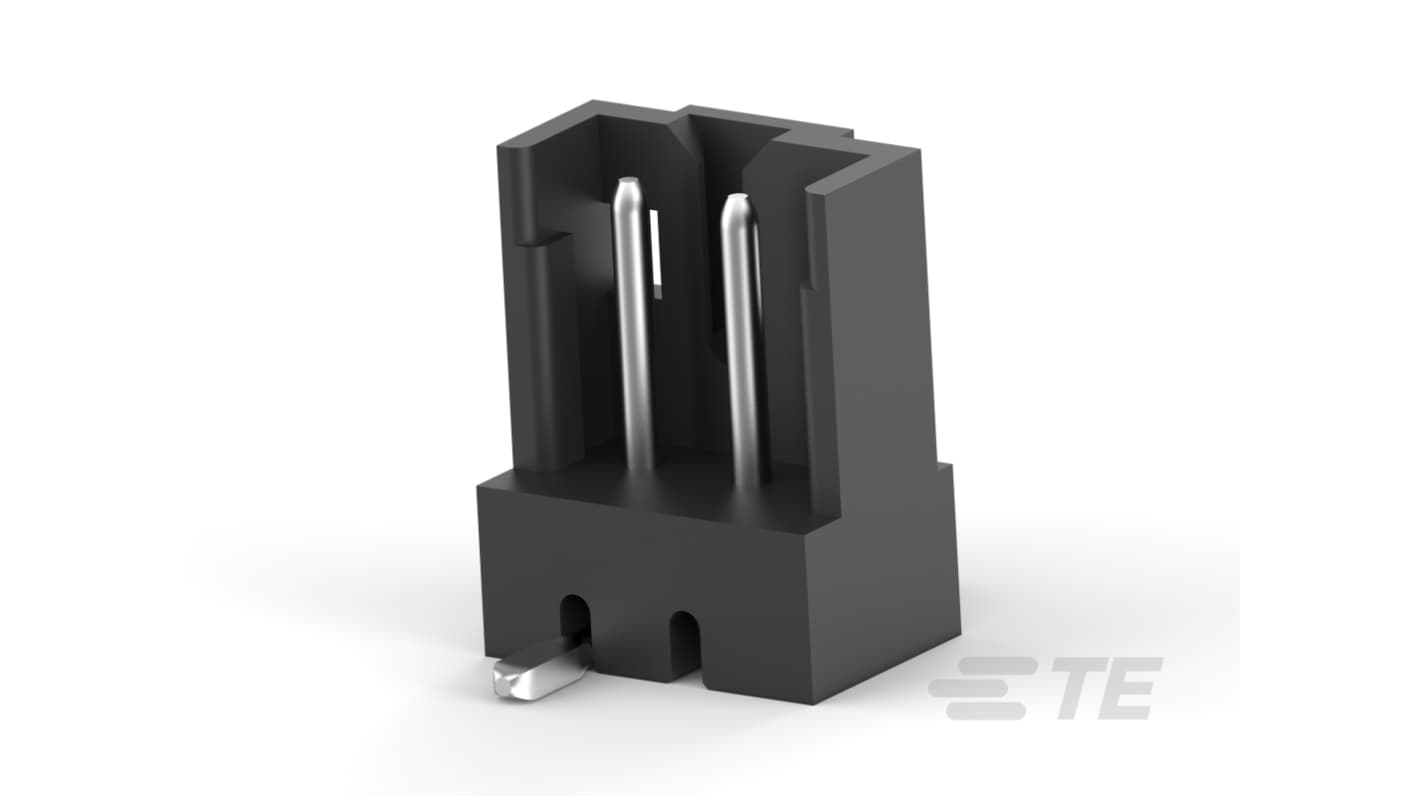

TE Connectivity AMP CT Series Vertical PCB PCB Header, 2 Contact(s), 2 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 470-827
- Mfr. Part No.:
- 292172-2
- Brand:
- TE Connectivity
Subtotal (1 tube of 560 units)*
£194.11
(exc. VAT)
£232.93
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £194.11 | £0.347 |
*price indicative
- RS Stock No.:
- 470-827
- Mfr. Part No.:
- 292172-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | AMP CT | |
| Pitch | 2mm | |
| Current | 4A | |
| Number of Contacts | 2 | |
| Housing Material | Polyamide 6T Fibreglass 30% | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | PCB | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Row Pitch | 2mm | |
| Termination Type | Surface Mount | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Mating Pin Length | 4.5mm | |
| Voltage | 125 V | |
| Distrelec Product Id | 304-50-604 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series AMP CT | ||
Pitch 2mm | ||
Current 4A | ||
Number of Contacts 2 | ||
Housing Material Polyamide 6T Fibreglass 30% | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type PCB | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Row Pitch 2mm | ||
Termination Type Surface Mount | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Mating Pin Length 4.5mm | ||
Voltage 125 V | ||
Distrelec Product Id 304-50-604 | ||
- COO (Country of Origin):
- JP
The TE Connectivity PCB mount header is designed for vertical wire-to-board applications, perfectly balancing performance and versatility. Ideal for compact designs, it features a 2-position configuration with a 2 mm centerline. The partially shrouded design allows for easier mating, while the tin-plated surface ensures reliable electrical connectivity. With a robust construction and capability to withstand a wide operating temperature range, this connector is a trusted solution in both power and signal applications. Its innovative design facilitates simplification in assembly processes and ensures consistent performance across various environments, making it a key choice for modern electronic applications.
Compact vertical orientation optimizes space within electronic devices
Partially shrouded design enhances mating accuracy and stability
Compatible with a standard surface mount process for efficient manufacturing
Robust metal construction enhances durability and longevity
