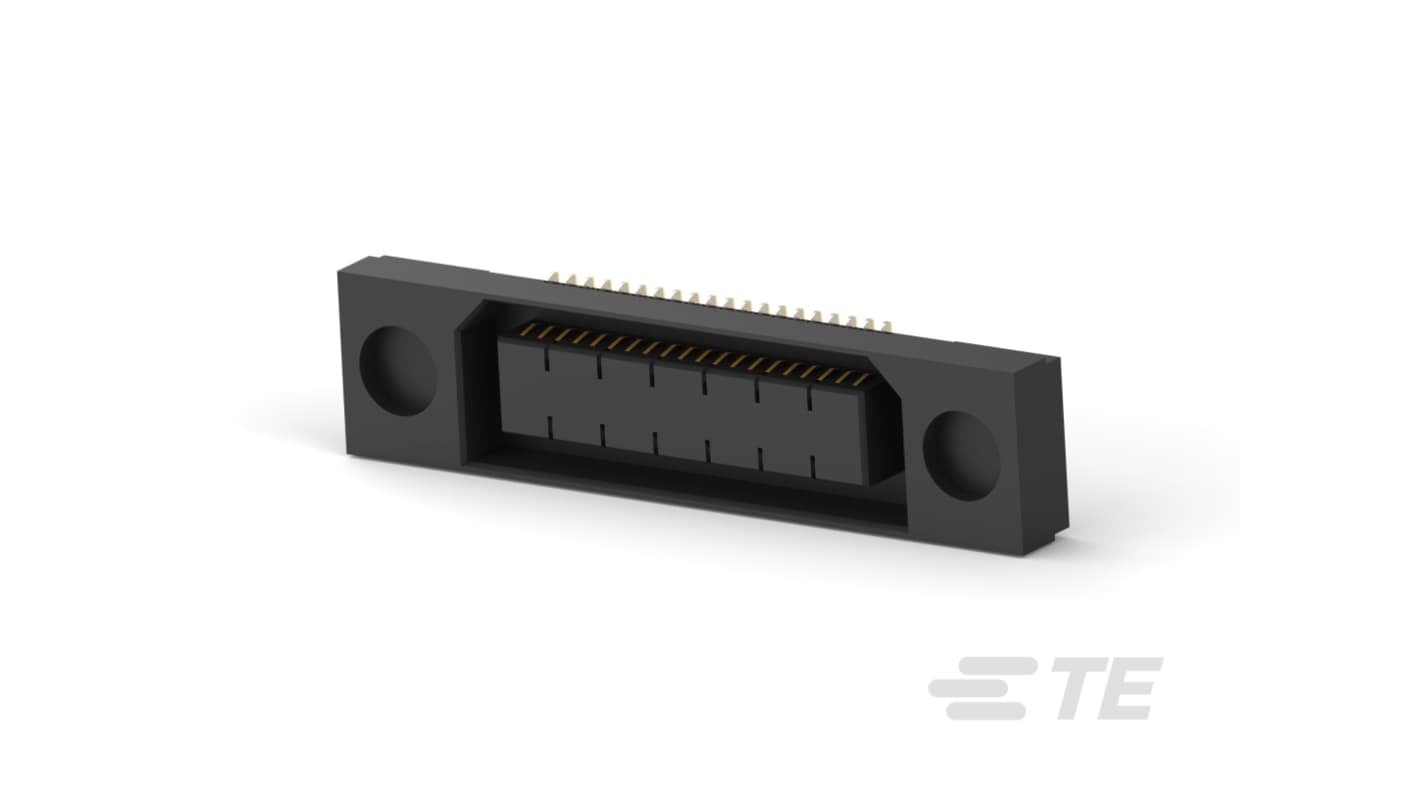

TE Connectivity 3-1658 Series Vertical Board PCB Header, 28 Contact(s), 0.8 mm Pitch, Shrouded
- RS Stock No.:
- 470-751
- Mfr. Part No.:
- 3-1658071-1
- Brand:
- TE Connectivity
Subtotal (1 tray of 25 units)*
£179.22
(exc. VAT)
£215.06
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £179.22 | £7.169 |
*price indicative
- RS Stock No.:
- 470-751
- Mfr. Part No.:
- 3-1658071-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | 3-1658 | |
| Product Type | PCB Header | |
| Pitch | 0.8mm | |
| Current | 1.25A | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 28 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Board-to-Board | |
| Contact Plating | Gold Flash | |
| Contact Material | Phosphor Bronze | |
| Row Pitch | 0.8mm | |
| Termination Type | Surface Mount | |
| Minimum Operating Temperature | 65°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | |
| Voltage | 125 V | |
| Distrelec Product Id | 304-53-996 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series 3-1658 | ||
Product Type PCB Header | ||
Pitch 0.8mm | ||
Current 1.25A | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 28 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Board-to-Board | ||
Contact Plating Gold Flash | ||
Contact Material Phosphor Bronze | ||
Row Pitch 0.8mm | ||
Termination Type Surface Mount | ||
Minimum Operating Temperature 65°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0 | ||
Voltage 125 V | ||
Distrelec Product Id 304-53-996 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB mount receptacle is meticulously engineered for vertical, board-to-board applications, offering a remarkable solution for connectivity in compact spaces. Designed with 28 positions and a centreline of 0.8 mm, it combines functionality with precision, ensuring a robust connection. Its fully shrouded design effectively protects the delicate contacts, enhancing reliability in electronic assemblies. Ideal for power and signal applications, this product features gold flash plating for optimal conductivity while maintaining a low profile. Crafted from high-quality materials, it withstands a broad operating temperature range, making it suitable for diverse environments. Whether integrating into new designs or retrofitting existing systems, this component stands out for its exceptional performance and versatility in various industries.
Offers an effective solution for space constrained designs
Ensures a reliable connection for both power and signal applications
Protective shrouding enhances contact longevity
Compatible with surface mount technology for modern PCB layouts
Durable construction promotes longevity in harsh operating conditions
The compact design allows for greater density in electrical components
Gold flash plating reduces contact resistance for improved performance
Temperature resilience facilitates operation across a wide range of environments
Optimised for easy assembly with pick and place techniques
