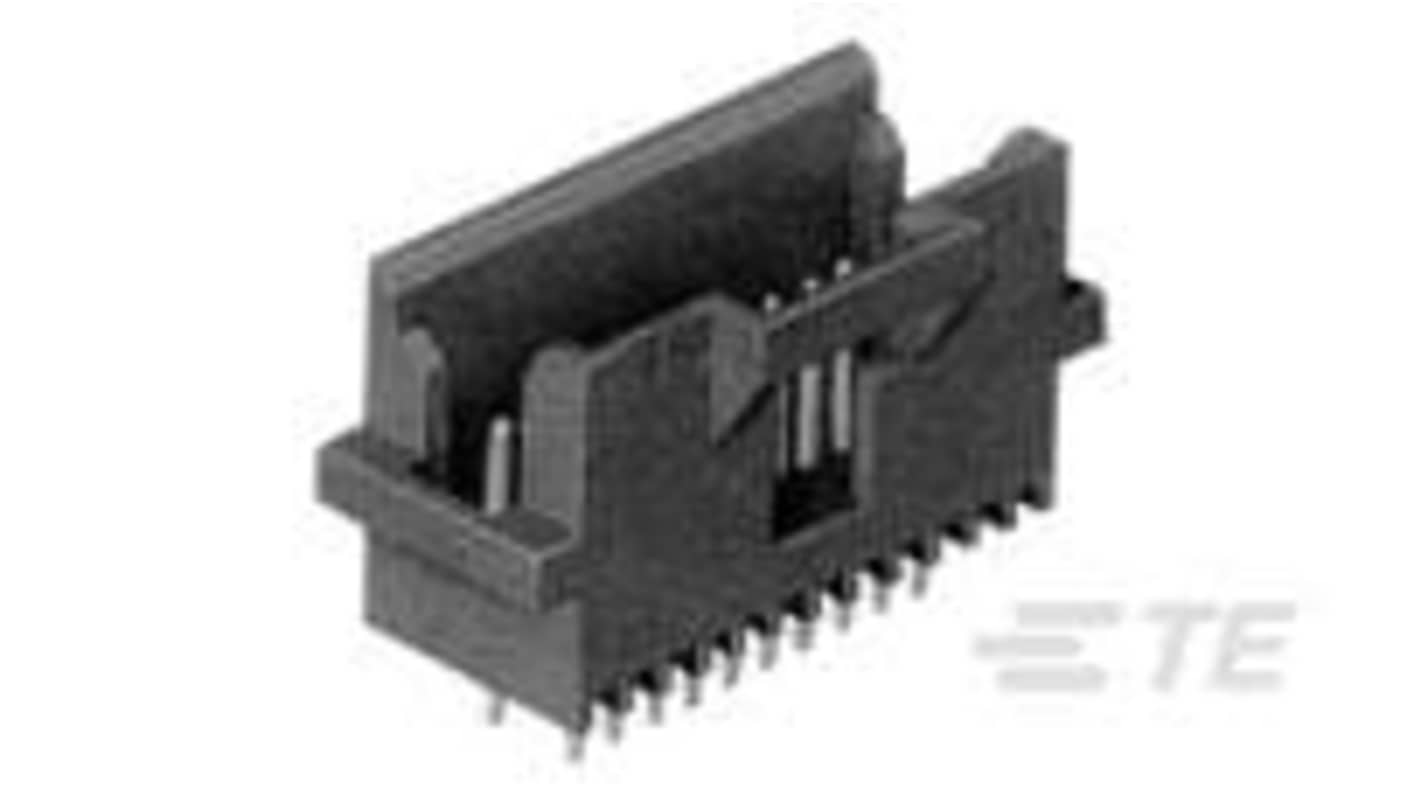

TE Connectivity 5-104 Series Vertical Board PCB Header, 50 Contact(s), 1.27 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 469-791
- Mfr. Part No.:
- 5-104666-4
- Brand:
- TE Connectivity
Subtotal (1 tube of 26 units)*
£244.21
(exc. VAT)
£293.05
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £244.21 | £9.393 |
*price indicative
- RS Stock No.:
- 469-791
- Mfr. Part No.:
- 5-104666-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | 5-104 | |
| Pitch | 1.27mm | |
| Current | 3.6A | |
| Number of Contacts | 50 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder | |
| Row Pitch | 1.27mm | |
| Minimum Operating Temperature | 65°C | |
| Contact Gender | Male | |
| Tail Pin Length | 3.68mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Voltage | 30 V | |
| Distrelec Product Id | 304-54-149 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series 5-104 | ||
Pitch 1.27mm | ||
Current 3.6A | ||
Number of Contacts 50 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type Board | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Termination Type Solder | ||
Row Pitch 1.27mm | ||
Minimum Operating Temperature 65°C | ||
Contact Gender Male | ||
Tail Pin Length 3.68mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Voltage 30 V | ||
Distrelec Product Id 304-54-149 | ||
- COO (Country of Origin):
- MX
The TE Connectivity PCB Mount Header is a versatile connectivity solution designed specifically for board-to-board applications. Featuring a fully shrouded design, this connector ensures secure and reliable connections with a focus on durability and efficiency. With 50 positions and a compact 1.27 mm (.05 in) centreline, it is engineered to optimise space without compromising performance. This product excels in environments demanding high reliability and operates flawlessly within a temperature range of -65 to 105 °C. Ideal for modern electronic systems, it facilitates seamless communication between circuit boards, making it an essential component for a variety of applications, from consumer electronics to industrial machinery.
Designed to support high-density PCB layouts
Utilises gold contact plating for superior conductivity
Offers excellent insulation resistance to ensure longevity
Equipped with latching for improved mating retention
Manufactured from LCP for enhanced thermal performance
Complies with stringent RoHS and REACH regulations for environmental safety
Features a standard connector profile for compatibility across various industry standards
Tailored for through-hole solder termination, ensuring secure PCB integration
