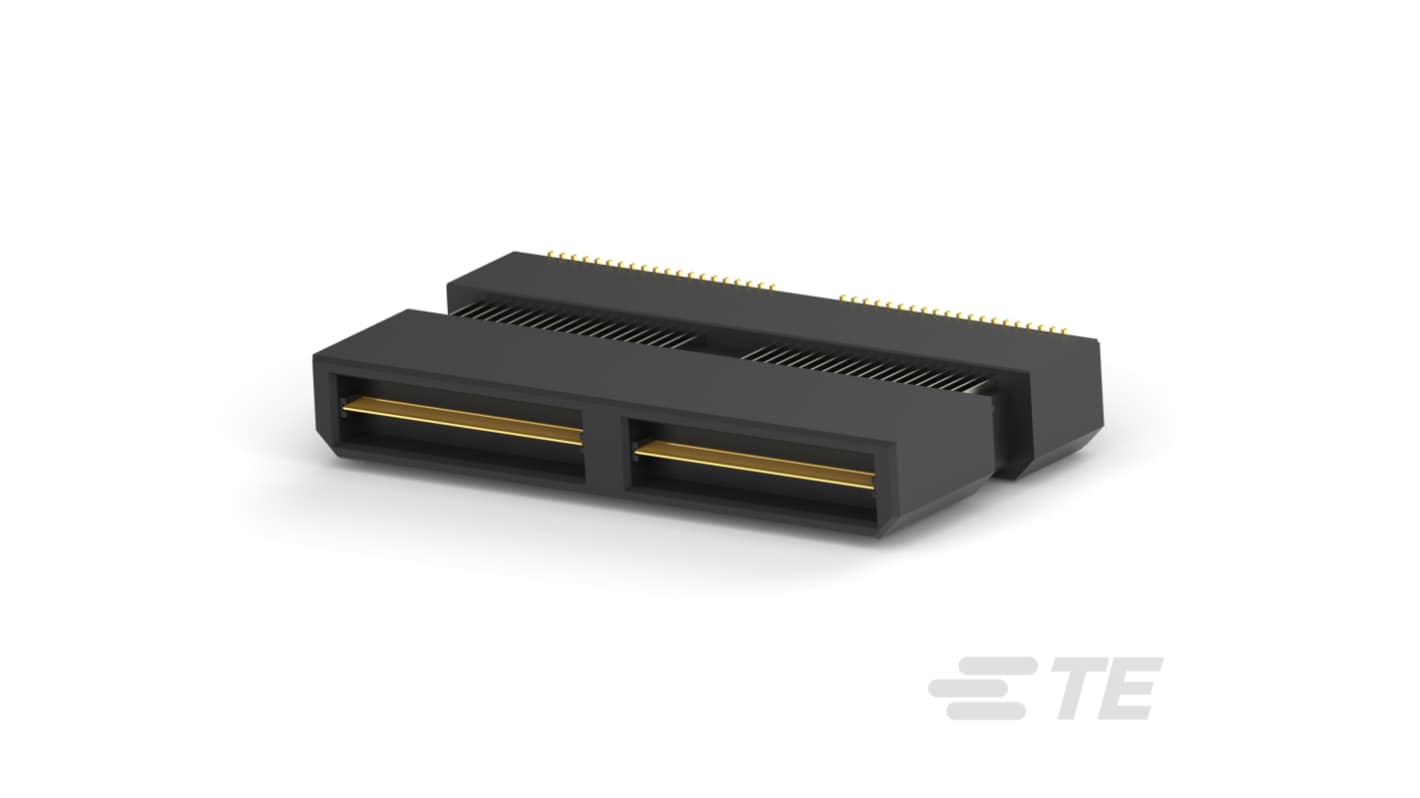

TE Connectivity MICTOR Series Vertical Board PCB Header, 80 Contact(s), 0.8 mm Pitch
- RS Stock No.:
- 469-580
- Distrelec Article No.:
- 304-53-694
- Mfr. Part No.:
- 1658018-2
- Brand:
- TE Connectivity
Subtotal (1 tray of 8 units)*
£179.71
(exc. VAT)
£215.65
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £179.71 | £22.464 |
*price indicative
- RS Stock No.:
- 469-580
- Distrelec Article No.:
- 304-53-694
- Mfr. Part No.:
- 1658018-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | MICTOR | |
| Pitch | 0.8mm | |
| Current | 9.5A | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 80 | |
| Orientation | Vertical | |
| Mount Type | Board | |
| Connector System | Board-to-Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Row Pitch | 0.8mm | |
| Termination Type | Surface Mount | |
| Minimum Operating Temperature | 65°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | 2016 Compliant, CE, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | |
| Voltage | 125V | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series MICTOR | ||
Pitch 0.8mm | ||
Current 9.5A | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 80 | ||
Orientation Vertical | ||
Mount Type Board | ||
Connector System Board-to-Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Row Pitch 0.8mm | ||
Termination Type Surface Mount | ||
Minimum Operating Temperature 65°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals 2016 Compliant, CE, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | ||
Voltage 125V | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed for vertical configurations, facilitating efficient board-to-board connections. Engineered with 80 positions, this connector ensures a compact assembly while maintaining optimal signal integrity. The 0.8 mm centreline pitch allows for high-density applications where space is at a premium. It boasts a robust construction featuring gold plating for enhanced durability and conductivity, perfect for power and signal applications. Its compatibility with various circuit applications makes it an essential component in modern electronic systems. This product’s low halogen content contributes to environmentally-friendly practices, aligning with contemporary regulations. Whether for prototyping or mass production, this header stands out for its reliability and performance in demanding environments.
High-density design accommodates 80 positions
Optimally configured for board-to-board connectivity
Durable gold plating enhances electrical performance
Low halogen content supports environmental compliance
Compatible with various circuit applications
Vertical orientation assists in space-constrained installations
Support for reflow soldering capabilities simplifies assembly
