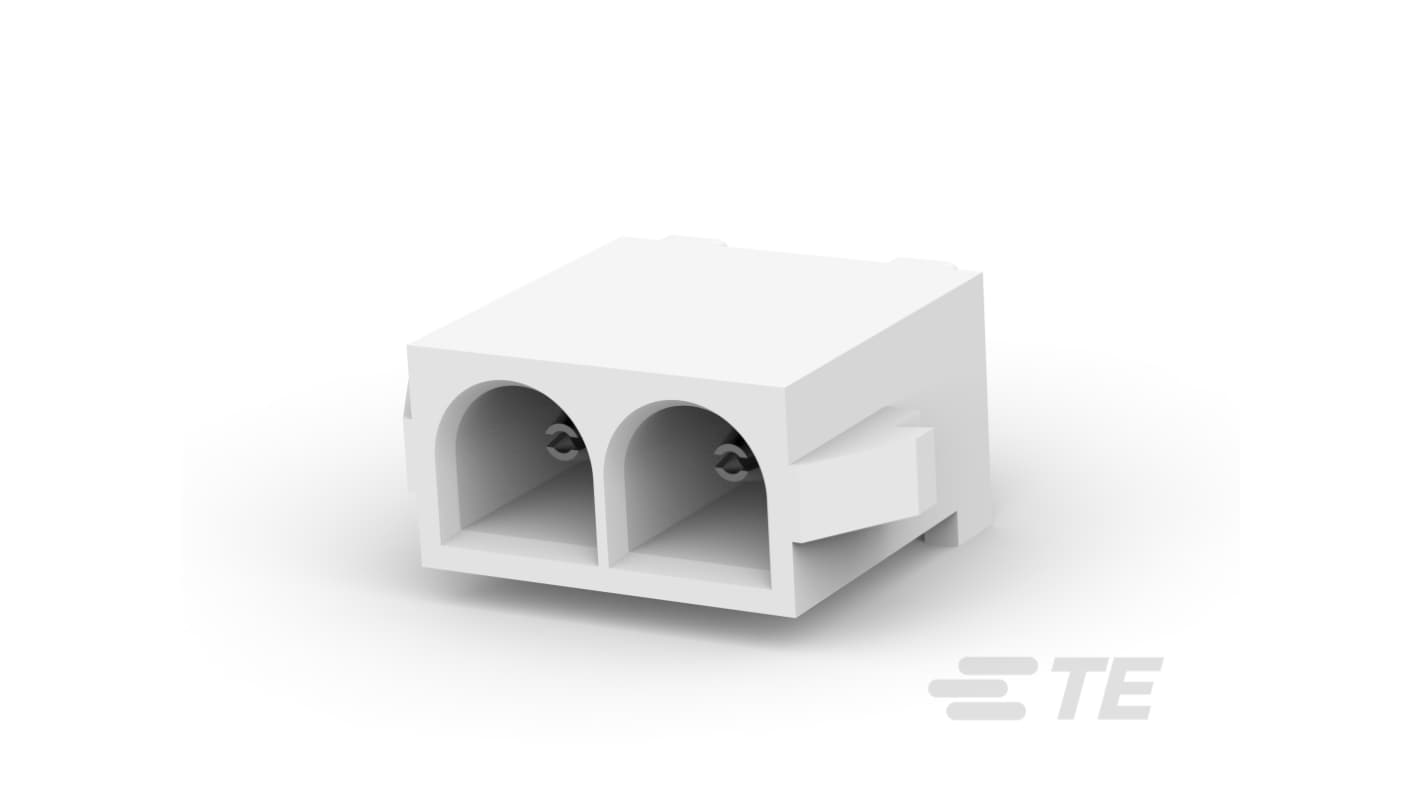

TE Connectivity MATE-N-LOK Series Vertical PCB PCB Header, 2 Contact(s), 6.35 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 bag of 400 units)*

£196.90

(exc. VAT)

£236.28

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 +£196.90£0.492

*price indicative

RS Stock No.:
467-944
Mfr. Part No.:
1586076-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Header

Series

MATE-N-LOK

Pitch

6.35mm

Current

12A

Number of Contacts

2

Housing Material

Nylon

Number of Rows

1

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Mount Type

PCB

Connector System

Wire-to-Board

Contact Material

Phosphor Bronze

Contact Plating

Pre Tin

Row Pitch

6.35mm

Termination Type

Solder

Minimum Operating Temperature

-40°C

Tail Pin Length

3.56mm

Maximum Operating Temperature

105°C

Standards/Approvals

UL 94 V-2

Voltage

60 V

Distrelec Product Id

304-58-163

COO (Country of Origin):
CN
The TE Connectivity PCB Mount Header is meticulously engineered to facilitate reliable wire-to-board connections in compact electronic assemblies. Designed with a 6.35 mm centreline, this fully shrouded component ensures seamless integration into vertical mounting scenarios. Its two-position configuration, complemented by a fully loaded design, accommodates diverse circuit applications while maintaining robust electrical performance. This product is crafted from durable nylon housing, ensuring compatibility with standard PCB thicknesses and enhancing overall mechanical stability. With a rated operating voltage of 600 VAC and a temperature tolerance from -40 °C to 105 °C, this header meets demanding industry standards, making it ideal for various applications, including power circuits. Its nickel underplating enhances conductivity, while the round contact design secures reliable mating alignment through locking tab features.

Offers superior mechanical retention with polarising features

Encapsulated design provides added safety against environmental factors

The locking tab ensures secure connections even in high-vibration settings

Compatible with a wide range of universal MATE-N-LOK components

Designed for wave solder compatibility up to 265°C for efficient assembly

Low halogen materials promote better environmental performance
