A smarter scope for faster debug

The PicoScope 6000E Series fixed-resolution and FlexRes mixed-signal oscilloscopes provide 8 to 12 bits of vertical resolution, with up to 1 GHz bandwidth and 5 GS/s sampling rate.

Models with four or eight analog channels have the timing and amplitude resolution you need to reveal critical signal integrity issues such as timing errors, glitches, dropouts, crosstalk and metastability issues.

Features and benefits

Up to 1 GHz bandwidth
8-bit to 12-bit FlexRes® ADC
A choice of 4 (up to 1 GHz) or 8 (up to 500 MHz) analog channels
Supports up to 16 digital MSO channels
200 ms capture time at 5 GS/s
Up to 4 GS capture memory
50 MHz 200 MS/s 14-bit AWG
300 000 waveforms per second update rate
PicoScope, PicoLog® and PicoSDK® software included
21 serial protocol decoder / analyzers included
Mask limit testing and user-definable alarms
High-resolution time-stamping of waveforms
Over ten million DeepMeasure™ results per acquisition
Advanced triggers: edge, window, pulse width, window pulse width, level dropout, window dropout, interval, runt and logic

Applications

These oscilloscopes, with PicoScope 6 application software, are ideal for design engineers working with high-performance embedded systems, signal processing, power electronics, mechatronics and automotive designs, and for researchers and scientists working on multichannel high-performance experiments in physics labs, particle accelerators and similar facilities.

The PicoScope 6000E Application Programming Interface (API) provides programming access to the full set of advanced hardware features and can be used to develop diverse custom and OEM applications.

Supplied with/Kit contains:

PicoScope 6000E Series PC oscilloscope
P2056 10:1 500 MHz passive probes
User’s Guide
12 V power adaptor, universal input
USB cable, 1.8 m
Storage/carry case

What other Oscilloscopes are available in this Pico range?

Approvals/Certification

Pollution degree: EN 61010 pollution degree 2
Safety compliance: Designed to EN 61010-1:2010 + A1:2019
EMC compliance: Tested to EN61326-1:2013 and FCC Part 15 Subpart B
Environmental compliance: RoHS, REACH, WEEE
Warranty: 5 years

Select all	Attribute	Value
	Brand	Pico Technology
	Bandwidth	1GHz
	Number of Analogue Channels	4
	Oscilloscope Type	PC Based
	Calibrated	RSCAL
	Oscilloscope Form	Digital Storage
	Interface	USB
	Memory Depth	2Mpts
	Sample Rate Random	80 Msps
	Series	PicoScope 6000E
	Waveform Refresh Rate	000 per sec, Up → 300per sec
	Maximum Vertical Sensitivity	4V/div
	Digital/Analogue	Digital
	Minimum Time Base	20ns/div
	Plug Type	USB
	Vertical Resolution	8 bit, 10 bit, 12 bit
	Power Source	USB

	Select all
	Brand Pico Technology
	Bandwidth 1GHz
	Number of Analogue Channels 4
	Oscilloscope Type PC Based
	Calibrated RSCAL
	Oscilloscope Form Digital Storage
	Interface USB
	Memory Depth 2Mpts
	Sample Rate Random 80 Msps
	Series PicoScope 6000E
	Waveform Refresh Rate 000 per sec, Up → 300per sec
	Maximum Vertical Sensitivity 4V/div
	Digital/Analogue Digital
	Minimum Time Base 20ns/div
	Plug Type USB
	Vertical Resolution 8 bit, 10 bit, 12 bit
	Power Source USB

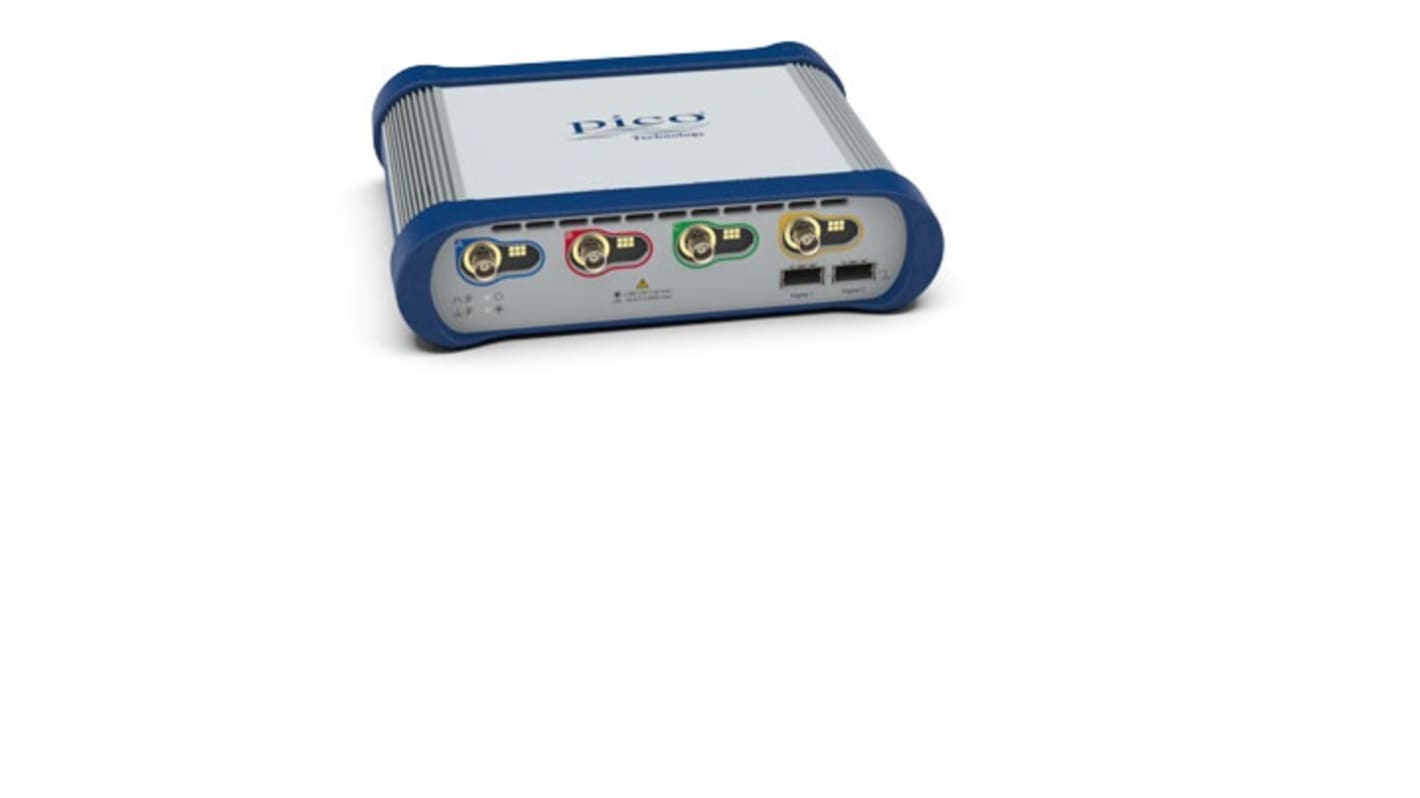

Pico Technology 6426E PicoScope 6000E Series, 1GHz PC Based Oscilloscope, 4 Analogue Channels - RS Calibrated
