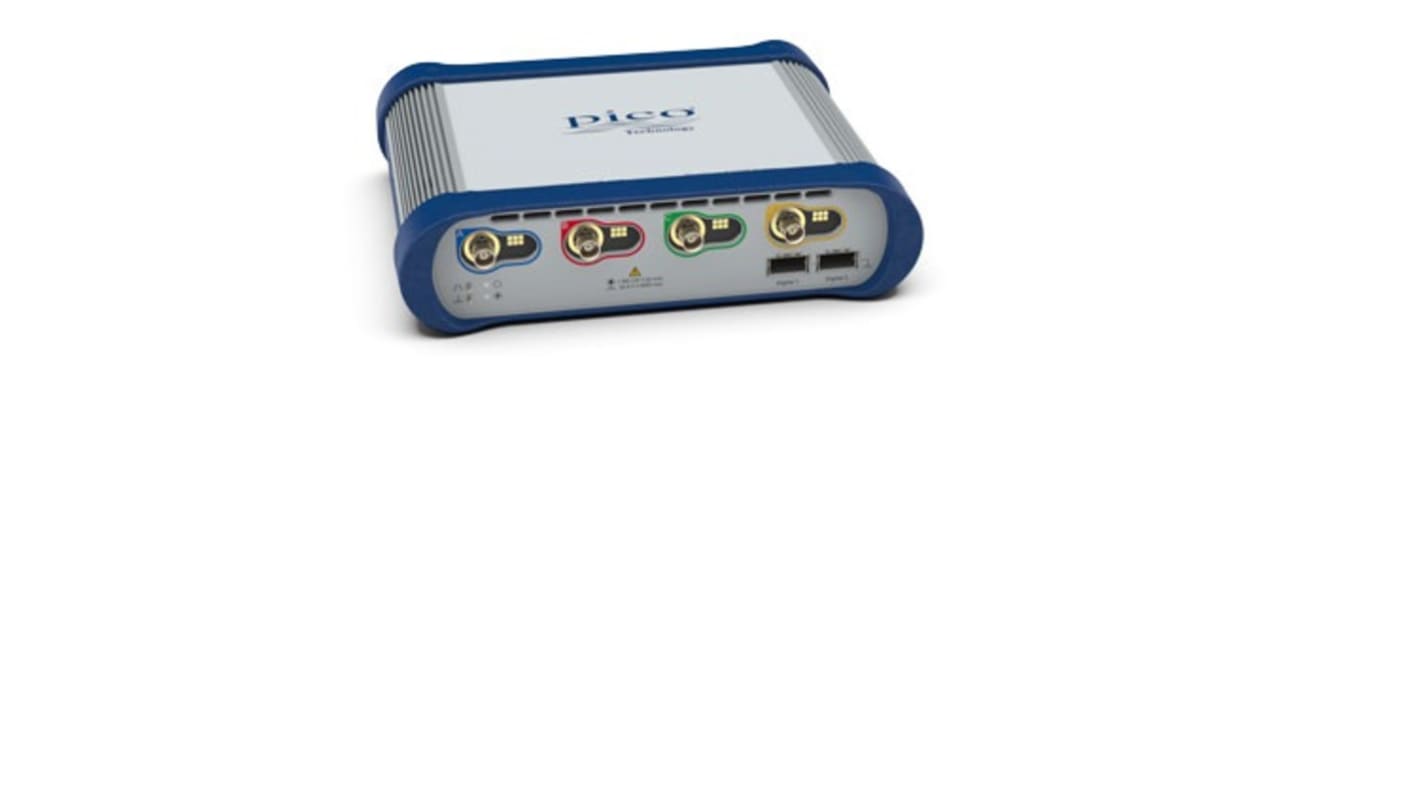

PicoScope 6000E Series, 1 GHz PC Based Oscilloscope 4-Channel, RSCAL
- RS Stock No.:
- 222-2142
- Mfr. Part No.:
- PicoScope 6406E
- Brand:
- Pico Technology
Subtotal (1 unit)*
£10,298.50
(exc. VAT)
£12,358.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10,298.50 |
*price indicative
- RS Stock No.:
- 222-2142
- Mfr. Part No.:
- PicoScope 6406E
- Brand:
- Pico Technology
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pico Technology | |
| Product Type | Oscilloscope | |
| Bandwidth | 1GHz | |
| Number of Channels | 4 | |
| Model Number | PicoScope 6406E | |
| Oscilloscope Type | PC Based | |
| Interface Type | USB | |
| Series | PicoScope 6000E | |
| Length | 245mm | |
| Height | 61.50mm | |
| Standards/Approvals | EN 61010, EN 613261:2013, REACH, RoHS, WEEE | |
| Width | 192mm | |
| Power Source | USB | |
| Calibrated | RSCAL | |
| Minimum Time Base | 1ns/div | |
| Minimum Vertical Sensitivity | 2mV/div | |
| Rise Time | 850ps | |
| Vertical Resolution | 8 bit | |
| Maximum Time Base | 5000s/div | |
| Maximum Vertical Sensitivity | 4V/div | |
| Select all | ||
|---|---|---|
Brand Pico Technology | ||
Product Type Oscilloscope | ||
Bandwidth 1GHz | ||
Number of Channels 4 | ||
Model Number PicoScope 6406E | ||
Oscilloscope Type PC Based | ||
Interface Type USB | ||
Series PicoScope 6000E | ||
Length 245mm | ||
Height 61.50mm | ||
Standards/Approvals EN 61010, EN 613261:2013, REACH, RoHS, WEEE | ||
Width 192mm | ||
Power Source USB | ||
Calibrated RSCAL | ||
Minimum Time Base 1ns/div | ||
Minimum Vertical Sensitivity 2mV/div | ||
Rise Time 850ps | ||
Vertical Resolution 8 bit | ||
Maximum Time Base 5000s/div | ||
Maximum Vertical Sensitivity 4V/div | ||
- COO (Country of Origin):
- GB
PicoScope 6000E Series Oscilloscope, 1 GHz Bandwidth, 4 Channels - PicoScope 6406E
This oscilloscope is a PC‑connected instrument that captures and displays electrical signals for analysis. It is powered and interfaced via USB and operates as a compact, USB‑driven solution suitable for laboratory and workshop environments. The instrument supports Rapid signal acquisition across four inputs and complies with relevant European safety and environmental standards.
Features and Benefits:
• 1 ns/div minimum time base enables observation of fast time‑domain events
• 1GHz bandwidth delivers high‑frequency signal fidelity
• 850 ps rise time resolves fast edge transitions
• 8‑bit vertical resolution provides clear amplitude representation
• 2 mV/div minimum sensitivity detects low‑level signals
• 1GHz bandwidth delivers high‑frequency signal fidelity
• 850 ps rise time resolves fast edge transitions
• 8‑bit vertical resolution provides clear amplitude representation
• 2 mV/div minimum sensitivity detects low‑level signals
Applications
• Suitable for high‑speed digital signal analysis tasks
• Ideal for multi‑channel transient capture on test benches
• Used for USB‑powered field measurements and diagnostics
• Can be used for educational laboratory waveform demonstrations
• Ideal for multi‑channel transient capture on test benches
• Used for USB‑powered field measurements and diagnostics
• Can be used for educational laboratory waveform demonstrations
How is the instrument powered during use?
It receives power through the USB connection, eliminating separate power supplies.
What safety and environmental standards does it meet?
The unit conforms to EN 61010, EN 61326‑1:2013, REACH, RoHS and WEEE requirements.
What vertical input range can I expect for amplitude measurements?
The instrument supports vertical sensitivities from 2 mV/div up to 4 V/div to cover low to moderate amplitudes.
What physical form factor should I plan for on a test bench?
The enclosure measures 61.50 mm high by 245 mm long by 192 mm wide for Compact placement.
