Rohde & Schwarz RTH1002 Scope Rider Series, 350MHz Handheld Oscilloscope, 2 Analogue Channels, 8 Digital Channels -

View all Oscilloscopes

Subtotal (1 unit)*

£6,805.57

(exc. VAT)

£8,166.68

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£6,805.57

*price indicative

Shop Probes
Don't forget your Probe
Whatever Oscilloscope you're in the market for, we have the probe to match.
Shop our full range of Probes here
RS Stock No.:
179-6286
Mfr. Part No.:
RTH1032MSO
Brand:
Rohde & Schwarz
Find similar products by selecting one or more attributes.
Select all

Brand

Rohde & Schwarz

Bandwidth

350MHz

Number of Analogue Channels

2

Number of Digital Channels

8

Calibrated

UKAS

Oscilloscope Type

Handheld

Oscilloscope Form

Mixed Signal

Sample Rate Random

1.25 Gsps, 2.5 Gsps

Screen Size

7in

Series

Scope Rider

Vertical Resolution

9 bit

Minimum Time Base

1ns/div

Digital/Analogue

Digital

Rise Time

1ns

Display Type

TFT LCD

Maximum Vertical Sensitivity

100V/div

Power Source

Battery, Mains

Battery Type

Li-ion

Minimum Vertical Sensitivity

2mV/div

Safety Category

CAT II 1000 V, CAT III 1000 V, CAT IV 600V

COO (Country of Origin):
CZ

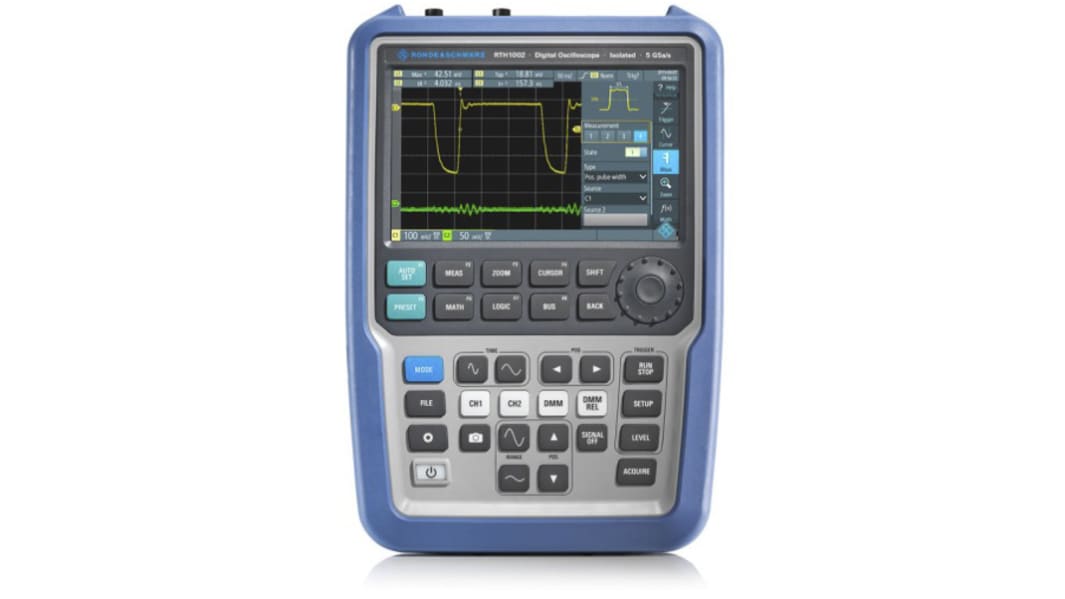

Rohde & Schwarz RTH100 Series RTH1002 Oscilloscope


The Rohde & Schwarz RTH100 series handheld digital oscilloscope is a portable universal tool for laboratory and field use. It allows a bandwidth of 350MHz, memory depth up to 50MS and sampling rate up to 5GS/s. The input signal voltage required to operate this oscilloscope is 300V. It has LCD TFT, touch display of 7in with a resolution of 800x480 pixels. The analogue to digital converter resolution is 10 bit. It has two channels. This oscilloscope has isolated channels for power signal measurements up to CAT IV 600V. It performs multiple functions like lab performance oscilloscope, logical and protocol analyser, waveform and pattern generator in one instrument.

Features and Benefits


• Wireless LAN for web-based remote control
• Bandwidth is upgradeable via software keycode
• Includes 8 channel logic probe and micro-test connectors
• Optional software packages available
• Works on Lithium-ion rechargeable battery
• Automatic measurement of multiple parameters

Applications


• Educational institutes
• Used by service technicians
• R&D troubleshooting
• Production testing
• Power electronics

Note

History and segmented memory software is now included in standard RTH configuration for free, offering a saving of up to 18%. This option enables automatic storage of up to 5000 waveforms in a separate history buffer of the oscilloscope. The waveform data can be accessed any time to analyze past acquisitions using all oscilloscope capabilities.
