Pico Technology 2407B PicoScope 2000 Series, 70MHz PC Based Oscilloscope, 4 Analogue Channels - RS Calibrated
- RS Stock No.:
- 111-7086
- Mfr. Part No.:
- PicoScope 2407B
- Brand:
- Pico Technology
Subtotal (1 unit)*
£818.09
(exc. VAT)
£981.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £818.09 |
*price indicative
- RS Stock No.:
- 111-7086
- Mfr. Part No.:
- PicoScope 2407B
- Brand:
- Pico Technology
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Pico Technology | |
Bandwidth | 70MHz | |
Number of Analogue Channels | 4 | |
Oscilloscope Type | PC Based | |
Calibrated | RSCAL | |
Interface | CAN, IIC, LIN, RS232, SPI, UART, USB | |
Sample Rate Random | 1 Gsps | |
Series | PicoScope 2000 | |
Record Length | 10000M points/ch | |
Power Source | USB | |
Digital/Analogue | Analogue | |
Maximum Vertical Sensitivity | 4V/div | |
Minimum Vertical Sensitivity | 4mV/div | |
Minimum Time Base | 1ns/div | |
Weight | <200g | |
Rise Time | 5ns | |
Maximum Time Base | 5000s/div | |
Dimensions | 130 x 104 x 18.8mm | |
Vertical Resolution | 8 bit | |
Select all | ||
---|---|---|
Brand Pico Technology | ||
Bandwidth 70MHz | ||
Number of Analogue Channels 4 | ||
Oscilloscope Type PC Based | ||
Calibrated RSCAL | ||
Interface CAN, IIC, LIN, RS232, SPI, UART, USB | ||
Sample Rate Random 1 Gsps | ||
Series PicoScope 2000 | ||
Record Length 10000M points/ch | ||
Power Source USB | ||
Digital/Analogue Analogue | ||
Maximum Vertical Sensitivity 4V/div | ||
Minimum Vertical Sensitivity 4mV/div | ||
Minimum Time Base 1ns/div | ||
Weight <200g | ||
Rise Time 5ns | ||
Maximum Time Base 5000s/div | ||
Dimensions 130 x 104 x 18.8mm | ||
Vertical Resolution 8 bit | ||
- COO (Country of Origin):
- GB

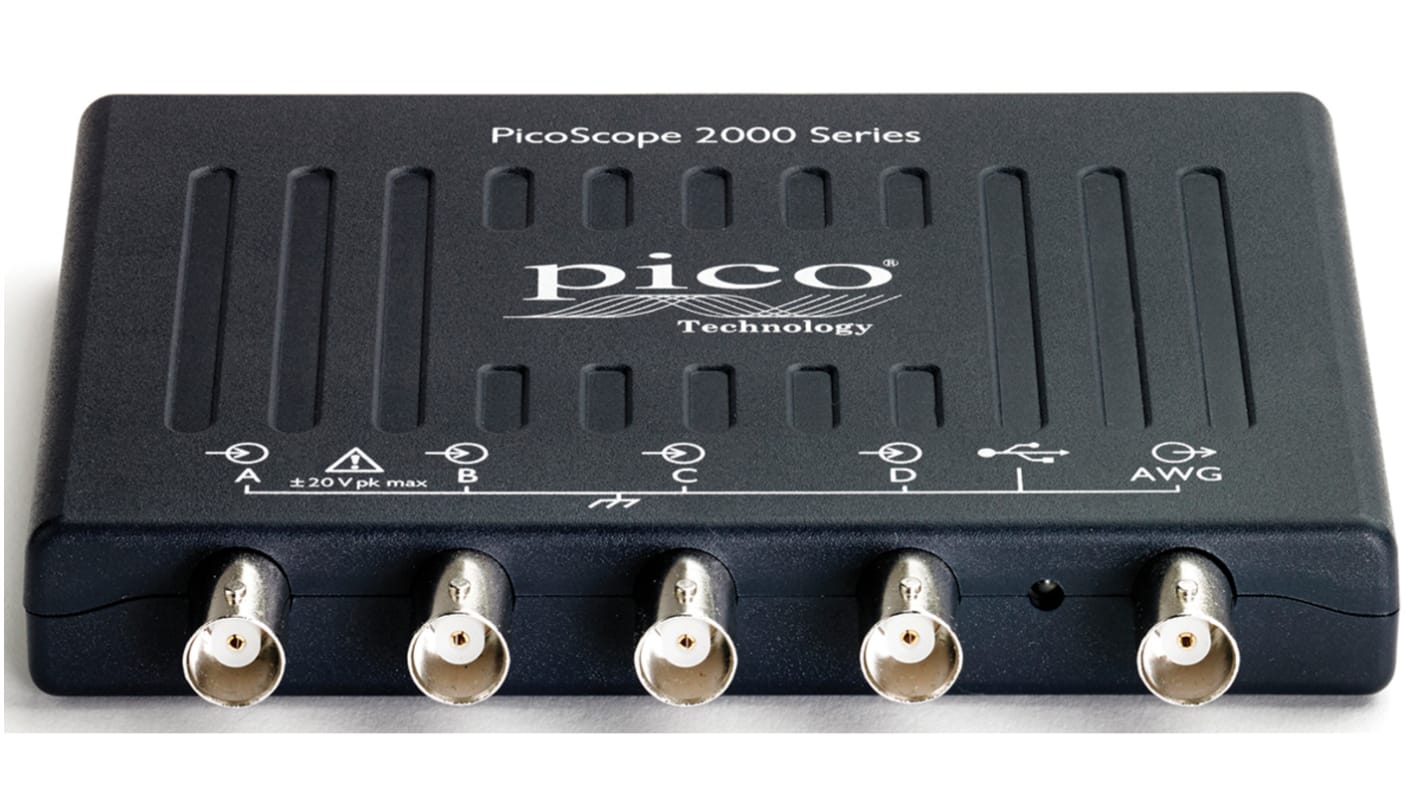

PicoScope 2407B 4-channel 70 MHz PC Oscilloscope
PicoScope 2407B is a 70 MHz 4-channel oscilloscope which features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. The 2407B has a maximum sampling rate of 1 GS/s, buffer memory of 64 Msamples and 1 MHz AWG signal generator. Fifteen automatic measurements are available in scope mode and another eleven in spectrum mode. Serial decoding is a standard PicoScope feature and includes SPI, I2C, FlexRay, CANbus, LINbus and ARINC. The 2407B offers excellent waveform visualisation and measurement, as well as fast waveform update rates. It delivers the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots. The PicoScope 2407B takes advantage of the computing, display and communication power of an attached laptop or desktop PC – now incorporating pinch, zoom and drag capabilities.
Features and Benefits
Powerful, portable, compact
4 analog channels
70 MHz bandwidth
Built-in arbitrary waveform generator
1 GS/s, 64 MS buffer
USB connected and powered
Serial decoding/FFT advanced waveform analysis included
Excellent signal integrity
Dimensions 130 x 104 x 18.8 mm
Weight <200 g
4 analog channels
70 MHz bandwidth
Built-in arbitrary waveform generator
1 GS/s, 64 MS buffer
USB connected and powered
Serial decoding/FFT advanced waveform analysis included
Excellent signal integrity
Dimensions 130 x 104 x 18.8 mm
Weight <200 g
Areas of Application
Design
Test
Education
Service
Monitoring
Fault-finding
Repair
Test
Education
Service
Monitoring
Fault-finding
Repair
Note
Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www.picotech.com: PicoScope 6 (beta) for Linux and OS X; SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese; Czech; Danish; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Norwegian; Polish; Portuguese; Romanian; Russian; Spanish; Swedish; Turkish. Extra and/or replacement probes, cable and test clips are available separately.
Standards
EN 61010-1:2010
Supplied with
USB 2.0 cable, passive probes (x4), quick start guide, software and reference CD
