Pico Technology PQ010 PicoScope 2000 Series, 70MHz PC Based Oscilloscope, 2 Analogue Channels, 16 Digital Channels - RS

View all Oscilloscopes

Subtotal (1 unit)*

£756.59

(exc. VAT)

£907.91

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£756.59

*price indicative

Shop Probes
Don't forget your Probe
Whatever Oscilloscope you're in the market for, we have the probe to match.
Shop our full range of Probes here
RS Stock No.:
111-7030
Mfr. Part No.:
PicoScope 2207B MSO
Brand:
Pico Technology
Find similar products by selecting one or more attributes.
Select all

Brand

Pico Technology

Bandwidth

70MHz

Number of Analogue Channels

2

Number of Digital Channels

16

Calibrated

RSCAL

Oscilloscope Type

PC Based

Oscilloscope Form

Mixed Signal

Interface

CAN, IIC, LIN, RS232, SPI, UART, USB

Sample Rate Random

1 Gsps

Series

PicoScope 2000

Minimum Time Base

1ns/div

Input Capacitance

8 pF

Dimensions

130 x 104 x 18.8mm

Vertical Resolution

8 bit

Maximum Vertical Sensitivity

4V/div

Minimum Vertical Sensitivity

4mV/div

Weight

<200g

Input Impedance

200 kΩ

Digital/Analogue

Digital

Power Source

USB

Maximum Time Base

5000s/div

Rise Time

5ns

COO (Country of Origin):
GB

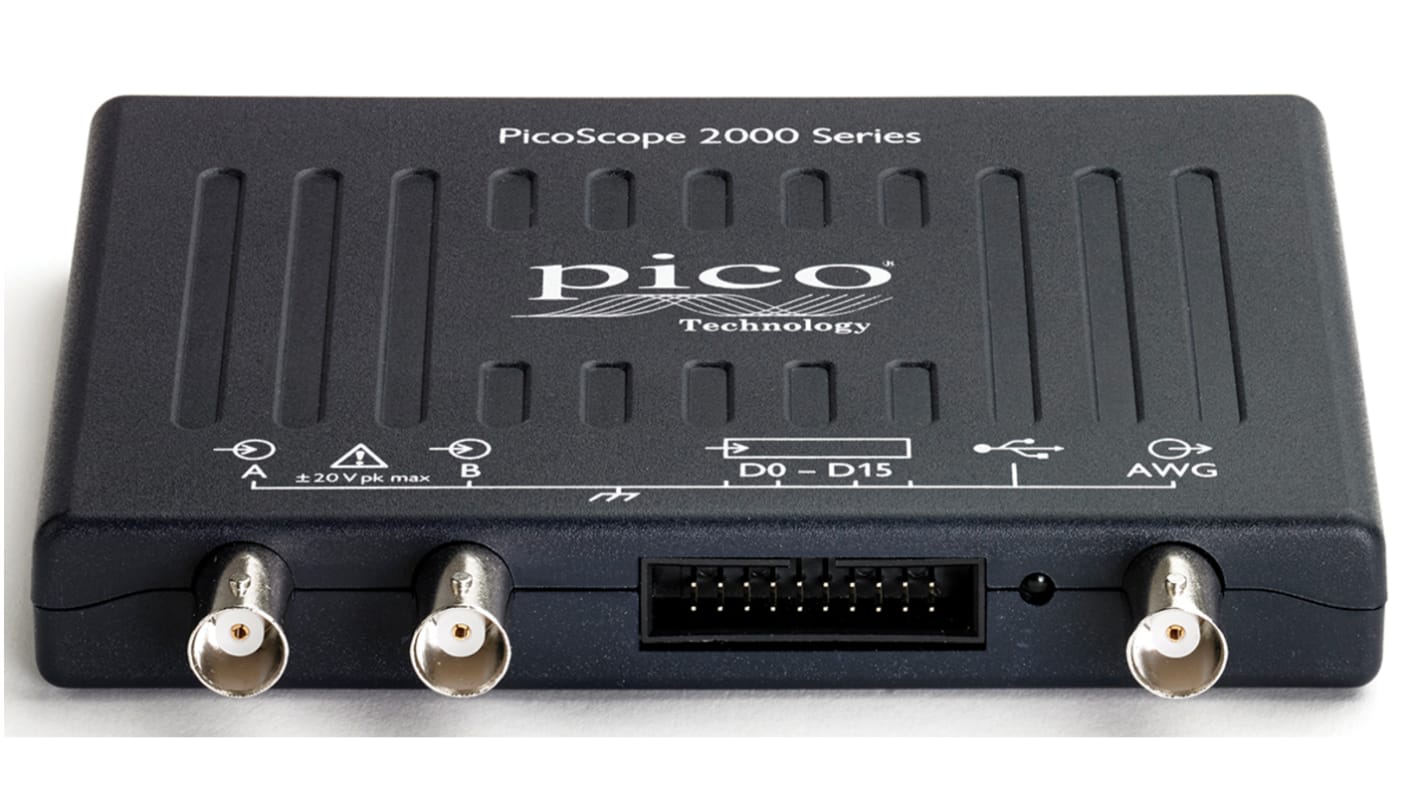

PicoScope 2207B MSO 2-channel 70 MHz PC Oscilloscope


PicoScope 2207B MSO is a 70 MHz 2-channel mixed signal oscilloscope which also functions as a 16-channel logic analyser, sampling at a maximum of 1 GS/s. It features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. The 2207B MSO has a buffer memory of 64 Msamples and a 1 MHz AWG signal generator. Fifteen automatic measurements are available in scope mode and another eleven in spectrum mode. Serial decoding is a standard PicoScope feature and includes SPI, I2C, FlexRay, CANbus, LINbus and ARINC. The 2207B MSO offers excellent waveform visualisation and measurement, as well as fast waveform update rates. It delivers the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots. The PicoScope 2207B MSO takes advantage of the computing, display and communication power of an attached laptop or desktop PC – now incorporating pinch, zoom and drag capabilities.

Features and Benefits


Powerful, portable, compact
2 analog/16 digital channels
70 MHz bandwidth
Built-in arbitrary waveform generator
1 GS/s, 64 MS buffer
USB connected and powered
Serial decoding/FFT advanced waveform analysis included
Excellent signal integrity
Dimensions 130 x 104 x 18.8 mm
Weight <200 g

Areas of Application


Design
Test
Education
Service
Monitoring
Fault-finding
Repair

Note

Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www.picotech.com: PicoScope 6 (beta) for Linux and OS X; SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese; Czech; Danish; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Norwegian; Polish; Portuguese; Romanian; Russian; Spanish; Swedish; Turkish. Extra and/or replacement probes, cable and test clips are available separately.

Standards

EN 61010-1:2010

Supplied with

USB 2.0 cable, passive probes (x2), digital input cable, logic test clips (x20), quick start guide, software and reference CD
