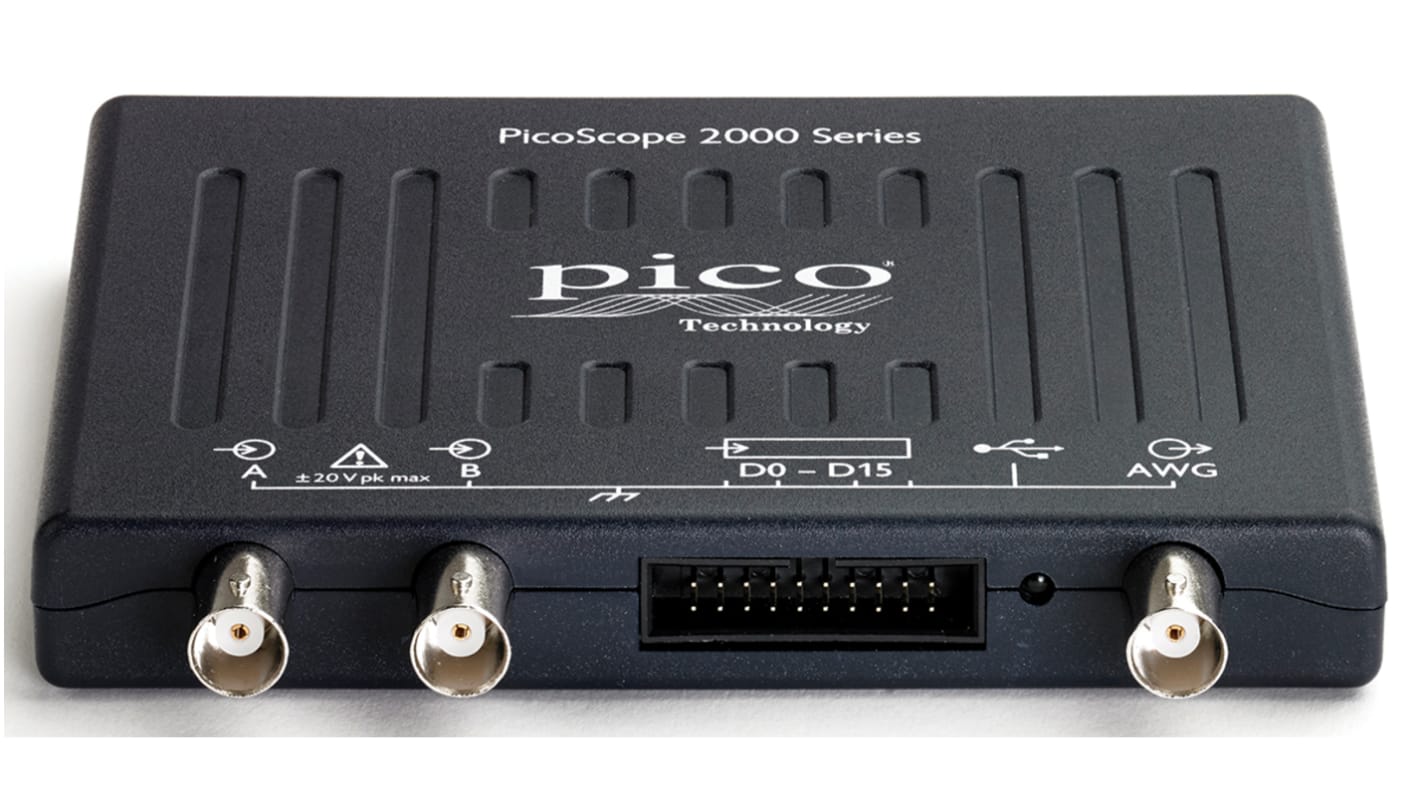

Pico Technology PQ010 PicoScope 2000 Series, 70MHz PC Based Oscilloscope, 2 Analogue Channels, 16 Digital Channels -

RS Stock No.:: 111-7031
Mfr. Part No.:: PicoScope 2207B MSO
Brand:: Pico Technology

Pico Technology PQ010 PicoScope 2000 Series, 70MHz PC Based Oscilloscope, 2 Analogue Channels, 16 Digital Channels -

Subtotal (1 unit)*

£801.77

(exc. VAT)

£962.12

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 26 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£801.77

*price indicative

Don't forget your Probe

Whatever Oscilloscope you're in the market for, we have the probe to match.

Shop our full range of Probes here

RS Stock No.:: 111-7031
Mfr. Part No.:: PicoScope 2207B MSO
Brand:: Pico Technology

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Pico Technology
	Bandwidth	70MHz
	Number of Analogue Channels	2
	Number of Digital Channels	16
	Oscilloscope Type	PC Based
	Calibrated	UKAS
	Oscilloscope Form	Mixed Signal
	Interface	CAN, IIC, LIN, RS232, SPI, UART, USB
	Sample Rate Random	1 Gsps
	Series	PicoScope 2000
	Maximum Vertical Sensitivity	4V/div
	Minimum Time Base	1ns/div
	Digital/Analogue	Digital
	Maximum Time Base	5000s/div
	Power Source	USB
	Vertical Resolution	8 bit
	Dimensions	130 x 104 x 18.8mm
	Input Impedance	200 kΩ
	Weight	<200g
	Minimum Vertical Sensitivity	4mV/div
	Rise Time	5ns
	Input Capacitance	8 pF

	Select all
	Brand Pico Technology
	Bandwidth 70MHz
	Number of Analogue Channels 2
	Number of Digital Channels 16
	Oscilloscope Type PC Based
	Calibrated UKAS
	Oscilloscope Form Mixed Signal
	Interface CAN, IIC, LIN, RS232, SPI, UART, USB
	Sample Rate Random 1 Gsps
	Series PicoScope 2000
	Maximum Vertical Sensitivity 4V/div
	Minimum Time Base 1ns/div
	Digital/Analogue Digital
	Maximum Time Base 5000s/div
	Power Source USB
	Vertical Resolution 8 bit
	Dimensions 130 x 104 x 18.8mm
	Input Impedance 200 kΩ
	Weight <200g
	Minimum Vertical Sensitivity 4mV/div
	Rise Time 5ns
	Input Capacitance 8 pF

Datasheet

COO (Country of Origin):: GB

Pico Technology Mixed Signal Oscilloscope

The Pico Technology 2000 series 70MHz mixed-signal oscilloscope functions as a 16-channel logic analyser. This product has 2 analogue and 16 digital channels. It features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. This oscilloscope also offers an excellent waveform visualisation and measurement with fast waveform update rates. It delivers the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots.

Note:

Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www. Picotech. Com: PicoScope 6 (beta) for Linux and OS X; SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese; Czech; Danish; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Norwegian; Polish; Portuguese; Romanian; Russian; Spanish; Swedish; Turkish. Extra and/or replacement probes, cable and test clips are available separately.

Supplied with:

USB 2.0 cable

Passive probes (x2)

Digital input cable

Logic test clips (x20)

Quick start guide

Software and reference CD

Features and Benefits

Input capacitance is 8pF

Sampling rate is 1GSa/s with 64MS buffer

Operating temperature ranges between 0oC and 50oC

Input impedance is 200Kohm

USB connected and powered

Serial decoding/FFT advanced waveform analysis included

Excellent signal integrity

Applications

Design

Test

Education

Servicing

Monitoring

Fault finding

Repairs

Certifications

EN 61010-1:2010
