Pico Technology PQ008 2205A MSO PicoScope 2000 Series, 25MHz PC Based Oscilloscope, 2 Analogue Channels, 16 Digital

View all Oscilloscopes

Subtotal (1 unit)*

£559.97

(exc. VAT)

£671.96

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5 unit(s) ready to ship
  • Plus 999,999,994 unit(s) shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£559.97

*price indicative

Shop Probes
Don't forget your Probe
Whatever Oscilloscope you're in the market for, we have the probe to match.
Shop our full range of Probes here
RS Stock No.:
111-6779
Mfr. Part No.:
PicoScope 2205A MSO
Brand:
Pico Technology
Find similar products by selecting one or more attributes.
Select all

Brand

Pico Technology

Bandwidth

25MHz

Number of Analogue Channels

2

Number of Digital Channels

16

Oscilloscope Type

PC Based

Calibrated

UKAS

Oscilloscope Form

Mixed Signal

Interface

CAN, IIC, LIN, RS232, SPI, UART, USB

Sample Rate Random

500 Msps

Series

PicoScope 2000

Input Capacitance

8 pF

Rise Time

14ns

Maximum Time Base

5000s/div

Vertical Resolution

8 bit

Power Source

USB

Digital/Analogue

Digital

Dimensions

130 x 104 x 18.8mm

Maximum Vertical Sensitivity

4V/div

Input Impedance

200 kΩ

Minimum Time Base

2ns/div

Minimum Vertical Sensitivity

4mV/div

Weight

<200g

COO (Country of Origin):
GB

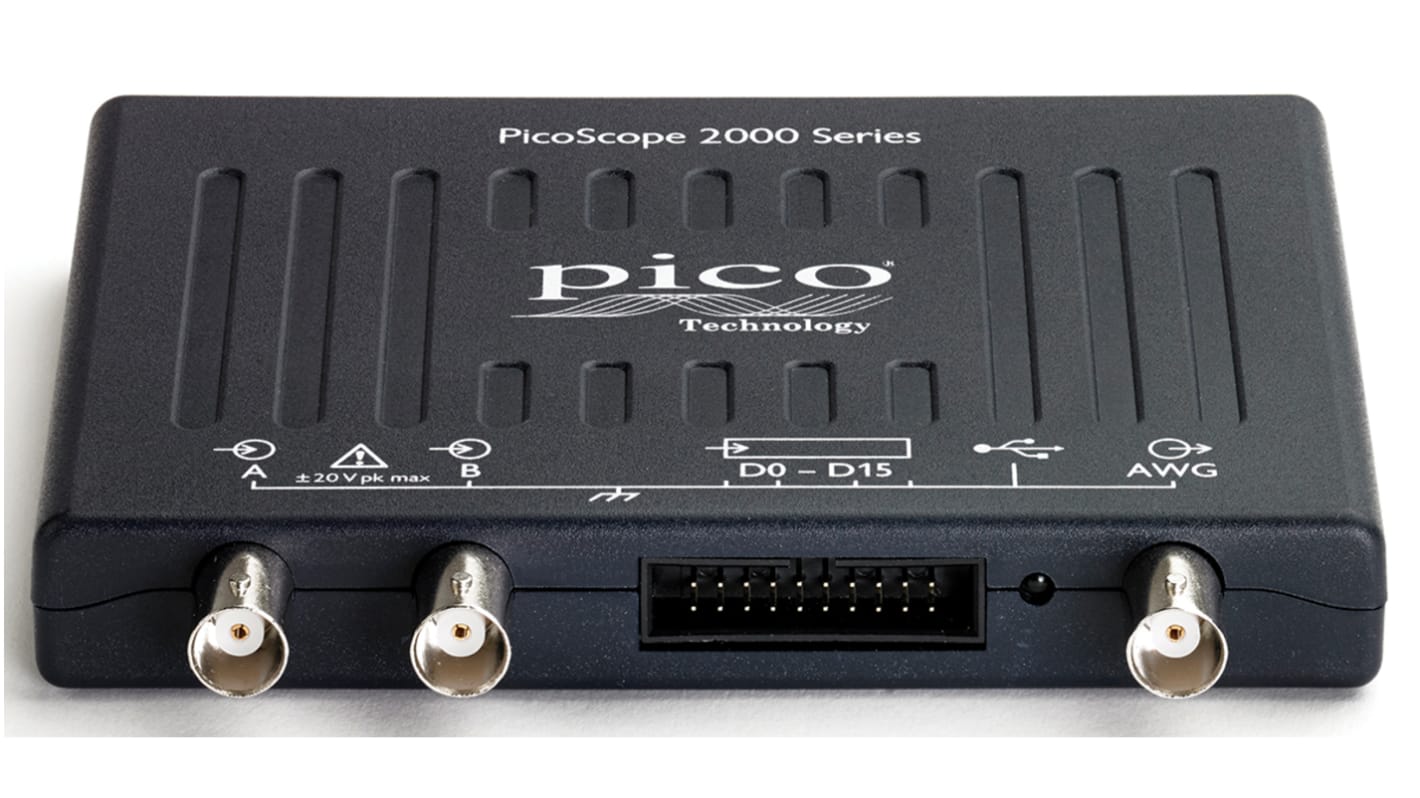

PicoScope 2205A MSO 2-channel 25 MHz PC Oscilloscope


PicoScope 2205A MSO is a 25 MHz 2-channel mixed signal oscilloscope which also functions as a 16-channel logic analyser, sampling at a maximum of 500 MS/s. It features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. The 2205A MSO has a buffer memory of 48 kS and a 1 MHz AWG signal generator. Automatic measurements are available in scope mode and in spectrum mode. Serial decoding is a standard PicoScope feature and includes SPI, I2C, FlexRay, CANbus, LINbus and ARINC.
The 2205A MSO offers excellent waveform visualisation and measurement, as well as fast waveform update rates. It delivers the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots. The PicoScope 2205A MSO takes advantage of the computing, display and communication power of an attached laptop or desktop PC.

Features and Benefits


Powerful, portable, compact
2 analog/16 digital channels
25 MHz bandwidth
Built-in arbitrary waveform generator
USB connected and powered
Serial decoding/FFT advanced waveform analysis included
Excellent signal integrity
Dimensions 130 x 104 x 18.8 mm
Weight <200 g
Input capacitance is 8pF
Sampling rate is 500MSa/s with 48KS buffer
Input impedance is 200Kohm

Areas of Application


Design
Test
Education
Service
Monitoring
Fault-finding
Repair

Note

Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www.picotech.com: PicoScope 6 (beta) for Linux and OS X; SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese; Czech; Danish; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Norwegian; Polish; Portuguese; Romanian; Russian; Spanish; Swedish; Turkish.
Extra and/or replacement probes, cable and test clips are available separately.

Standards

EN 61010-1:2010

Supplied with

USB 2.0 cable, passive probes (x2), digital input cable, logic test clips (x20), quick start guide and software
