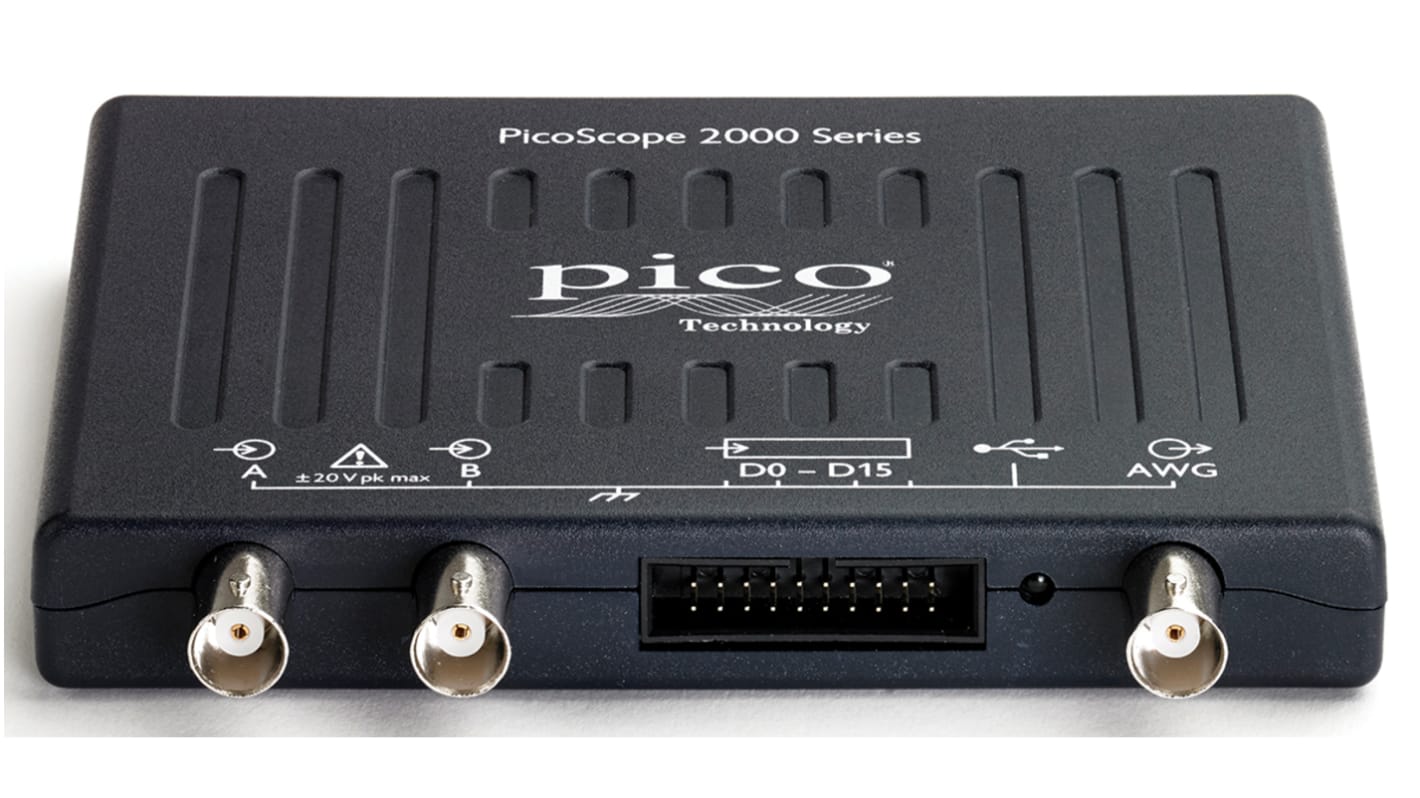

Pico Technology PQ011 PicoScope 2000 Series, 100MHz PC Based Oscilloscope, 2 Analogue Channels, 16 Digital Channels -

RS Stock No.:: 111-7044
Mfr. Part No.:: PicoScope 2208B MSO
Brand:: Pico Technology

Pico Technology PQ011 PicoScope 2000 Series, 100MHz PC Based Oscilloscope, 2 Analogue Channels, 16 Digital Channels -

Subtotal (1 unit)*

£1,014.66

(exc. VAT)

£1,217.59

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,014.66

*price indicative

Don't forget your Probe

Whatever Oscilloscope you're in the market for, we have the probe to match.

Shop our full range of Probes here

RS Stock No.:: 111-7044
Mfr. Part No.:: PicoScope 2208B MSO
Brand:: Pico Technology

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Pico Technology
	Bandwidth	100MHz
	Number of Analogue Channels	2
	Number of Digital Channels	16
	Calibrated	RSCAL
	Oscilloscope Type	PC Based
	Oscilloscope Form	Mixed Signal
	Interface	CAN, IIC, LIN, RS232, SPI, UART, USB
	Sample Rate Random	1 Gsps
	Series	PicoScope 2000
	Minimum Time Base	1ns/div
	Input Impedance	200 kΩ
	Minimum Vertical Sensitivity	4mV/div
	Weight	<200g
	Vertical Resolution	8 bit
	Maximum Time Base	5000s/div
	Input Capacitance	8 pF
	Dimensions	130 x 104 x 18.8mm
	Rise Time	3.5ns
	Digital/Analogue	Digital
	Maximum Vertical Sensitivity	4V/div
	Power Source	USB

	Select all
	Brand Pico Technology
	Bandwidth 100MHz
	Number of Analogue Channels 2
	Number of Digital Channels 16
	Calibrated RSCAL
	Oscilloscope Type PC Based
	Oscilloscope Form Mixed Signal
	Interface CAN, IIC, LIN, RS232, SPI, UART, USB
	Sample Rate Random 1 Gsps
	Series PicoScope 2000
	Minimum Time Base 1ns/div
	Input Impedance 200 kΩ
	Minimum Vertical Sensitivity 4mV/div
	Weight <200g
	Vertical Resolution 8 bit
	Maximum Time Base 5000s/div
	Input Capacitance 8 pF
	Dimensions 130 x 104 x 18.8mm
	Rise Time 3.5ns
	Digital/Analogue Digital
	Maximum Vertical Sensitivity 4V/div
	Power Source USB

Datasheet

COO (Country of Origin):: GB

Areas of Application

Design
Test
Education
Service
Monitoring
Fault-finding
Repair

Note

Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www.picotech.com: PicoScope 6 (beta) for Linux and OS X; SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese; Czech; Danish; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Norwegian; Polish; Portuguese; Romanian; Russian; Spanish; Swedish; Turkish. Extra and/or replacement probes, cable and test clips are available separately.

Standards

EN 61010-1:2010

Supplied with

USB 2.0 cable, passive probes (x2), digital input cable, logic test clips (x20), quick start guide, software and reference CD

Pico Technology Mixed Signal Oscilloscope

The Pico Technology 2000 series 100MHz mixed-signal oscilloscope functions as a 16-channel logic analyser. This product has 2 analogue and 16 digital channels. It features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. This oscilloscope also offers an excellent waveform visualisation and measurement with fast waveform update rates. It delivers the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots.
Note:
Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10

32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10

32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www. Picotech. Com: PicoScope 6 (beta) for Linux and OS X

SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese

Czech

Danish

Dutch

English

French

German

Greek

Hungarian

Italian

Japanese

Korean

Norwegian

Polish

Portuguese

Romanian

Russian

Spanish

Swedish

Turkish. Extra and/or replacement probes, cable and test clips are available separately.
Supplied with
USB 2.0 cable
Passive probes (x2)
Digital input cable
Logic test clips (x20)
Quick start guide
Software and reference CD

Features and Benefits

Input capacitance is 8pF
Sampling rate is 1GSa/s with 128MS buffer
Operating temperature ranges between 0oC and 50oC
Input impedance is 200Kohm
USB connected and powered
Serial decoding/FFT advanced waveform analysis included
Excellent signal integrity

Applications

Design
Test
Education
Servicing
Monitoring
Fault finding
Repairs

Certifications
