Rohde & Schwarz RTH Series, 500 MHz Bench Oscilloscope, 4 Channels, UKAS
- RS Stock No.:
- 478-057
- Mfr. Part No.:
- RTH-BNDL
- Brand:
- Rohde & Schwarz
Subtotal (1 unit)*
£7,217.97
(exc. VAT)
£8,661.56
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7,217.97 |
*price indicative
- RS Stock No.:
- 478-057
- Mfr. Part No.:
- RTH-BNDL
- Brand:
- Rohde & Schwarz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rohde & Schwarz | |
| Product Type | Oscilloscope | |
| Bandwidth | 500MHz | |
| Number of Channels | 4 | |
| Oscilloscope Type | Bench | |
| Interface Type | LAN, mini USB-B, RJ45, SDHC, USB 2.0 | |
| Memory Depth | 2Mpts | |
| Screen Size | 7 in | |
| Series | RTH | |
| Standards/Approvals | CISPR 11/EN 55011, EN 60068-2-6, EN 60068-2-64, IEC 60068-2-30, IEC 60529, MIL-PRF-28800F, MIL-STD-810E | |
| Minimum Time Base | 1ns/div | |
| Maximum Vertical Sensitivity | 100V/div | |
| Waveform Refresh Rate | 50000wfms/s | |
| Maximum Time Base | 500s/div | |
| Calibrated | UKAS | |
| Minimum Vertical Sensitivity | 2mV/div | |
| Battery Type | Lithium-ion | |
| Plug Type | USB | |
| Vertical Resolution | 16 bit | |
| Display Type | TFT LCD | |
| Safety Category Level | Steady, Negative | |
| Safety Category Voltage | 1000V | |
| Power Source | Battery | |
| Select all | ||
|---|---|---|
Brand Rohde & Schwarz | ||
Product Type Oscilloscope | ||
Bandwidth 500MHz | ||
Number of Channels 4 | ||
Oscilloscope Type Bench | ||
Interface Type LAN, mini USB-B, RJ45, SDHC, USB 2.0 | ||
Memory Depth 2Mpts | ||
Screen Size 7 in | ||
Series RTH | ||
Standards/Approvals CISPR 11/EN 55011, EN 60068-2-6, EN 60068-2-64, IEC 60068-2-30, IEC 60529, MIL-PRF-28800F, MIL-STD-810E | ||
Minimum Time Base 1ns/div | ||
Maximum Vertical Sensitivity 100V/div | ||
Waveform Refresh Rate 50000wfms/s | ||
Maximum Time Base 500s/div | ||
Calibrated UKAS | ||
Minimum Vertical Sensitivity 2mV/div | ||
Battery Type Lithium-ion | ||
Plug Type USB | ||
Vertical Resolution 16 bit | ||
Display Type TFT LCD | ||
Safety Category Level Steady, Negative | ||
Safety Category Voltage 1000V | ||
Power Source Battery | ||
- COO (Country of Origin):
- CZ

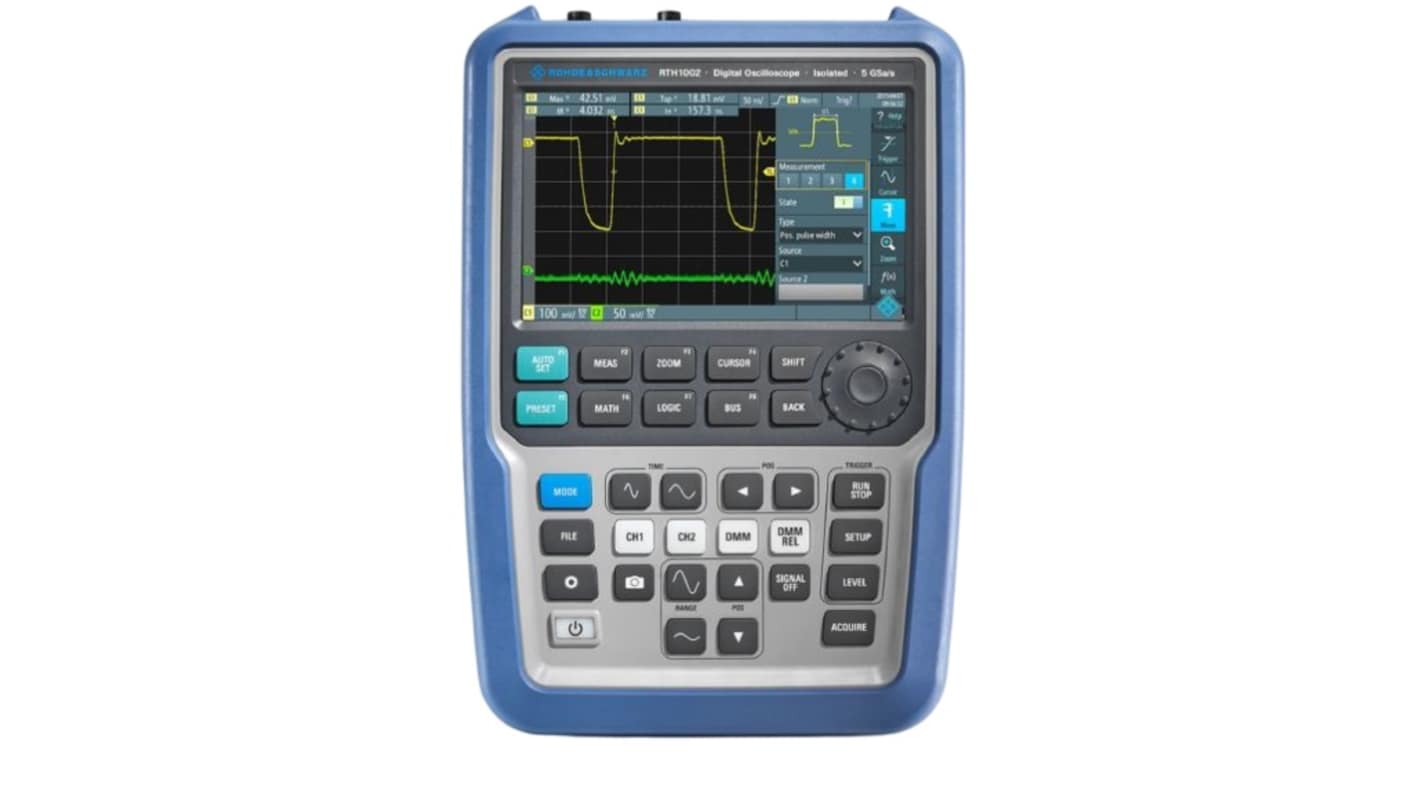

RTH-BNDL Handheld Oscilloscope Bundle – Rohde & Schwarz
The Rohde & Schwarz Handheld oscilloscope offers high-performance signal analysis with bandwidths from 60 MHz to 500 MHz and a fast sampling rate up to 5 GSa/s. Its robust design includes isolated channels rated CAT IV 600 V / CAT III 1000 V for safe industrial and field use. Combining Advanced signal analysis, versatile troubleshooting tools and isolated channels.
10 bit ADC resolution for detailed waveform capture
Isolated input channels rated CAT IV 600 V / CAT III 1000 V
Up to 5 GSa/s sampling rate for detailed waveform capture and analysis
4 isolated channels for safe measurements in industrial and high-voltage environments
500 MHz bandwidth for accurate analysis of fast signals and complex waveforms
Protocol triggering and decoding for interfaces such as I²C, SPI, UART/RS-232, CAN, CAN-FD, LIN, SENT, and MIL-STD-1553
