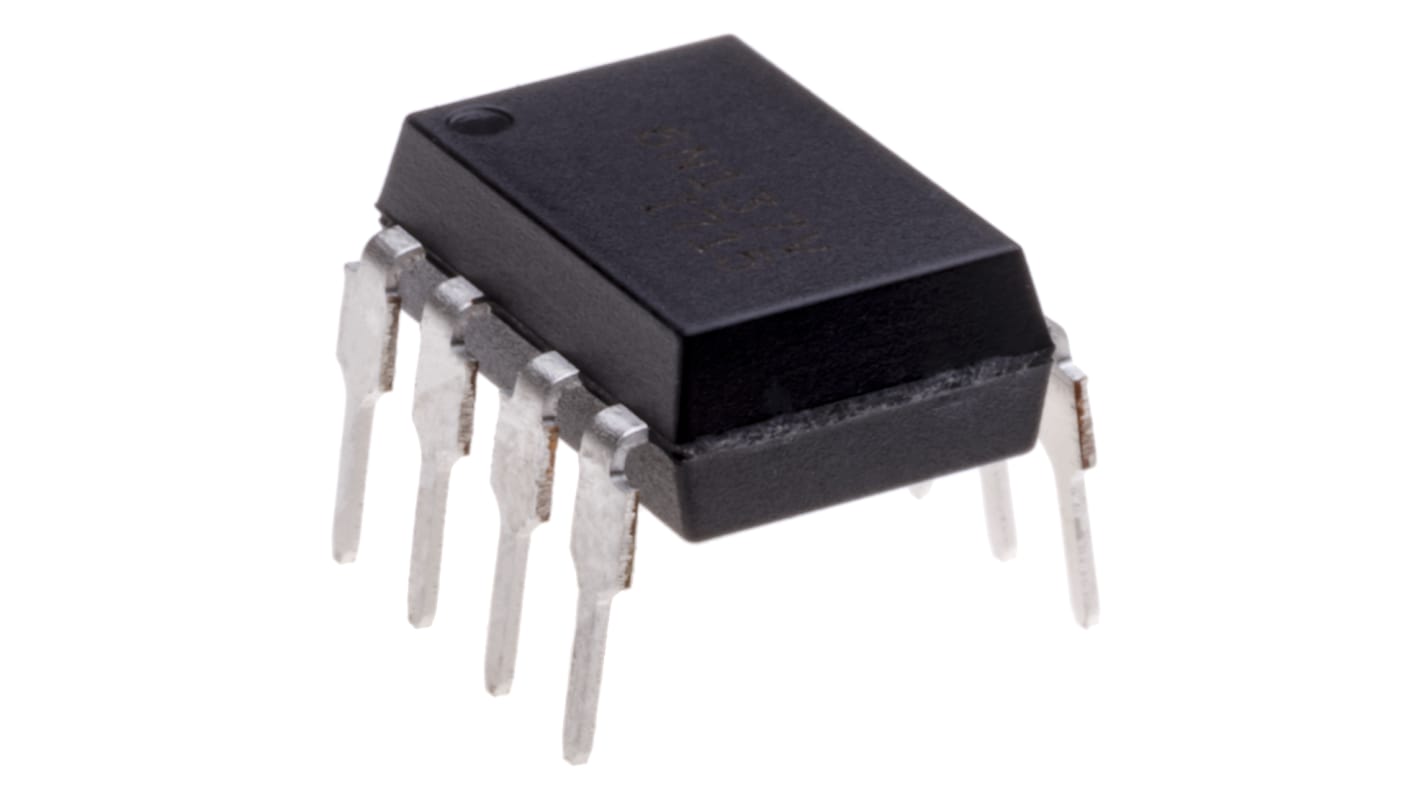

Isocom, TIL198B AC Input Darlington Output Dual Optocoupler, Through Hole, 8-Pin
- RS Stock No.:
- 161-1249
- Mfr. Part No.:
- TIL198B
- Brand:
- Isocom
Save 8% when you buy 500 units
Subtotal (1 pack of 10 units)*
£8.37
(exc. VAT)
£10.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 900 unit(s) ready to ship
- Plus 999,999,090 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 40 | £0.837 | £8.37 |
50 - 90 | £0.82 | £8.20 |
100 - 240 | £0.802 | £8.02 |
250 - 490 | £0.787 | £7.87 |
500 + | £0.77 | £7.70 |
*price indicative
- RS Stock No.:
- 161-1249
- Mfr. Part No.:
- TIL198B
- Brand:
- Isocom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Isocom | |
Mounting Type | Through Hole | |
Output Device | Darlington | |
Maximum Forward Voltage | 1.4V | |
Number of Channels | 2 | |
Number of Pins | 8 | |
Input Current Type | AC | |
Typical Rise Time | 100µs | |
Maximum Input Current | 50 mA | |
Isolation Voltage | 5300 Vrms | |
Maximum Current Transfer Ratio | 7500% | |
Minimum Current Transfer Ratio | 1500% | |
Typical Fall Time | 100µs | |
Series | TIL198 | |
Select all | ||
---|---|---|
Brand Isocom | ||
Mounting Type Through Hole | ||
Output Device Darlington | ||
Maximum Forward Voltage 1.4V | ||
Number of Channels 2 | ||
Number of Pins 8 | ||
Input Current Type AC | ||
Typical Rise Time 100µs | ||
Maximum Input Current 50 mA | ||
Isolation Voltage 5300 Vrms | ||
Maximum Current Transfer Ratio 7500% | ||
Minimum Current Transfer Ratio 1500% | ||
Typical Fall Time 100µs | ||
Series TIL198 | ||
- COO (Country of Origin):
- TH
The TIL197, TIL198, TIL199 series of optically coupled isolators consist of infrared light emitting diodes and NPN silicon photo darlingtons in space efficient dual in line plastic packages. The standard parts TIL197, TIL198, TIL199 are tested for a CTR of 500% minimum. Parts with the suffix A or B are tested for a CTR of 1000 and 1500% minimum respectively.
High Current Transfer Ratio (500%min)
High Isolation Voltage (5.3kVRMS, 7.5kVPK)
All electrical parameters 100% tested
APPLICATIONS:
Computer terminals
Industrial systems controllers
Measuring instruments
Signal transmission between systems of different potentials and impedances
High Isolation Voltage (5.3kVRMS, 7.5kVPK)
All electrical parameters 100% tested
APPLICATIONS:
Computer terminals
Industrial systems controllers
Measuring instruments
Signal transmission between systems of different potentials and impedances
