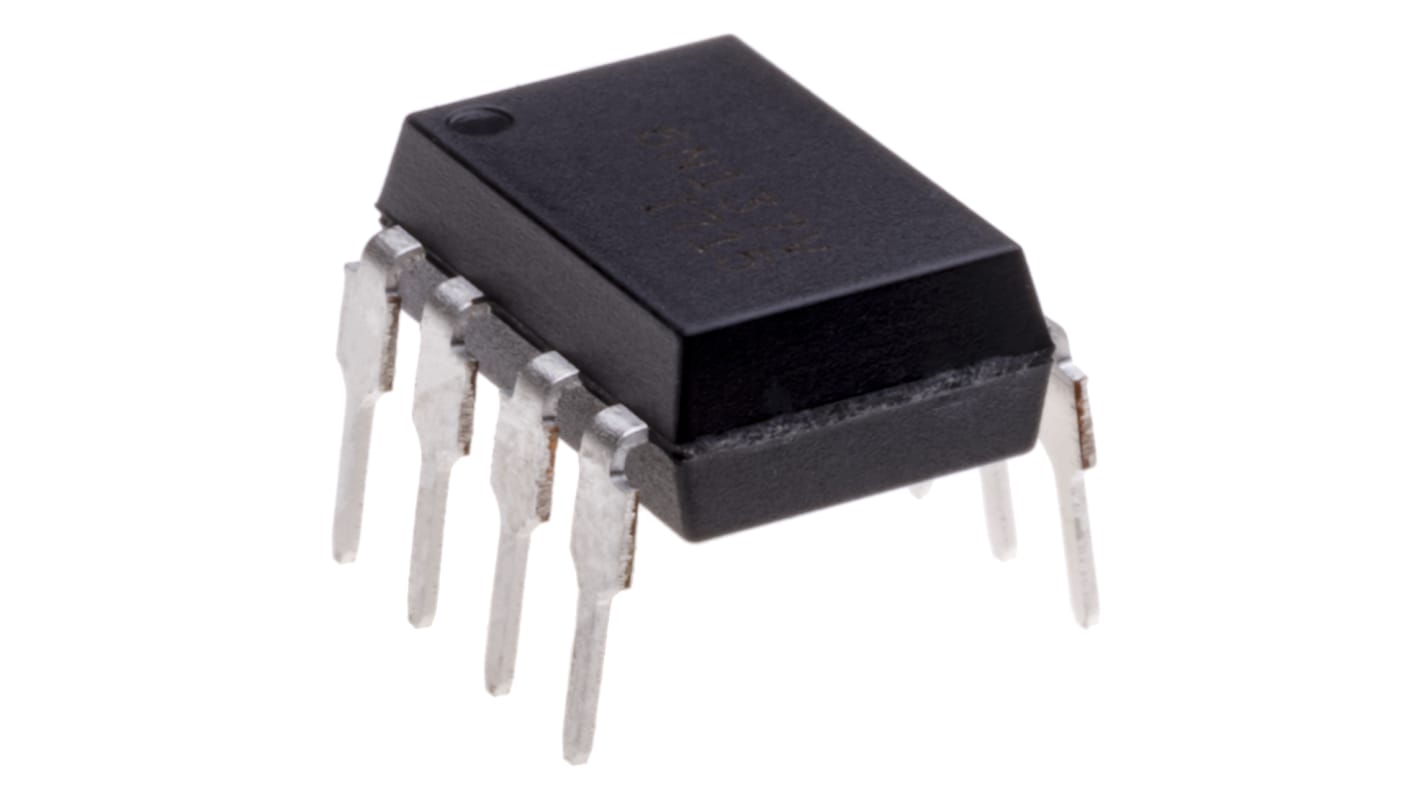

Isocom, TIL198B AC Input Darlington Output Dual Optocoupler, Through Hole, 8-Pin

View all Optocouplers
Bulk discount available

Subtotal (1 tube of 50 units)*

£28.50

(exc. VAT)

£34.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 900 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
50 - 50£0.57£28.50
100 - 200£0.549£27.45
250 +£0.531£26.55

*price indicative

RS Stock No.:
161-1111
Mfr. Part No.:
TIL198B
Brand:
Isocom
Find similar products by selecting one or more attributes.
Select all

Brand

Isocom

Mounting Type

Through Hole

Output Device

Darlington

Maximum Forward Voltage

1.4V

Number of Channels

2

Number of Pins

8

Input Current Type

AC

Typical Rise Time

100µs

Maximum Input Current

50 mA

Isolation Voltage

5300 Vrms

Maximum Current Transfer Ratio

7500%

Minimum Current Transfer Ratio

1500%

Typical Fall Time

100µs

Series

TIL198

COO (Country of Origin):
TH
The TIL197, TIL198, TIL199 series of optically coupled isolators consist of infrared light emitting diodes and NPN silicon photo darlingtons in space efficient dual in line plastic packages. The standard parts TIL197, TIL198, TIL199 are tested for a CTR of 500% minimum. Parts with the suffix A or B are tested for a CTR of 1000 and 1500% minimum respectively.

High Current Transfer Ratio (500%min)
High Isolation Voltage (5.3kVRMS, 7.5kVPK)
All electrical parameters 100% tested

APPLICATIONS:
Computer terminals
Industrial systems controllers
Measuring instruments
Signal transmission between systems of different potentials and impedances
