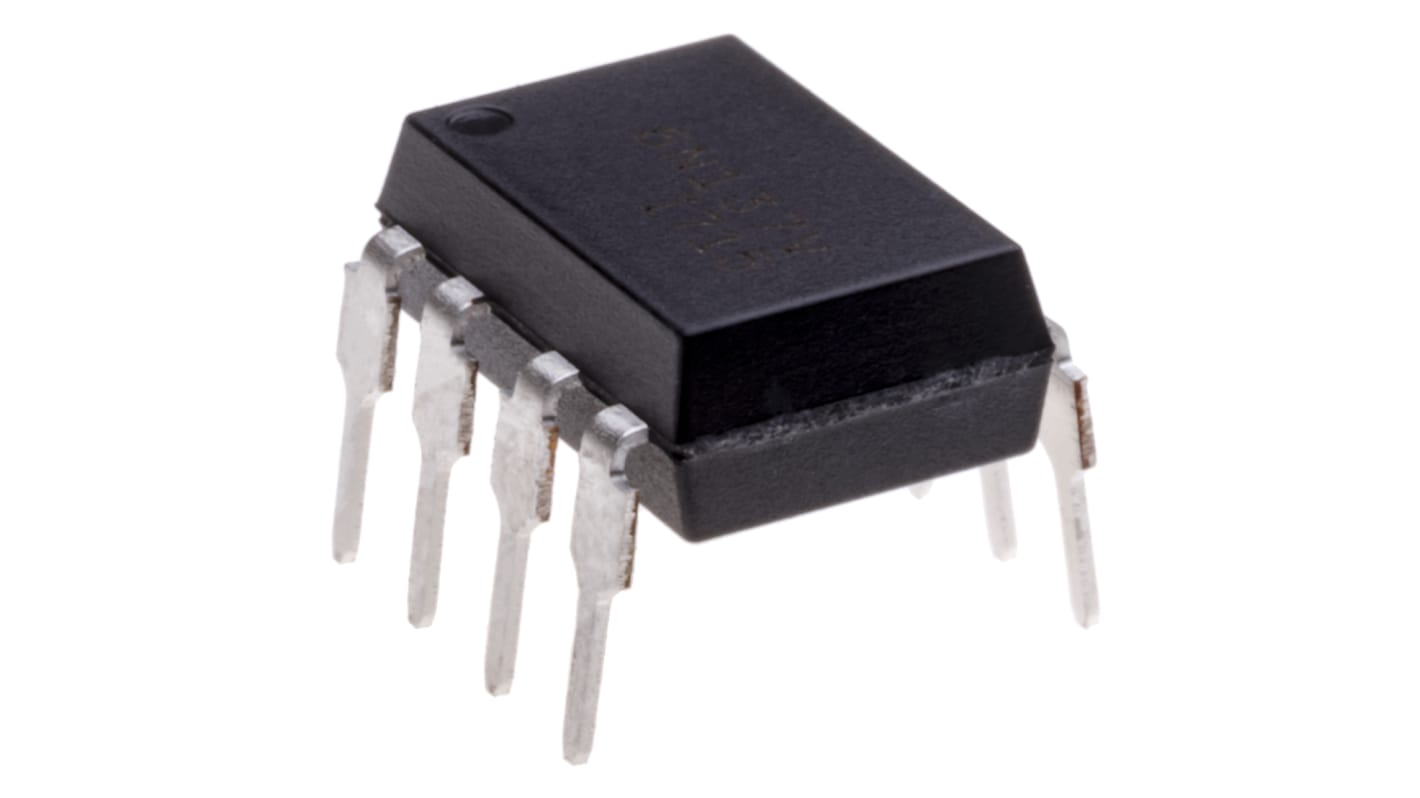

Isocom, TLP620-2 AC Input NPN Phototransistor Output Dual Optocoupler, Through Hole, 8-Pin DIP
- RS Stock No.:
- 161-1191
- Mfr. Part No.:
- TLP620-2
- Brand:
- Isocom
Bulk discount available
Subtotal (1 pack of 10 units)*
£7.76
(exc. VAT)
£9.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship
- Plus 70 unit(s) ready to ship from another location
- Plus 430 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.776 | £7.76 |
| 100 - 240 | £0.76 | £7.60 |
| 250 - 490 | £0.745 | £7.45 |
| 500 - 990 | £0.729 | £7.29 |
| 1000 + | £0.715 | £7.15 |
*price indicative
- RS Stock No.:
- 161-1191
- Mfr. Part No.:
- TLP620-2
- Brand:
- Isocom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Isocom | |
| Mounting Type | Through Hole | |
| Output Device | NPN Phototransistor | |
| Maximum Forward Voltage | 1.3V | |
| Number of Channels | 2 | |
| Number of Pins | 8 | |
| Package Type | DIP | |
| Input Current Type | AC | |
| Typical Rise Time | 4µs | |
| Maximum Input Current | ±50 mA | |
| Isolation Voltage | 5300 Vrms | |
| Maximum Current Transfer Ratio | 600% | |
| Minimum Current Transfer Ratio | 50% | |
| Typical Fall Time | 3µs | |
| Series | TLP620 | |
Select all | ||
|---|---|---|
Brand Isocom | ||
Mounting Type Through Hole | ||
Output Device NPN Phototransistor | ||
Maximum Forward Voltage 1.3V | ||
Number of Channels 2 | ||
Number of Pins 8 | ||
Package Type DIP | ||
Input Current Type AC | ||
Typical Rise Time 4µs | ||
Maximum Input Current ±50 mA | ||
Isolation Voltage 5300 Vrms | ||
Maximum Current Transfer Ratio 600% | ||
Minimum Current Transfer Ratio 50% | ||
Typical Fall Time 3µs | ||
Series TLP620 | ||
- COO (Country of Origin):
- TH
The TLP620, TLP620-2, TLP620-4_ Series of Optically Coupled Isolators Consist of Two Infrared Light Emitting diodes connected in Inverse Parallel and NPN Silicon Photo Transistors in Space Efficient Dual in Line Plastic Packages
High Isolation Voltage (5.3 kVrms, 7.5kVpk)
All Electrical Parameters 100% Tested
Computer Terminals
Industrial Systems Controllers
Telephone Sets, Telephone Exchanges
Signal Transmission between Systems of Different Potentials and Impedances
All Electrical Parameters 100% Tested
Computer Terminals
Industrial Systems Controllers
Telephone Sets, Telephone Exchanges
Signal Transmission between Systems of Different Potentials and Impedances
