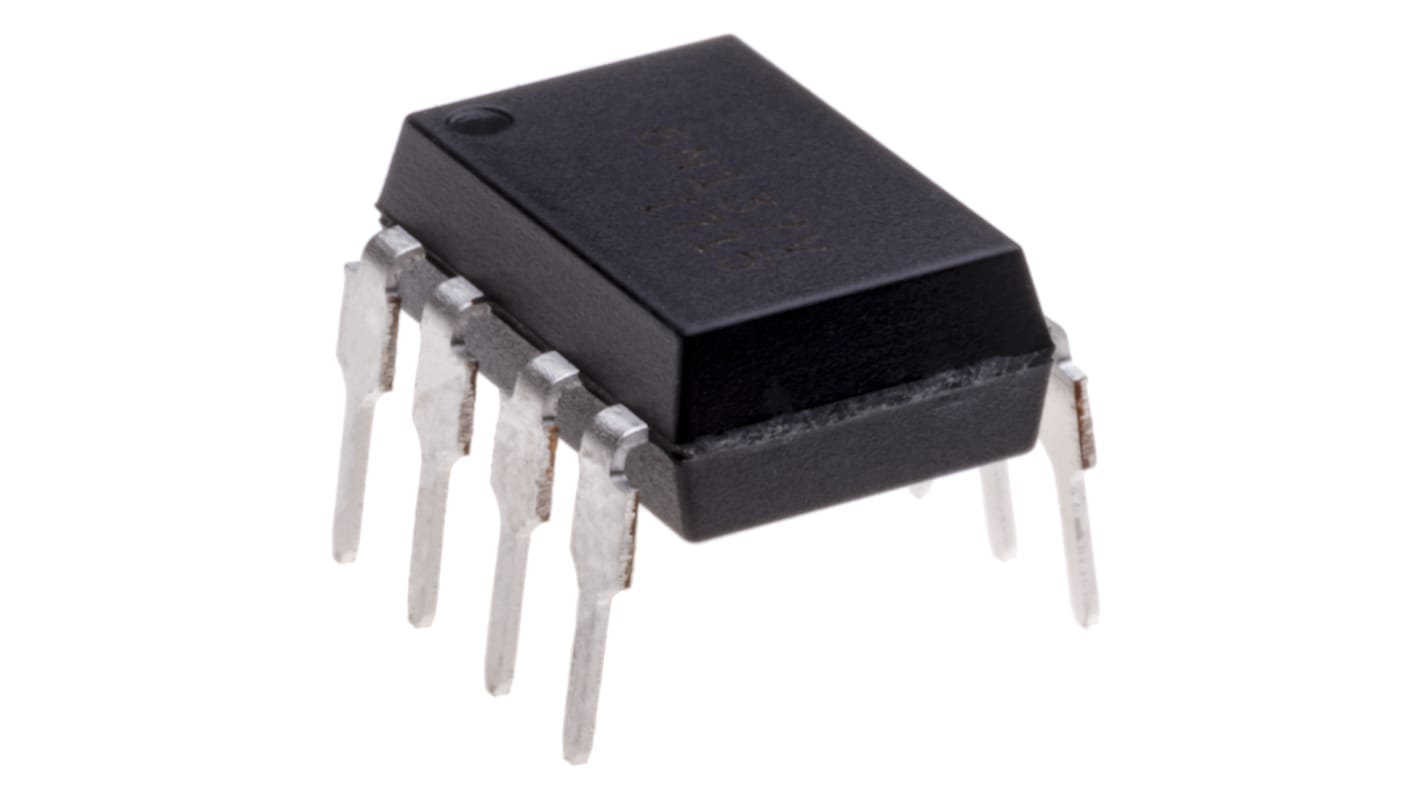

Isocom AC Input 2-Channel Optocoupler, Surface Mount, 8-Pin DIP
- RS Stock No.:
- 161-1107
- Mfr. Part No.:
- MOCD207
- Brand:
- Isocom
Bulk discount available
Subtotal (1 reel of 2000 units)*
£800.00
(exc. VAT)
£960.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 - 2000 | £0.40 | £800.00 |
| 4000 + | £0.377 | £754.00 |
*price indicative
- RS Stock No.:
- 161-1107
- Mfr. Part No.:
- MOCD207
- Brand:
- Isocom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Isocom | |
| Product Type | Optocoupler | |
| Mount Type | Surface Mount | |
| Maximum Forward Voltage | 1.5V | |
| Packaging | Tape & Reel | |
| Number of Channels | 2 | |
| Number of Pins | 8 | |
| Package Type | DIP | |
| Input Current Type | AC | |
| Typical Rise Time | 1.6μs | |
| Maximum Input Current | 60mA | |
| Isolation Voltage | 3750Vrms | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 110°C | |
| Maximum Current Transfer Ratio | 200% | |
| Minimum Current Transfer Ratio | 100% | |
| Typical Fall Time | 2.2μs | |
| Standards/Approvals | UL | |
| Series | MOC | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Isocom | ||
Product Type Optocoupler | ||
Mount Type Surface Mount | ||
Maximum Forward Voltage 1.5V | ||
Packaging Tape & Reel | ||
Number of Channels 2 | ||
Number of Pins 8 | ||
Package Type DIP | ||
Input Current Type AC | ||
Typical Rise Time 1.6μs | ||
Maximum Input Current 60mA | ||
Isolation Voltage 3750Vrms | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 110°C | ||
Maximum Current Transfer Ratio 200% | ||
Minimum Current Transfer Ratio 100% | ||
Typical Fall Time 2.2μs | ||
Standards/Approvals UL | ||
Series MOC | ||
Automotive Standard No | ||
The MOCD207 Optically Coupled Isolators Consist of Two Infrared Light Emitting diodes and Two NPN Silicon Photo Transistors in Space Efficient Dual in Line Plastic Packages
Super Small Outline
Special Selection CTR 100 to 200%
High Isolation Voltage (3750 Vrms)
All Electrical Parameters 100% Tested
Feedback Control Circuits
Interfacing and Coupling Systems of Different potential AMD Impedances
General Purpose Switching Circuits
Monitor and Detection Circuits
