Megger Ohmmeter, 0.01 mΩ, Voltage, Current

RS Stock No.:: 265-5882
Distrelec Article No.:: 302-48-316
Mfr. Part No.:: 1008-047
Brand:: Megger

Megger Ohmmeter, 0.01 mΩ, Voltage, Current

Subtotal (1 unit)*

£4,040.00

(exc. VAT)

£4,848.00

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

2 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£4,040.00

*price indicative

RS Stock No.:: 265-5882
Distrelec Article No.:: 302-48-316
Mfr. Part No.:: 1008-047
Brand:: Megger

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Megger
	Product Type	Ohmmeter
	Resistance Resolution	0.01mΩ
	Measurement Type	Voltage, Current
	Battery Life	7h
	Battery Type	6V-7Ah Sealed Lead Acid
	Power Source	Mains
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Maximum Accuracy	±10 %
	Standards/Approvals	No
	Width	285mm
	Height	181mm
	Length	315mm
	Weight	6.7kg
	Minimum Accuracy	0.2 %

	Select all
	Brand Megger
	Product Type Ohmmeter
	Resistance Resolution 0.01mΩ
	Measurement Type Voltage, Current
	Battery Life 7h
	Battery Type 6V-7Ah Sealed Lead Acid
	Power Source Mains
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Maximum Accuracy ±10 %
	Standards/Approvals No
	Width 285mm
	Height 181mm
	Length 315mm
	Weight 6.7kg
	Minimum Accuracy 0.2 %

COO (Country of Origin):: GB

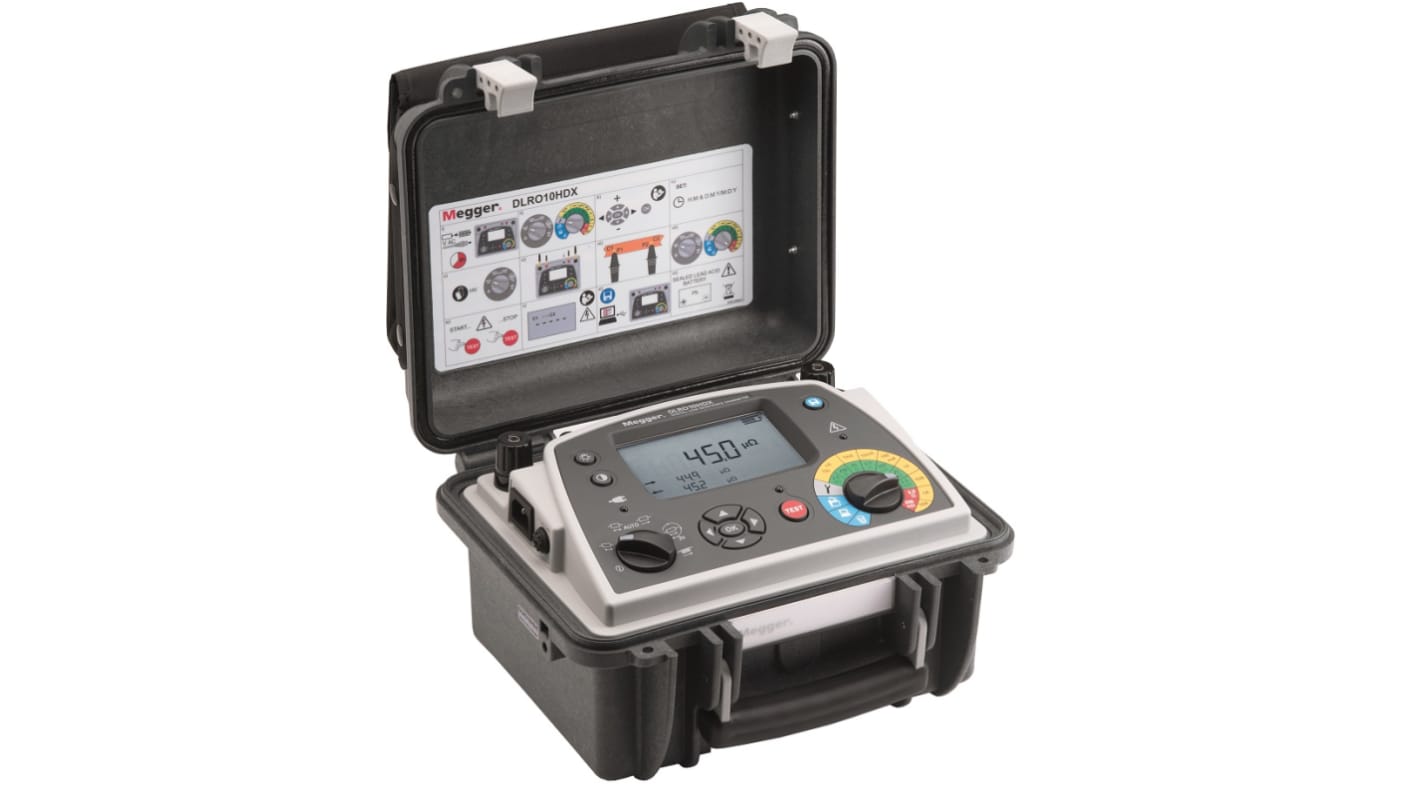

Megger Ohmmeter, 100μA to 10A Test Current Range, 100 to 240V Voltage Input Range - DLRO10 Series - 1008-047

When you want precision in your resistance measurements, turn to this ohmmeter from Megger. It delivers readings with an accuracy of ±0.2% ±50μΩ from 0 to 250mΩ and ±0.2% ±200mΩ from 10 to 2.5kΩ. The component has two rotary dials to quickly toggle between auto, continuous and conductive testing modes. Thanks to its broad operating temperature range of -10°C to +50°C, this device is ideal for applications in demanding industrial environments.

Features & Benefits

• IP54 rating shows it's partially dust-protected and resists water sprays from any direction

• Onboard storage for 200 test results, limiting the risk of costly data loss

• Backlit LCD with adjustable contrast for hassle-free reading, even in low-light conditions

• Compact size of 315 (L) x 285 (W) x 181mm (H) is easy to store and transport

• Automatic power-off function conserves energy

Applications

• Industrial automation

• Circuit building

• Domestic electrical systems

• Appliance repairs

What's the battery life of this unit?

This ohmmeter's battery lasts for more than 1000 auto-mode tests lasting three seconds each, so you get plenty of juice to tackle on-the-go testing jobs.
