Keithley 6517B/E Bench Digital Multimeter, 20mA ac Max, 20mA dc Max, 200V ac Max

RS Stock No.:: 760-0313
Distrelec Article No.:: 110-93-777
Mfr. Part No.:: 6517B/E
Brand:: Keithley

Keithley 6517B/E Bench Digital Multimeter, 20mA ac Max, 20mA dc Max, 200V ac Max

Subtotal (1 unit)**

£11,300.00

(exc. VAT)

£13,560.00

(inc. VAT)

1 In stock - FREE next working day delivery available*

2 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Units	Per unit
1 +	£11,300.00

**price indicative

RS Stock No.:: 760-0313
Distrelec Article No.:: 110-93-777
Mfr. Part No.:: 6517B/E
Brand:: Keithley

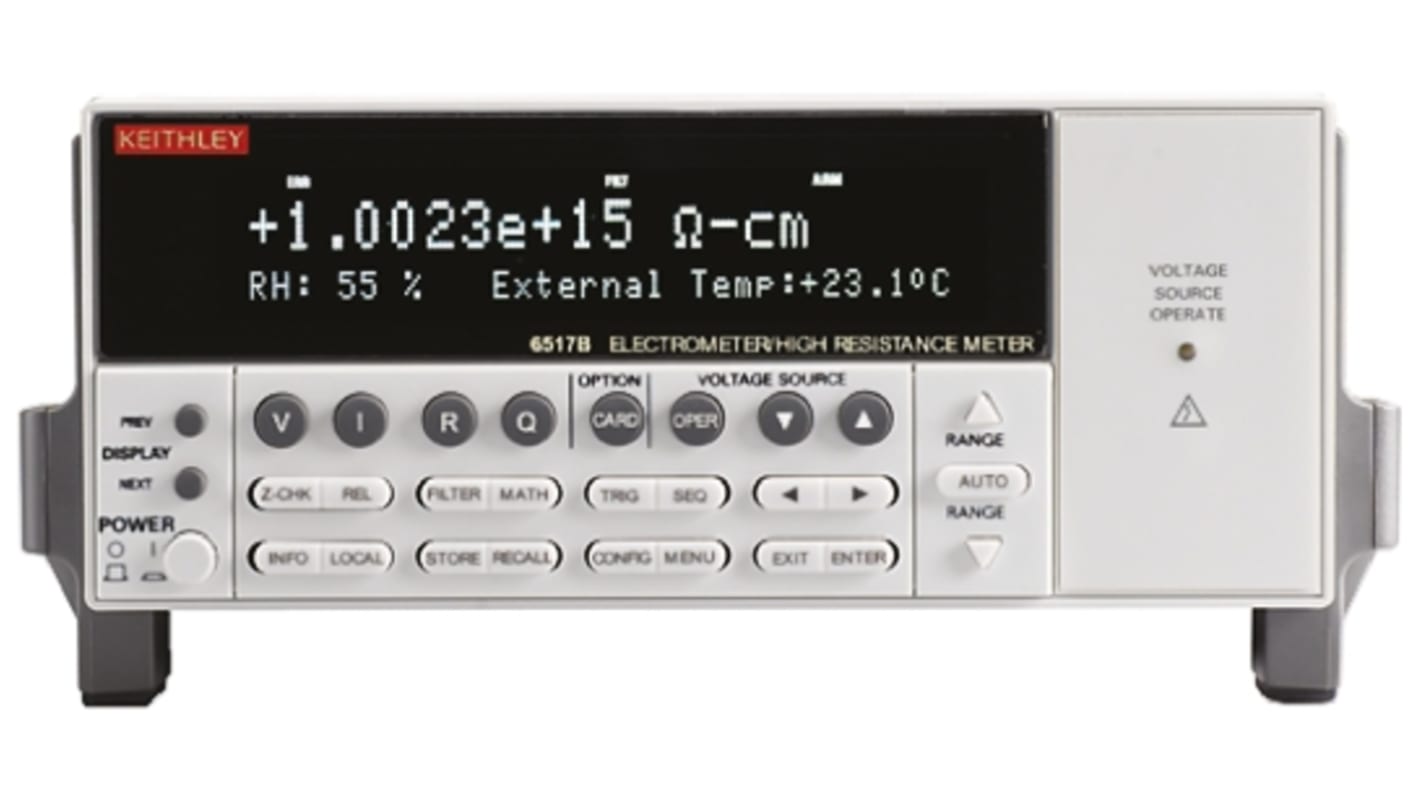

Keithley 6517B Electrometer/High Resistance Meter

The Keithley 6517B Electrometer is a high resistance 5-digitmultimeter that is the worldwide research laboratory standard for sensitive measurements. 6517B provides reliable measurements of current levels down to 10aA, charge levels down to 1 fC including the highest resistance measurements available. The multimeter is capable of measuring the largest voltage range to 200 V with an input impedance exceeding 200 TΩ. Its low noise and drift performance make it ideal for research on single electron devices, highly resistive nanowires and nanotubes, polymers, and electrochemical applications.

Features and Benefits

• Measures resistances up to 1018 Ω
• 10 aA (10x10–18 A) current measurement resolution
• Complete hardware-software solution for ASTM D257 high resistivity measurements with the 6517B, 8009 Resistivity Test Fixture, and the KickStart High Resistivity Application
• <3 fA input bias current
• 6-digit high accuracy measurement mode
• <20 μV burden voltage on the lowest current ranges
• Voltage measurements up to 200 V with >200 TΩ input impedance
• Built-in ±1000 V voltage source
• Unique alternating polarity voltage sourcing and measurement method for high resistance measurements
• Built-in test sequences for four different device characterization tests, surface and volume resistivity, surface insulation resistance, and voltage sweeping
• Optional plug-in scanner cards for testing up to ten devices or material samples with one test setup
• GPIB and RS-232 interfaces

Accessories

Electrometer Accessories
Adapters
RS Stock No. 7600339 7078-TRX-BNC (Coaxial Adapter)
RS Stock No. 7600348 7078-TRX-GND (Coaxial Adapter)
RS Stock No. 2712880 7078-TRX-TBC (Female Test Adapter)
RS Stock No. 9223007 237-BNC-TRX (BNC Feedthrough Terminator)

Cable and Interface Accessories
RS Stock No. 7600329 7078-TRX-1 (1 ft Male to Male Triaxial Cable)
RS Stock No. 7600323 7078-TRX-3 (900mm Male to Male Triaxial Cable)
RS Stock No. 7600332 7078-TRX-5 (1.5m Male to Male Triaxial Cable)
RS Stock No. 7600335 7078-TRX-10 (3m Male to Male Triaxial Cable)
RS Stock No. 2409953 8501-1 (Trigger Link Cable)
RS Stock No. 7600341 KPCI-488LPA (Low Profile IEEE-488 Interface Board)
RS Stock No. 7600345 KUSB-488B (IEEE-488.2 USB-TO-GPIB Interface Adapter)

Rack Mount Kits
RS Stock No. 9223003 4288-1 (Single Rackmount Kit)
RS Stock No. 2409953 4288-2 (Dual Rackmount Kit)

Software Options
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

Software Updates

KickStart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart
The optional high resistivity application (HRMA) for KickStart is designed for use with Keithley’s 6517B Electrometer/High Resistance Meter. The 6517B along with the 8009 Resistivity Test Fixture is a laboratory standard for volume and surface resistivity measurements on insulating materials. Together, they can be used to measure resistance up to 1018 Ω at up to 1000 V.
The KickStart high resistance measurement option makes it easier for you to:
• Quickly and reliably determine resistivity of material
using tests that conform to ASTM D257 standard.
• Perform a Step Response test to identify electrification
time appropriate to the material’s time constant.
• Observe resistivity dependence on temperature and
relative humidity of environment using optional probes
6517-TP and 6517-RH.
• Use the alternating polarity measurement technique to
eliminate inherent background currents for the most
accurate resistivity measurements

For full list of accessories, application and software options, please see datasheet

Keep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software

Applications

• Nanomaterial characterization
• Polymer electrical characterization
• Beam measurements
• Dosimetry
• Device leakage current measurements
• Insulation resistance measurements
• Optoelectronic detector characterization
• Volume and surface resistivity

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Keithley
	Multimeter Type	Bench
	Display Type	Digital
	Model Number p	6517B/E
	Functions Measured	AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
	Absolute Maximum AC Current Measurement	20mA ac
	Absolute Maximum Resistance Measurement	10^16Ω
	Absolute Maximum AC Voltage Measurement	200V ac
	Absolute Maximum DC Voltage Measurement	200V dc
	Absolute Maximum DC Current Measurement	20mA dc
	Absolute Maximum Temperature Measurement	+150°C
	DC Voltage Measurement Resolution	10µV dc
	AC Voltage Measurement Resolution	10µV ac
	Resistance Measurement Resolution	10Ω
	Best DC Voltage Accuracy	±0.06% + 3 Digits
	Dimensions	90 x 214 x 369mm
	Best Resistance Measurement Accuracy	±1.15% + 1 Digit
	Best DC Current Accuracy	±1% + 30 Digits
	Weight	5.4kg
	Length	369mm
	Width	214mm
	Best AC Current Accuracy	±1% + 30 Digits
	Maximum Operating Temperature	+50°C
	Height	90mm
	Minimum Operating Temperature	0°C
	Best Temperature Measurement Accuracy	±0.3% + 1.5 °C
	Best AC Voltage Accuracy	±0.06% + 3 Digits
