Keithley 6514/E Bench Digital Multimeter, 20mA ac Max, 20mA dc Max

RS Stock No.:: 760-0310
Distrelec Article No.:: 110-93-776
Mfr. Part No.:: 6514/E
Brand:: Keithley

Keithley 6514/E Bench Digital Multimeter, 20mA ac Max, 20mA dc Max

Subtotal (1 unit)*

£9,706.10

(exc. VAT)

£11,647.32

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship
Plus 3 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£9,706.10

*price indicative

RS Stock No.:: 760-0310
Distrelec Article No.:: 110-93-776
Mfr. Part No.:: 6514/E
Brand:: Keithley

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Keithley
	Multimeter Type	Bench
	Model Number p	6514/E
	Display Type	Digital
	Functions Measured	AC Current, AC Voltage, DC Current, DC Voltage, Resistance
	Absolute Maximum DC Voltage Measurement	200V dc
	Absolute Maximum DC Current Measurement	20mA dc
	Absolute Maximum Resistance Measurement	200GΩ
	Absolute Maximum AC Current Measurement	20mA ac
	True RMS	No
	AC Current Measurement Resolution	100A ac
	DC Current Measurement Resolution	100A
	AC Voltage Measurement Resolution	10µV ac
	Resistance Measurement Resolution	10mΩ
	DC Voltage Measurement Resolution	10µV dc
	Height	90mm
	Length	369mm
	Width	214mm
	Best AC Current Accuracy	±1% + 30 Digits
	Minimum Operating Temperature	0°C
	Best AC Voltage Accuracy	±0.025% + 4 Digits
	Dimensions	90 x 214 x 369mm
	Best DC Voltage Accuracy	±0.025% + 4 Digits
	Weight	4.6kg
	Best DC Current Accuracy	±1% + 30 Digits
	Best Resistance Measurement Accuracy	±0.2% + 10 Digits
	Maximum Operating Temperature	+50°C

	Select all
	Brand Keithley
	Multimeter Type Bench
	Model Number p 6514/E
	Display Type Digital
	Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance
	Absolute Maximum DC Voltage Measurement 200V dc
	Absolute Maximum DC Current Measurement 20mA dc
	Absolute Maximum Resistance Measurement 200GΩ
	Absolute Maximum AC Current Measurement 20mA ac
	True RMS No
	AC Current Measurement Resolution 100A ac
	DC Current Measurement Resolution 100A
	AC Voltage Measurement Resolution 10µV ac
	Resistance Measurement Resolution 10mΩ
	DC Voltage Measurement Resolution 10µV dc
	Height 90mm
	Length 369mm
	Width 214mm
	Best AC Current Accuracy ±1% + 30 Digits
	Minimum Operating Temperature 0°C
	Best AC Voltage Accuracy ±0.025% + 4 Digits
	Dimensions 90 x 214 x 369mm
	Best DC Voltage Accuracy ±0.025% + 4 Digits
	Weight 4.6kg
	Best DC Current Accuracy ±1% + 30 Digits
	Best Resistance Measurement Accuracy ±0.2% + 10 Digits
	Maximum Operating Temperature +50°C

6514 Programmable Electrometer Data Sheet

RoHS Status: Not Applicable

COO (Country of Origin):: CN

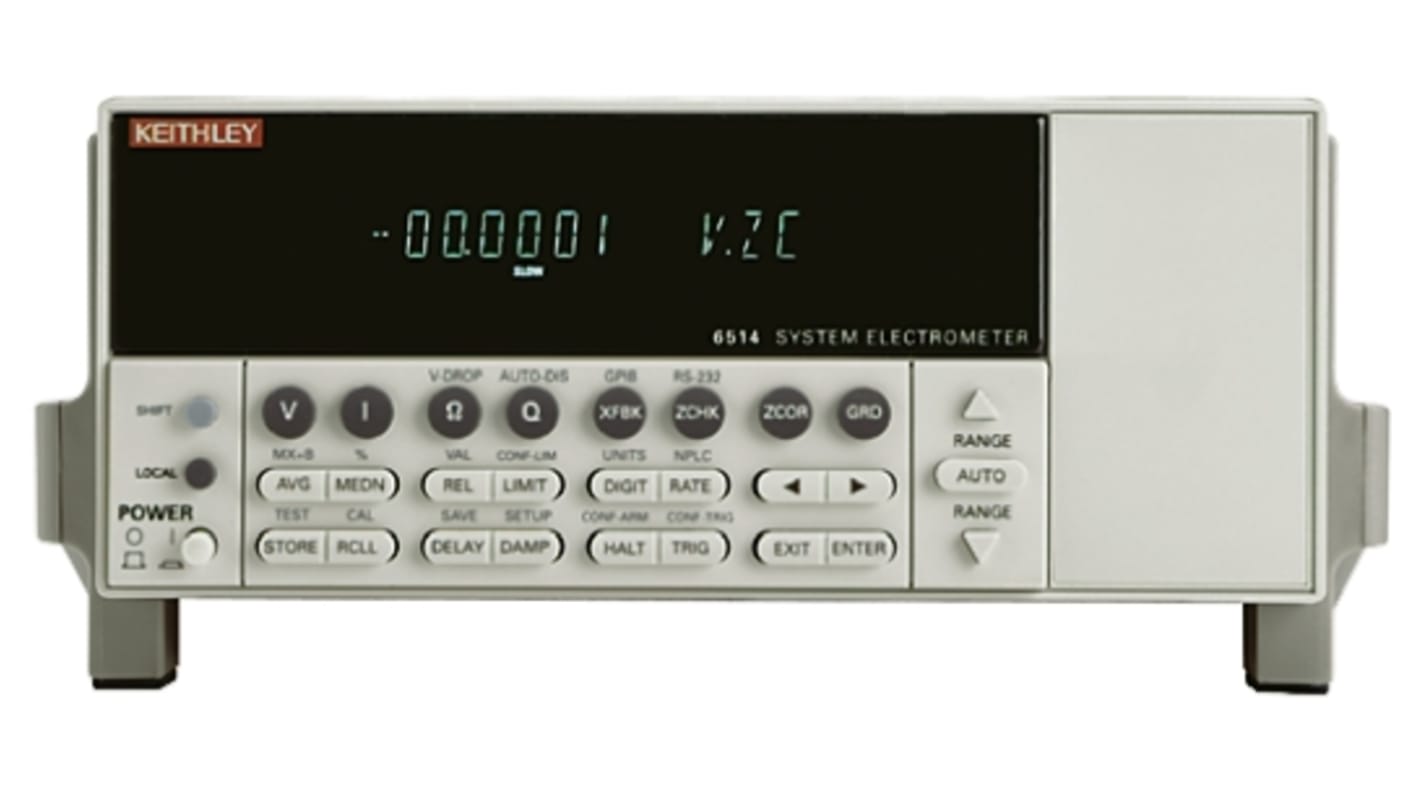

Keithley 6514/E Programmable Electrometer

The Keithley 6514/E Programmable Electrometer is a 5-digit instrument designed for fast but precise measurements of low currents, voltages from high resistance sources, charges, or high resistances. The 6514/E digital multimeter combines flexible interfacing capabilities with current sensitivity, charge measurements capabilities, resolution and speed. The cost of the 6514 is comparable with that of many high end DMMs but the 6514 offers much greater current sensitivity and significantly lower voltage burden (as low as 20μV). Applications range from testing resistance and leaking current (in switches, relays and other components) to beam experiments and measuring currents from light detectors and other sensors.

Features and Benefits

• Extremely low noise - Ensures more accurate measurements of the extremely low currents common in device and materials research.
• Low burden voltage - Eliminates errors that affect the accuracy of low current measurements.
• High measurement speeds even on low-level signals - Allows faster low-level component testing.
• Programmable digital I/O and built-in interfaces - Simplifies building automated component test systems.
• Economical Component Testing
• Low Voltage Burden
• Dark Current Measurement

Accessories

Electrometer Accessories
Adapters
RS Stock No. 7600339 7078-TRX-BNC (Coaxial adapter)
RS Stock No. 2712880 7078-TRX-TBC (Female Test Adapter)

Cable and Interface Accessories
RS Stock No. 7600329 7078-TRX-1 (1 ft Male to Male Triaxial Cable)
RS Stock No. 7600323 7078-TRX-3 (900mm Male to Male Triaxial Cable)
RS Stock No. 7600332 7078-TRX-5 (1.5m Male to Male Triaxial Cable)
RS Stock No. 7600335 7078-TRX-10 (3m Male to Male Triaxial Cable)
RS Stock No. 2409953 8501-1 (Trigger Link Cable)
RS Stock No. 7600341 KPCI-488LPA (Low Profile IEEE-488 Interface Board)
RS Stock No. 7600345 KUSB-488B (IEEE-488.2 USB-TO-GPIB Interface Adapter)

Rack Mount Kits
RS Stock No. 9223003 4288-1 (Single Rackmount Kit)
RS Stock No. 2409953 4288-2 (Dual Rackmount Kit)

Software Options
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

Software Updates

KickStart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Keep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software

Applications

• High resistivity measurements
• Leakage currents
• Ion selective electrode measurements
• pH measurements
• Conductivity cells
• Potentiometer
Economical Component Testing
Low Voltage Burden
Dark Current Measurement
