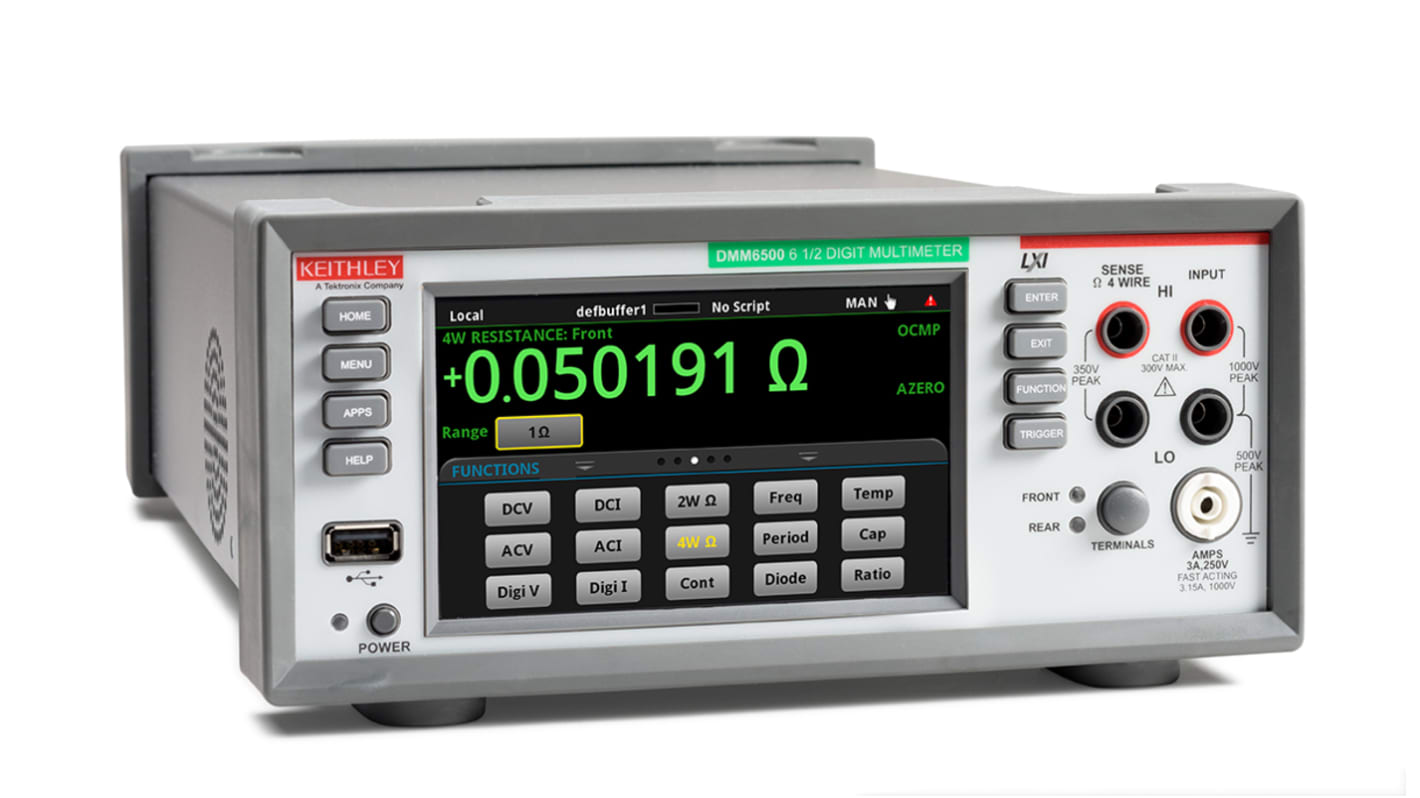

Keithley DMM6500 Touchscreen Bench 6.5 Digital Multimeter, True RMS, 10.1A ac Max, 10.1A dc Max, 750V ac Max - UKAS

RS Stock No.:: 173-9963
Mfr. Part No.:: DMM6500
Brand:: Keithley

Keithley DMM6500 Touchscreen Bench 6.5 Digital Multimeter, True RMS, 10.1A ac Max, 10.1A dc Max, 750V ac Max - UKAS

Subtotal (1 unit)*

£1,585.10

(exc. VAT)

£1,902.12

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 5 unit(s) shipping from 19 January 2026
Plus 10 unit(s) shipping from 02 February 2026
Plus 9 unit(s) shipping from 23 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,585.10

*price indicative

RS Stock No.:: 173-9963
Mfr. Part No.:: DMM6500
Brand:: Keithley

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Keithley
	Multimeter Type	Touchscreen Bench
	Display Type	6.5 Digital
	Model Number p	DMM6500
	Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Period, Resistance, Temperature
	Calibrated	UKAS
	Absolute Maximum AC Voltage Measurement	750V ac
	Absolute Maximum Resistance Measurement	120MΩ
	Absolute Maximum AC Current Measurement	10.1A ac
	Absolute Maximum DC Voltage Measurement	1010V dc
	Absolute Maximum DC Current Measurement	10.1A dc
	Absolute Maximum Temperature Measurement	+1000 °C, +1300 °C, +1372 °C, +1768 °C, +1820 °C, +400 °C, +760°C
	True RMS	Yes
	Absolute Maximum Capacitance Measurement	120µF
	Maximum Frequency	300kHz
	Resistance Measurement Resolution	1µΩ
	Capacitance Measurement Resolution	0.1pF
	Safety Category Level	CAT II
	Temperature Measurement Resolution	0.001°C
	Weight	4.5kg
	Height	107.2mm
	Minimum Operating Temperature	0°C
	Length	224mm
	Safety Category Voltage	1000V
	Battery Type	Li-Ion
	Maximum Operating Temperature	+50°C
	Dimensions	224 x 387.4 x 107.2mm
	Width	387.4mm

	Select all
	Brand Keithley
	Multimeter Type Touchscreen Bench
	Display Type 6.5 Digital
	Model Number p DMM6500
	Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Period, Resistance, Temperature
	Calibrated UKAS
	Absolute Maximum AC Voltage Measurement 750V ac
	Absolute Maximum Resistance Measurement 120MΩ
	Absolute Maximum AC Current Measurement 10.1A ac
	Absolute Maximum DC Voltage Measurement 1010V dc
	Absolute Maximum DC Current Measurement 10.1A dc
	Absolute Maximum Temperature Measurement +1000 °C, +1300 °C, +1372 °C, +1768 °C, +1820 °C, +400 °C, +760°C
	True RMS Yes
	Absolute Maximum Capacitance Measurement 120µF
	Maximum Frequency 300kHz
	Resistance Measurement Resolution 1µΩ
	Capacitance Measurement Resolution 0.1pF
	Safety Category Level CAT II
	Temperature Measurement Resolution 0.001°C
	Weight 4.5kg
	Height 107.2mm
	Minimum Operating Temperature 0°C
	Length 224mm
	Safety Category Voltage 1000V
	Battery Type Li-Ion
	Maximum Operating Temperature +50°C
	Dimensions 224 x 387.4 x 107.2mm
	Width 387.4mm

DMM 6500 - Datasheet

COO (Country of Origin):: CN

Keithley DMM6500 Touchscreen Bench Digital Multimeter 6.5 digit, True RMS, 10.1A ac Max, 10.1A dc Max, 750V ac Max

Get a high-performance instrument without a huge investment. This touchscreen bench 6.5 digit multimeter provides more measurement capability, including transient capture, data visualization, and analysis, than many industry 6.5 digit multimeters at the same price point. It also includes a standard 3-year warranty. Get 15 built-in measurement functions, including digitizing, capacitance, and temperature. Make low current and low resistance measurements on low-power devices with both high resolution and great accuracy. Capture transient signals with the built-in 16-bit digitizer. See two measurements simultaneously to maximize test data. The DMM6500 6.5 digit multimeter eliminates the need for additional instruments.

Features and Benefits

• Three-year warranty

• Capture voltage or current transients with 1 MS/sec digitizer

• Expanded measurement ranges include 10 pA to 10 A and 1 mΩ to 100 MΩ

• Large 5-inch (12.7 cm) multi-touch capacitive touchscreen

• Large internal memory

• 15 measurement functions

• SCPI emulation

• Make measurements as short as 0.0005 power line cycles or 8.3 μs (10 μs) for 60 Hz (50 Hz) power lines.

• Use on-instrument, intelligent, command and control processing to reduce PC communication for reduced test time.

• Two-year specifications allow for longer calibration cycles

• USB host port for storing readings, instrument configurations, and screen images

• Brand New full feature KickStart instrument control software

Accessories

Software Options

Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

Cable and Interface Accessories

RS Stock No. 2409959 KTTI-TSP (TSP-Link Communication and Digital I/O accessory, user-installable)

RS Stock No. 7600341 KPCI-488LPA (Low Profile IEEE-488 Interface Board)

RS Stock No. 7600345 KUSB-488B (IEEE-488.2 USB-TO-GPIB Interface Adapter)

RS Stock No. 8470993 KUSB-488B (Male GPIB to Female GPIB Parallel Cable)

For full list of accessories, application and software options, please see datasheet

Software Updates

Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Keep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software

Applications

Automotive

Battery Testing

Embedded Design

Power Measurements and Analysis

Education

Manufacturing test/troubleshooting
