Chauvin Arnoux CA 5005 Handheld Analogue Multimeter, 600V ac Max
- RS Stock No.:
- 392-9190
- Mfr. Part No.:
- P01196523E
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£403.98
(exc. VAT)
£484.78
(inc. VAT)
FREE delivery for orders over £50.00
- 1 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £403.98 |
*price indicative
- RS Stock No.:
- 392-9190
- Mfr. Part No.:
- P01196523E
- Brand:
- Chauvin Arnoux
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Multimeter Type | Handheld | |
| Model Number p | CA 5005 | |
| Display Type | Analogue | |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Resistance | |
| Absolute Maximum Resistance Measurement | 1 MΩ | |
| Absolute Maximum AC Voltage Measurement | 600V ac | |
| Absolute Maximum DC Voltage Measurement | 600V dc | |
| True RMS | No | |
| Safety Category Level | CAT III | |
| Safety Category | CAT III 600V | |
| Height | 56mm | |
| Best DC Current Accuracy | ±2.5 % | |
| Weight | 500g | |
| Maximum Operating Temperature | +55°C | |
| Battery Type | 9V | |
| Safety Category Voltage | 600V | |
| Best Resistance Measurement Accuracy | ±10 % | |
| Best AC Current Accuracy | ±2.5 % | |
| Length | 160mm | |
| Best AC Voltage Accuracy | ±2.5 % | |
| Dimensions | 160 x 105 x 56mm | |
| Best DC Voltage Accuracy | ±1.5 % | |
| Minimum Operating Temperature | -10°C | |
| Width | 105mm | |
| Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Multimeter Type Handheld | ||
Model Number p CA 5005 | ||
Display Type Analogue | ||
Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance | ||
Absolute Maximum Resistance Measurement 1 MΩ | ||
Absolute Maximum AC Voltage Measurement 600V ac | ||
Absolute Maximum DC Voltage Measurement 600V dc | ||
True RMS No | ||
Safety Category Level CAT III | ||
Safety Category CAT III 600V | ||
Height 56mm | ||
Best DC Current Accuracy ±2.5 % | ||
Weight 500g | ||
Maximum Operating Temperature +55°C | ||
Battery Type 9V | ||
Safety Category Voltage 600V | ||
Best Resistance Measurement Accuracy ±10 % | ||
Best AC Current Accuracy ±2.5 % | ||
Length 160mm | ||
Best AC Voltage Accuracy ±2.5 % | ||
Dimensions 160 x 105 x 56mm | ||
Best DC Voltage Accuracy ±1.5 % | ||
Minimum Operating Temperature -10°C | ||
Width 105mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
C.A 5000 Series Analogue Multimeters
Shockproof case with a "Multistand" multi-purpose fold-away stand for use at worksites as well as in the lab.
Analogue display with anti-parallax mirror for voltage scales.

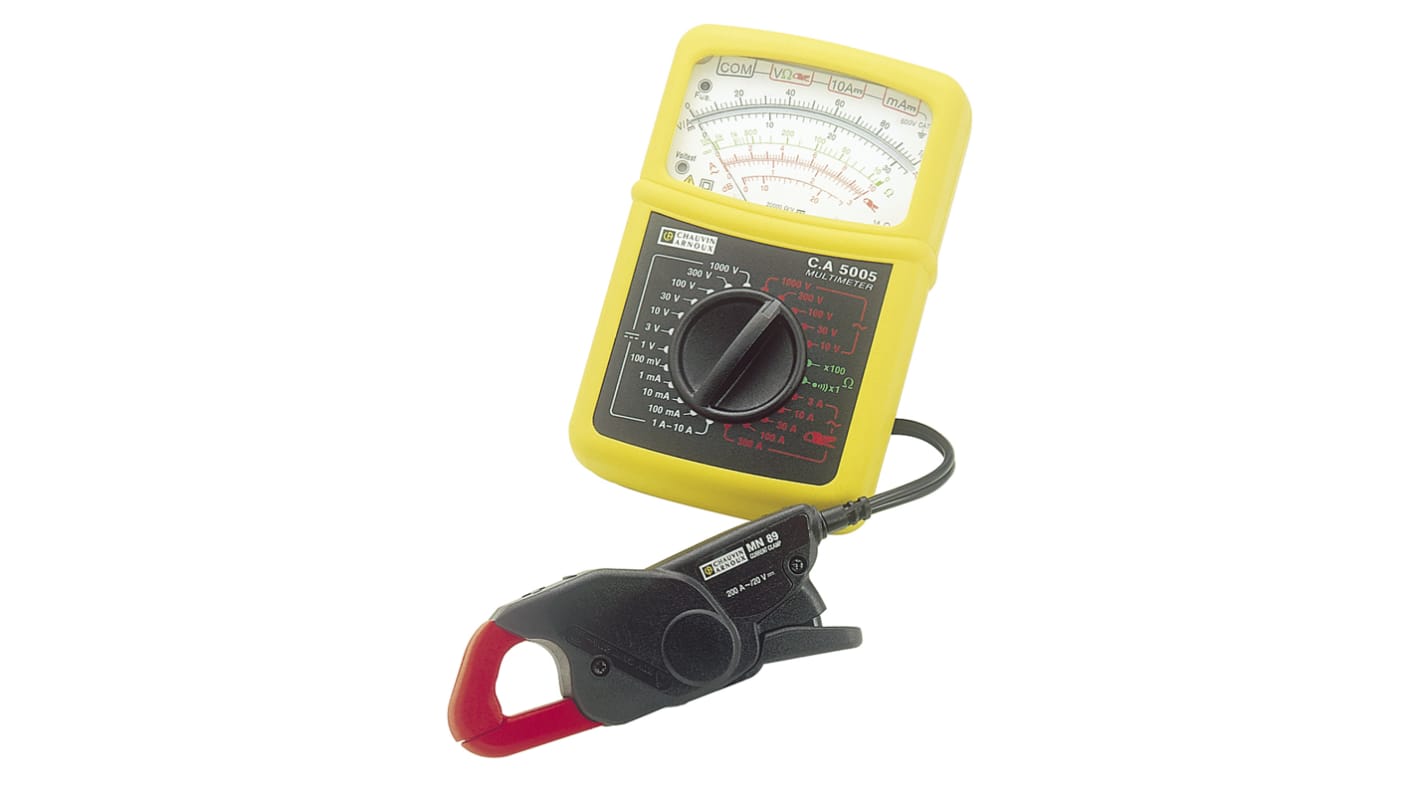

The C.A 5005 multimeter is supplied with an MN89 mini-clamp and "Voltest" function to test for voltage on resistance and continuity tests.
Two versions, available in a carry cases with steel hinges for safe storage, protection and transport.
AA alkaline batteries (stock no.: 591-225) also available separately from the catalogue.
IEC 61010-1, category III / 600 V (C.A 5001);
IEC 61010-1, category III / 1000 V (C.A 5005)
