Chauvin Arnoux CA 5005 Handheld Analogue Multimeter, 600V ac Max
- RS Stock No.:
- 392-9178
- Mfr. Part No.:
- P01196523F
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£446.91
(exc. VAT)
£536.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 999,999,998 unit(s) shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £446.91 |
*price indicative
- RS Stock No.:
- 392-9178
- Mfr. Part No.:
- P01196523F
- Brand:
- Chauvin Arnoux
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Multimeter Type | Handheld | |
| Display Type | Analogue | |
| Model Number p | CA 5005 | |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Resistance | |
| Absolute Maximum DC Voltage Measurement | 600V dc | |
| Absolute Maximum AC Voltage Measurement | 600V ac | |
| Absolute Maximum Resistance Measurement | 1 MΩ | |
| True RMS | No | |
| Safety Category | CAT III 600V | |
| Safety Category Level | CAT III | |
| Best AC Current Accuracy | ±2.5 % | |
| Length | 160mm | |
| Best DC Voltage Accuracy | ±1.5 % | |
| Width | 105mm | |
| Safety Category Voltage | 600V | |
| Battery Type | 9V | |
| Maximum Operating Temperature | +55°C | |
| Best Resistance Measurement Accuracy | ±10 % | |
| Minimum Operating Temperature | -10°C | |
| Height | 56mm | |
| Weight | 500g | |
| Best DC Current Accuracy | ±2.5 % | |
| Best AC Voltage Accuracy | ±2.5 % | |
| Dimensions | 160 x 105 x 56mm | |
Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Multimeter Type Handheld | ||
Display Type Analogue | ||
Model Number p CA 5005 | ||
Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance | ||
Absolute Maximum DC Voltage Measurement 600V dc | ||
Absolute Maximum AC Voltage Measurement 600V ac | ||
Absolute Maximum Resistance Measurement 1 MΩ | ||
True RMS No | ||
Safety Category CAT III 600V | ||
Safety Category Level CAT III | ||
Best AC Current Accuracy ±2.5 % | ||
Length 160mm | ||
Best DC Voltage Accuracy ±1.5 % | ||
Width 105mm | ||
Safety Category Voltage 600V | ||
Battery Type 9V | ||
Maximum Operating Temperature +55°C | ||
Best Resistance Measurement Accuracy ±10 % | ||
Minimum Operating Temperature -10°C | ||
Height 56mm | ||
Weight 500g | ||
Best DC Current Accuracy ±2.5 % | ||
Best AC Voltage Accuracy ±2.5 % | ||
Dimensions 160 x 105 x 56mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
C.A 5000 Series Analogue Multimeters
Range of analogue multimeters for safe measurement of direct or alternating currents.
Shockproof case with a "Multistand" multi-purpose fold-away stand for use at worksites as well as in the lab.
Analogue display with anti-parallax mirror for voltage scales.
The C.A 5005 multimeter is supplied with an MN89 mini-clamp and "Voltest" function to test for voltage on resistance and continuity tests.
Two versions, available in a carry cases with steel hinges for safe storage, protection and transport.
AA alkaline batteries (stock no.: 591-225) also available separately from the catalogue.
Shockproof case with a "Multistand" multi-purpose fold-away stand for use at worksites as well as in the lab.
Analogue display with anti-parallax mirror for voltage scales.
The C.A 5005 multimeter is supplied with an MN89 mini-clamp and "Voltest" function to test for voltage on resistance and continuity tests.
Two versions, available in a carry cases with steel hinges for safe storage, protection and transport.
AA alkaline batteries (stock no.: 591-225) also available separately from the catalogue.
Class:
IEC 61010-1, category III / 600 V (C.A 5001);
IEC 61010-1, category III / 1000 V (C.A 5005)
IEC 61010-1, category III / 600 V (C.A 5001);
IEC 61010-1, category III / 1000 V (C.A 5005)

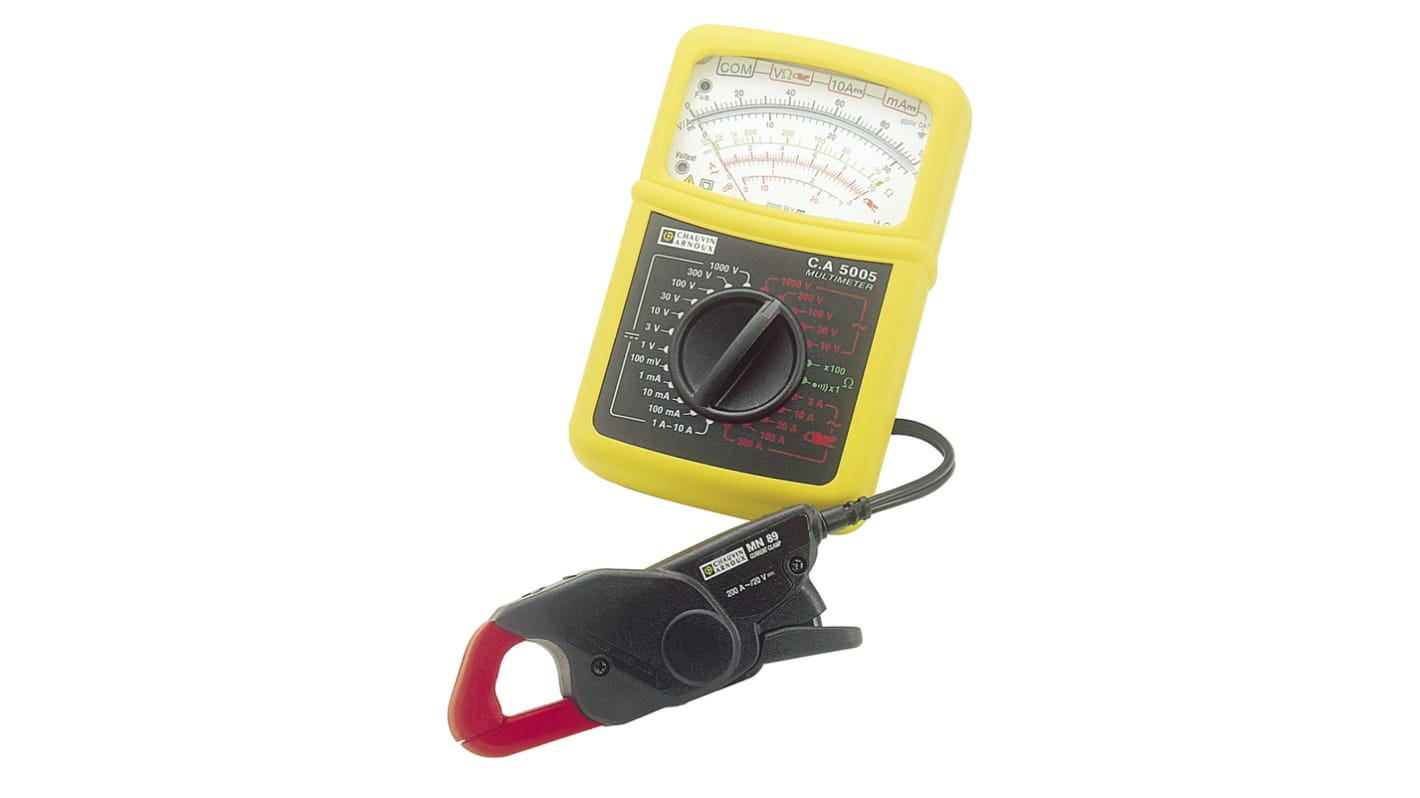

KIT CA 5005 analogue multimeter with MN89 current clamp and carrying case
In its KIT version, the CA 5005 comes with a current clamp and a practical metal case for transporting the instrument and accessories.
The CA 5005 is a compact, lightweight analogue multimeter with all the features needed to meet the measurement needs of electricians.
Easy and convenient to use, the CA 5005 offers direct reading of currents up to 240 A AC using the MN89 current clamp supplied with the device.
General characteristics
DC voltage : 8 ranges : 100 mV / … / 600 V
AC voltage : 5 ranges : 10 V / … / 600 V
DC current : 6 ranges : 50 μA / … / 10 A
AC current : 5 ranges : 3 A / … / 240 A with MN89 current clamp
Resistance : 1 MΩ
Continuity
dB scale : 0 to 22 dB
Delivered with
The CA 5005 analogue multimeter is supplied with 1 carrying case, 1 MN89 AC clamp, 1 set of silicone leads, straight banana plug/angled banana plug, 1 set of safety test probes, 1 9 V battery 6LR06
Standards
CEI 61010-1, 600V catégorie III/1 000 V
Useful accessories
- Set of 2 red/black moulded PVC leads P01295451Z / 212-2583
- Set of 2 red/black crocodile wire grips P01102053Z / 229-6127
- Set of 2 red/black magnetized test probes P01103058Z / 229-6163
- Set of 2 red/black moulded silicone leads P01295452Z / 212-2585
The CA 5005 is a compact, lightweight analogue multimeter with all the features needed to meet the measurement needs of electricians.
Easy and convenient to use, the CA 5005 offers direct reading of currents up to 240 A AC using the MN89 current clamp supplied with the device.
General characteristics
DC voltage : 8 ranges : 100 mV / … / 600 V
AC voltage : 5 ranges : 10 V / … / 600 V
DC current : 6 ranges : 50 μA / … / 10 A
AC current : 5 ranges : 3 A / … / 240 A with MN89 current clamp
Resistance : 1 MΩ
Continuity
dB scale : 0 to 22 dB
Delivered with
The CA 5005 analogue multimeter is supplied with 1 carrying case, 1 MN89 AC clamp, 1 set of silicone leads, straight banana plug/angled banana plug, 1 set of safety test probes, 1 9 V battery 6LR06
Standards
CEI 61010-1, 600V catégorie III/1 000 V
Useful accessories
- Set of 2 red/black moulded PVC leads P01295451Z / 212-2583
- Set of 2 red/black crocodile wire grips P01102053Z / 229-6127
- Set of 2 red/black magnetized test probes P01103058Z / 229-6163
- Set of 2 red/black moulded silicone leads P01295452Z / 212-2585
