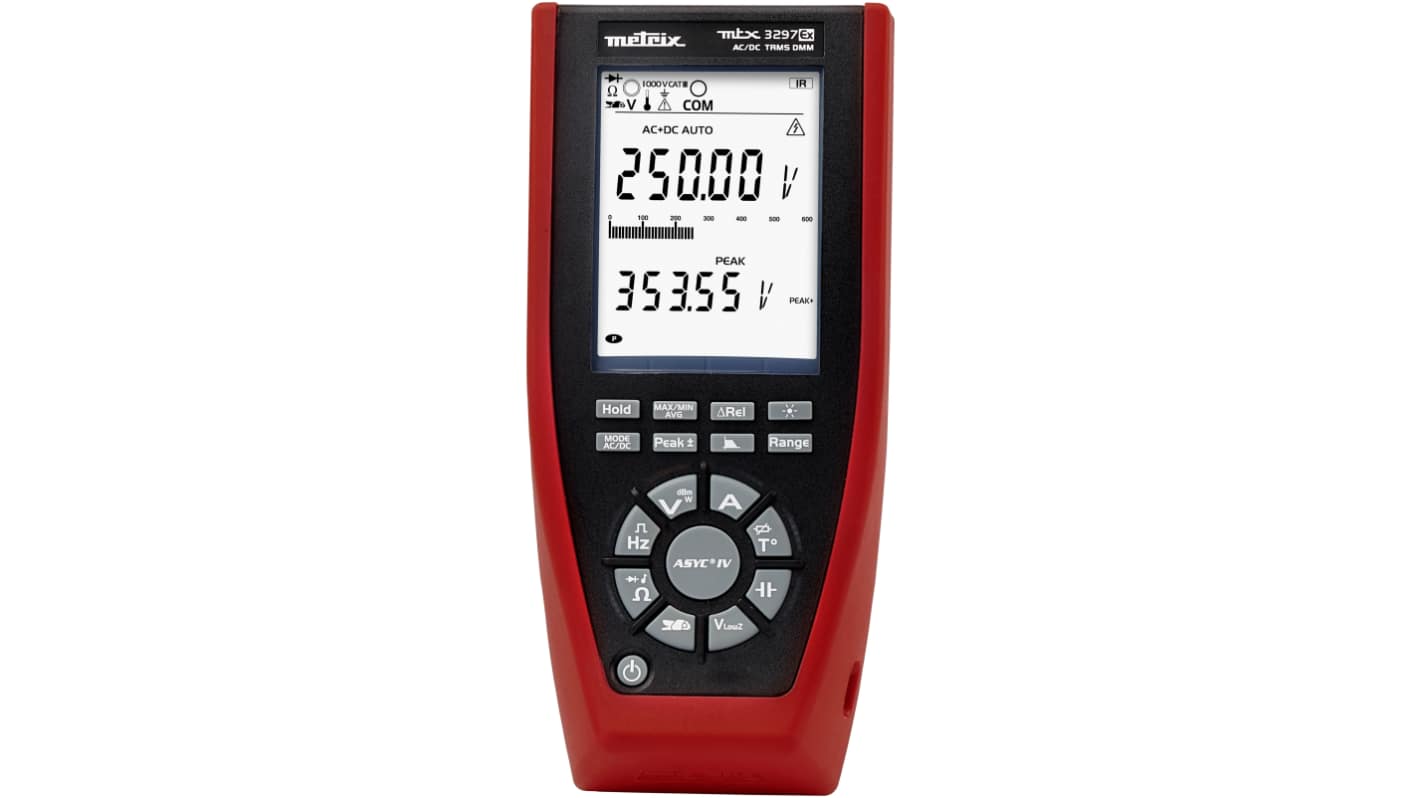

Metrix MTX3297 Digital Multimeter, 20A ac Max, 20A dc Max, 1000V ac Max, ATEX - RS Calibrated
- RS Stock No.:
- 282-3960
- Mfr. Part No.:
- MTX3297
- Brand:
- Metrix
Subtotal (1 unit)*
£1,388.11
(exc. VAT)
£1,665.73
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 13 October 2025
Units | Per unit |
|---|---|
| 1 + | £1,388.11 |
*price indicative
- RS Stock No.:
- 282-3960
- Mfr. Part No.:
- MTX3297
- Brand:
- Metrix
Select all | Attribute | Value |
|---|---|---|
| Brand | Metrix | |
| Multimeter Type | Digital | |
| Display Type | Digital | |
| Model Number p | MTX3297 | |
| Functions Measured | AC Current, AC Voltage, Conductance, Capacitance, Continuity, DC Current, DC Voltage, Duty cycle, Diode, dBm, Frequency, Pulse width, Resistance, Resistive power, Temperature | |
| Calibrated | RSCAL | |
| Absolute Maximum AC Voltage Measurement | 1000V ac | |
| Absolute Maximum DC Voltage Measurement | 1000V dc | |
| Absolute Maximum Resistance Measurement | 60MΩ | |
| Absolute Maximum AC Current Measurement | 20A ac | |
| Absolute Maximum DC Current Measurement | 20A dc | |
| Absolute Maximum Capacitance Measurement | 60mF | |
| Absolute Maximum Temperature Measurement | +800°C | |
| Connectivity | Optical, Usb | |
| Maximum Frequency | 200kHz | |
| DC Current Measurement Resolution | 0.01µA | |
| AC Current Measurement Resolution | 0.01µA | |
| AC Voltage Measurement Resolution | 0,001mV | |
| Resistance Measurement Resolution | 0.01 Ω | |
| DC Voltage Measurement Resolution | 0.001mV | |
| Temperature Measurement Resolution | 0.1°C | |
| Safety Category Level | ATEX, CAT IV | |
| Hazardous Area Certification | ATEX | |
| Application | Electrical Measurement Work in Explosive Ex Zones ATEX | |
| Safety Category | ATEX, 1000V CAT III, 600V CAT IV | |
| Capacitance Measurement Resolution | 0.001nF | |
| Minimum Operating Temperature | -10°C | |
| Height | 47.1mm | |
| Weight | 715g | |
| Best DC Current Accuracy | 0.8 % ± 20 D | |
| Maximum Operating Temperature | 55°C | |
| Best Resistance Measurement Accuracy | 0.2 % ± 20 D | |
| Width | 90mm | |
| Safety Category Voltage | 600V | |
| Battery Type | 4 x AA/FR6 Li-FeS2 Ex-qualified batteries | |
| Best DC Voltage Accuracy | 0.05 % + 25 D | |
| Best Temperature Measurement Accuracy | 0.001 | |
| Dimensions | 196 x 90 x 47.1mm | |
| Best Capacitance Measurement Accuracy | 1 % ± 10 D | |
| Best AC Current Accuracy | 1.0 % + 25 D | |
| Length | 196mm | |
| Best AC Voltage Accuracy | 0.05 % + 25 D | |
Select all | ||
|---|---|---|
Brand Metrix | ||
Multimeter Type Digital | ||
Display Type Digital | ||
Model Number p MTX3297 | ||
Functions Measured AC Current, AC Voltage, Conductance, Capacitance, Continuity, DC Current, DC Voltage, Duty cycle, Diode, dBm, Frequency, Pulse width, Resistance, Resistive power, Temperature | ||
Calibrated RSCAL | ||
Absolute Maximum AC Voltage Measurement 1000V ac | ||
Absolute Maximum DC Voltage Measurement 1000V dc | ||
Absolute Maximum Resistance Measurement 60MΩ | ||
Absolute Maximum AC Current Measurement 20A ac | ||
Absolute Maximum DC Current Measurement 20A dc | ||
Absolute Maximum Capacitance Measurement 60mF | ||
Absolute Maximum Temperature Measurement +800°C | ||
Connectivity Optical, Usb | ||
Maximum Frequency 200kHz | ||
DC Current Measurement Resolution 0.01µA | ||
AC Current Measurement Resolution 0.01µA | ||
AC Voltage Measurement Resolution 0,001mV | ||
Resistance Measurement Resolution 0.01 Ω | ||
DC Voltage Measurement Resolution 0.001mV | ||
Temperature Measurement Resolution 0.1°C | ||
Safety Category Level ATEX, CAT IV | ||
Hazardous Area Certification ATEX | ||
Application Electrical Measurement Work in Explosive Ex Zones ATEX | ||
Safety Category ATEX, 1000V CAT III, 600V CAT IV | ||
Capacitance Measurement Resolution 0.001nF | ||
Minimum Operating Temperature -10°C | ||
Height 47.1mm | ||
Weight 715g | ||
Best DC Current Accuracy 0.8 % ± 20 D | ||
Maximum Operating Temperature 55°C | ||
Best Resistance Measurement Accuracy 0.2 % ± 20 D | ||
Width 90mm | ||
Safety Category Voltage 600V | ||
Battery Type 4 x AA/FR6 Li-FeS2 Ex-qualified batteries | ||
Best DC Voltage Accuracy 0.05 % + 25 D | ||
Best Temperature Measurement Accuracy 0.001 | ||
Dimensions 196 x 90 x 47.1mm | ||
Best Capacitance Measurement Accuracy 1 % ± 10 D | ||
Best AC Current Accuracy 1.0 % + 25 D | ||
Length 196mm | ||
Best AC Voltage Accuracy 0.05 % + 25 D | ||
