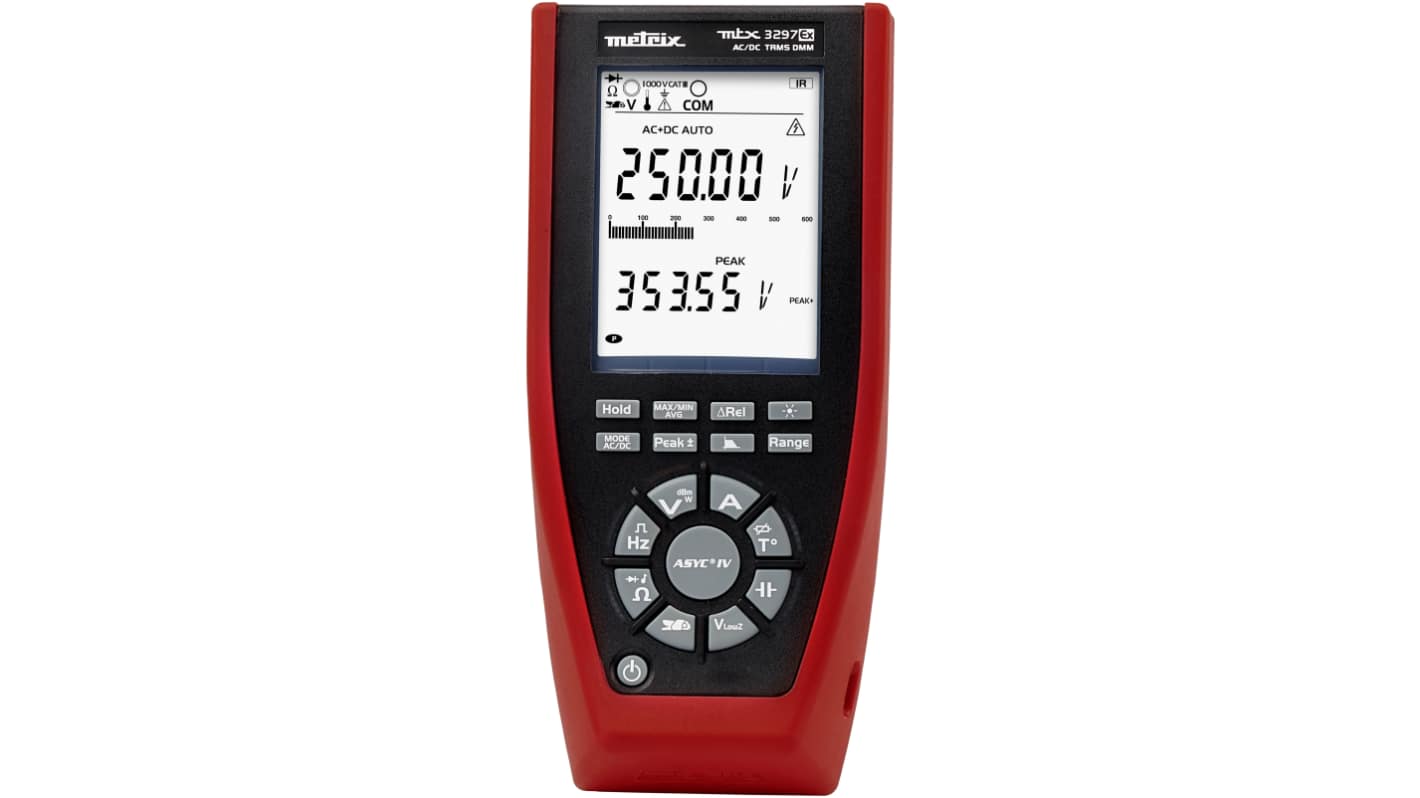

Metrix MTX3297 Digital Multimeter, 20A ac Max, 20A dc Max, 1000V ac Max, ATEX - UKAS Calibrated

View all Multimeters

Subtotal (1 unit)*

£1,412.11

(exc. VAT)

£1,694.53

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,412.11

*price indicative

RS Stock No.:
282-3961
Mfr. Part No.:
MTX3297
Brand:
Metrix
Find similar products by selecting one or more attributes.
Select all

Brand

Metrix

Multimeter Type

Digital

Display Type

Digital

Model Number p

MTX3297

Functions Measured

AC Current, AC Voltage, Conductance, Capacitance, Continuity, DC Current, DC Voltage, Duty cycle, Diode, dBm, Frequency, Pulse width, Resistance, Resistive power, Temperature

Calibrated

UKAS

Absolute Maximum Resistance Measurement

60MΩ

Absolute Maximum DC Voltage Measurement

1000V dc

Absolute Maximum DC Current Measurement

20A dc

Absolute Maximum AC Voltage Measurement

1000V ac

Absolute Maximum AC Current Measurement

20A ac

Absolute Maximum Capacitance Measurement

60mF

Absolute Maximum Temperature Measurement

+800°C

Connectivity

Optical, Usb

Maximum Frequency

200kHz

AC Current Measurement Resolution

0.01µA

DC Current Measurement Resolution

0.01µA

DC Voltage Measurement Resolution

0.001mV

Resistance Measurement Resolution

0.01 Ω

AC Voltage Measurement Resolution

0,001mV

Temperature Measurement Resolution

0.1°C

Hazardous Area Certification

ATEX

Safety Category Level

ATEX, CAT IV

Safety Category

ATEX, 1000V CAT III, 600V CAT IV

Capacitance Measurement Resolution

0.001nF

Application

Electrical Measurement Work in Explosive Ex Zones ATEX

Best AC Current Accuracy

1.0 % + 25 D

Length

196mm

Best AC Voltage Accuracy

0.05 % + 25 D

Best DC Voltage Accuracy

0.05 % + 25 D

Best DC Current Accuracy

0.8 % ± 20 D

Safety Category Voltage

600V

Battery Type

4 x AA/FR6 Li-FeS2 Ex-qualified batteries

Maximum Operating Temperature

55°C

Weight

715g

Best Resistance Measurement Accuracy

0.2 % ± 20 D

Best Capacitance Measurement Accuracy

1 % ± 10 D

Dimensions

196 x 90 x 47.1mm

Best Temperature Measurement Accuracy

0.001

Height

47.1mm

Minimum Operating Temperature

-10°C

Width

90mm

COO (Country of Origin):
FR
Designed and manufactured in France, the MTX 3297Ex is an intrinsically safe TRMS digital multimeter for permanent use in Ex area, whatever the field of application : oil, chemicals, agri-food, cosmetics and pharmaceutical industries, as well as cement production and mining.

The MTX 3297Ex is certified for the highest levels of risk and meets the strictest requirements, Ex / IEC Ex :

• IIC (gas) 0,1,2
• IIIC (dust) 20,21, 22
• Mines M1

Belonging to the DMM ASYC IV series, the multimeter’s performance features and specifications remain the same thanks to its IP67 liquid and dust-proofing.

Complete, this comprehensive intrinsically safe portable multimeter measures voltage, current, resistance, capacitance, frequency (duty cycle/pulse width), temperature and diodes.

Outside the Ex zones, the MTX3297Ex is a high-performance industrial multimeter, it is compliant with the IEC 61010-2-033 standard for work on 1000 V CAT III / 600 V CAT IV electrical installations.

The MTX 3297Ex comes complete with ATEX-specific batteries and fuse. Our SX-DMM software is available as a free download from our website.

• TRMS AC+DC
• 60,000-count display
• Bandwidth : 100 kHz
• Voltage resolution : 1 μV
• Current resolution : 0.01 μA
• Functions to help with analysis and diagnostics : MIN, MAX, Peak, ΔX differential and ΔX /X relative, Low-pass filter for measurement on PWM signals, VLowZ low-impedance AC voltage
• Isolated optical communication
• Simplified terminal strip with reminder and connection check on display
• Detection and indication of a hazardous voltage present
• Large backlit screen with double display
• Bargraph with central zero mode
• Moulded casing for excellent handling and protection against shocks and falls
