RS PRO DT-9963T Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated
- RS Stock No.:
- 146-9138
- Brand:
- RS PRO
Subtotal (1 unit)*
£121.61
(exc. VAT)
£145.93
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 517 unit(s) shipping from 26 January 2026
- Plus 204 unit(s) shipping from 04 March 2026
- Plus 354 unit(s) shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £121.61 |
*price indicative
- RS Stock No.:
- 146-9138
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Multimeter Type | Handheld | |
| Model Number p | DT-9963T | |
| Display Type | Digital | |
| Calibrated | RSCAL | |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature | |
| Absolute Maximum Resistance Measurement | 40MΩ | |
| Absolute Maximum AC Voltage Measurement | 1000V ac | |
| Absolute Maximum DC Voltage Measurement | 1000V dc | |
| Absolute Maximum DC Current Measurement | 10A dc | |
| Absolute Maximum AC Current Measurement | 10A ac | |
| True RMS | Yes | |
| Absolute Maximum Capacitance Measurement | 1mF | |
| Absolute Maximum Temperature Measurement | +1400 °F, +760°C | |
| Maximum Frequency | 10MHz | |
| DC Voltage Measurement Resolution | 1V dc | |
| Safety Category Level | CAT III, CAT IV | |
| Best Capacitance Measurement Accuracy | ±3 % | |
| Best AC Voltage Accuracy | ±0.8 % | |
| Best Temperature Measurement Accuracy | ±3 % | |
| Best DC Voltage Accuracy | ±0.5 % | |
| Best AC Current Accuracy | ±1.8 % | |
| Best Resistance Measurement Accuracy | ±0.8 % | |
| Safety Category Voltage | 1000V | |
| Battery Type | 9V | |
| Best DC Current Accuracy | ±1.2 % | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Multimeter Type Handheld | ||
Model Number p DT-9963T | ||
Display Type Digital | ||
Calibrated RSCAL | ||
Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature | ||
Absolute Maximum Resistance Measurement 40MΩ | ||
Absolute Maximum AC Voltage Measurement 1000V ac | ||
Absolute Maximum DC Voltage Measurement 1000V dc | ||
Absolute Maximum DC Current Measurement 10A dc | ||
Absolute Maximum AC Current Measurement 10A ac | ||
True RMS Yes | ||
Absolute Maximum Capacitance Measurement 1mF | ||
Absolute Maximum Temperature Measurement +1400 °F, +760°C | ||
Maximum Frequency 10MHz | ||
DC Voltage Measurement Resolution 1V dc | ||
Safety Category Level CAT III, CAT IV | ||
Best Capacitance Measurement Accuracy ±3 % | ||
Best AC Voltage Accuracy ±0.8 % | ||
Best Temperature Measurement Accuracy ±3 % | ||
Best DC Voltage Accuracy ±0.5 % | ||
Best AC Current Accuracy ±1.8 % | ||
Best Resistance Measurement Accuracy ±0.8 % | ||
Safety Category Voltage 1000V | ||
Battery Type 9V | ||
Best DC Current Accuracy ±1.2 % | ||
- COO (Country of Origin):
- CN

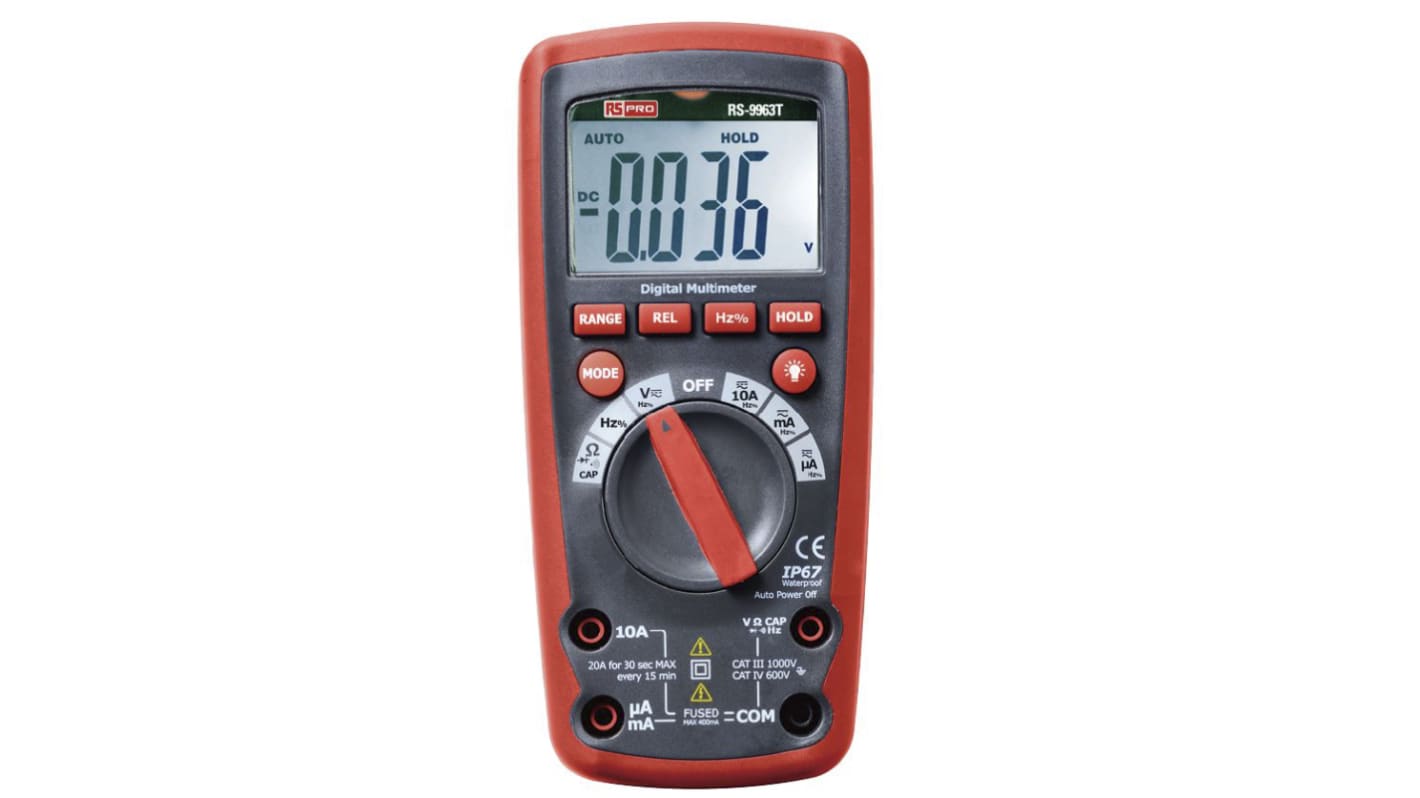

RS PRO Digital Multimeter True-RMS
This high performance handheld digital multimeter from our own brand RS PRO features a variety of electronics measurement functions including frequency, resistance, capacitance, diode test, continuity. The device features True-RMS for excellent precision when testing, with results clearly displayed via an LCD display screen. Additional functions included such as data hold allows you to freeze measurements for future reference, whereas the MAX/MIN feature allows you to hold either the maximum reading or minimum, providing precise results. The multimeter is housed in a double molded enclosure, offering excellent protection.
Features and Benefits:
User friendly interface
True-RMS for excellent precision
Data hold function allows you to freeze measurements for future reference
Large high contrast 6000 count LCD display with backlight feature
Safety category CAT III, CAT IV 1000V
Variety of functions including frequency, resistance, capacitance, diode test, continuity
A range of functions measured including AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance
Auto power off function to preserve battery life
Test leads included
Double molded enclosure offering excellent protection and water resistance
True-RMS for excellent precision
Data hold function allows you to freeze measurements for future reference
Large high contrast 6000 count LCD display with backlight feature
Safety category CAT III, CAT IV 1000V
Variety of functions including frequency, resistance, capacitance, diode test, continuity
A range of functions measured including AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance
Auto power off function to preserve battery life
Test leads included
Double molded enclosure offering excellent protection and water resistance
Applications:
Digital Multimeters are a type of measurement device used to test and measure a range of electrical properties such as voltage (volts), current (amps) and resistance (ohms). Using a digital output readout, the digital multimeter is connected to a device and measures typically the voltage and any resistances, giving you an output you can measure. Digital multimeters offer a wide range of AC and DC measurement capabilities to suit a variety of applications. Multimeters are essential tester tools for carrying out electrical work from home renovations to large scale installations.
FAQs
Does this include a continuity check?
Yes, this device features a continuity check feature.
Does it feature an audible signal?
Yes, if the resistance is less than approximately 30Ω, an audible signal will sound.
Does this come with test leads?
Yes, test leads are provided with this multimeter.
