RS PRO IDM106N Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated

RS Stock No.:: 123-3302
Brand:: RS PRO

RS PRO IDM106N Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated

Subtotal (1 unit)*

£348.34

(exc. VAT)

£418.01

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

7 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£348.34

*price indicative

RS Stock No.:: 123-3302
Brand:: RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Multimeter Type	Handheld
	Model Number p	IDM106N
	Display Type	Digital
	Calibrated	RSCAL
	Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Peak Hold, Resistance, Temperature
	Absolute Maximum DC Current Measurement	10A dc
	Absolute Maximum DC Voltage Measurement	1000V dc
	Absolute Maximum AC Voltage Measurement	1000V ac
	Absolute Maximum Resistance Measurement	40MΩ
	Absolute Maximum AC Current Measurement	10A ac
	Absolute Maximum Temperature Measurement	+1472 °F, +800°C
	True RMS	Yes
	Absolute Maximum Capacitance Measurement	40mF
	Maximum Frequency	400MHz
	DC Current Measurement Resolution	10µA dc
	AC Current Measurement Resolution	10µA ac
	Resistance Measurement Resolution	100mΩ
	DC Voltage Measurement Resolution	100µV dc
	AC Voltage Measurement Resolution	0.1mV ac
	Capacitance Measurement Resolution	1pF
	Safety Category Level	CAT II, CAT III
	Best Resistance Measurement Accuracy	±0.4% + 2 Digits
	Maximum Operating Temperature	+50°C
	Safety Category Voltage	600 V, 1000V
	Battery Type	9V, IEC 6F22, JIS 006P, NEDA 1604
	Best DC Current Accuracy	±0.4% + 2 Digits
	Best DC Voltage Accuracy	±0.1% + 2 Digits
	Length	100mm
	Width	55mm
	Best AC Current Accuracy	±1.5% + 5 Digits
	Best Temperature Measurement Accuracy	±1 %
	Dimensions	100 x 55 x 212 (with Holster)mm
	Best AC Voltage Accuracy	±1.5% + 5 Digits
	Best Capacitance Measurement Accuracy	±2% + 8 Digits
	Minimum Operating Temperature	0°C
	Height	212mm
	Weight	620g

	Select all
	Brand RS PRO
	Multimeter Type Handheld
	Model Number p IDM106N
	Display Type Digital
	Calibrated RSCAL
	Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Peak Hold, Resistance, Temperature
	Absolute Maximum DC Current Measurement 10A dc
	Absolute Maximum DC Voltage Measurement 1000V dc
	Absolute Maximum AC Voltage Measurement 1000V ac
	Absolute Maximum Resistance Measurement 40MΩ
	Absolute Maximum AC Current Measurement 10A ac
	Absolute Maximum Temperature Measurement +1472 °F, +800°C
	True RMS Yes
	Absolute Maximum Capacitance Measurement 40mF
	Maximum Frequency 400MHz
	DC Current Measurement Resolution 10µA dc
	AC Current Measurement Resolution 10µA ac
	Resistance Measurement Resolution 100mΩ
	DC Voltage Measurement Resolution 100µV dc
	AC Voltage Measurement Resolution 0.1mV ac
	Capacitance Measurement Resolution 1pF
	Safety Category Level CAT II, CAT III
	Best Resistance Measurement Accuracy ±0.4% + 2 Digits
	Maximum Operating Temperature +50°C
	Safety Category Voltage 600 V, 1000V
	Battery Type 9V, IEC 6F22, JIS 006P, NEDA 1604
	Best DC Current Accuracy ±0.4% + 2 Digits
	Best DC Voltage Accuracy ±0.1% + 2 Digits
	Length 100mm
	Width 55mm
	Best AC Current Accuracy ±1.5% + 5 Digits
	Best Temperature Measurement Accuracy ±1 %
	Dimensions 100 x 55 x 212 (with Holster)mm
	Best AC Voltage Accuracy ±1.5% + 5 Digits
	Best Capacitance Measurement Accuracy ±2% + 8 Digits
	Minimum Operating Temperature 0°C
	Height 212mm
	Weight 620g

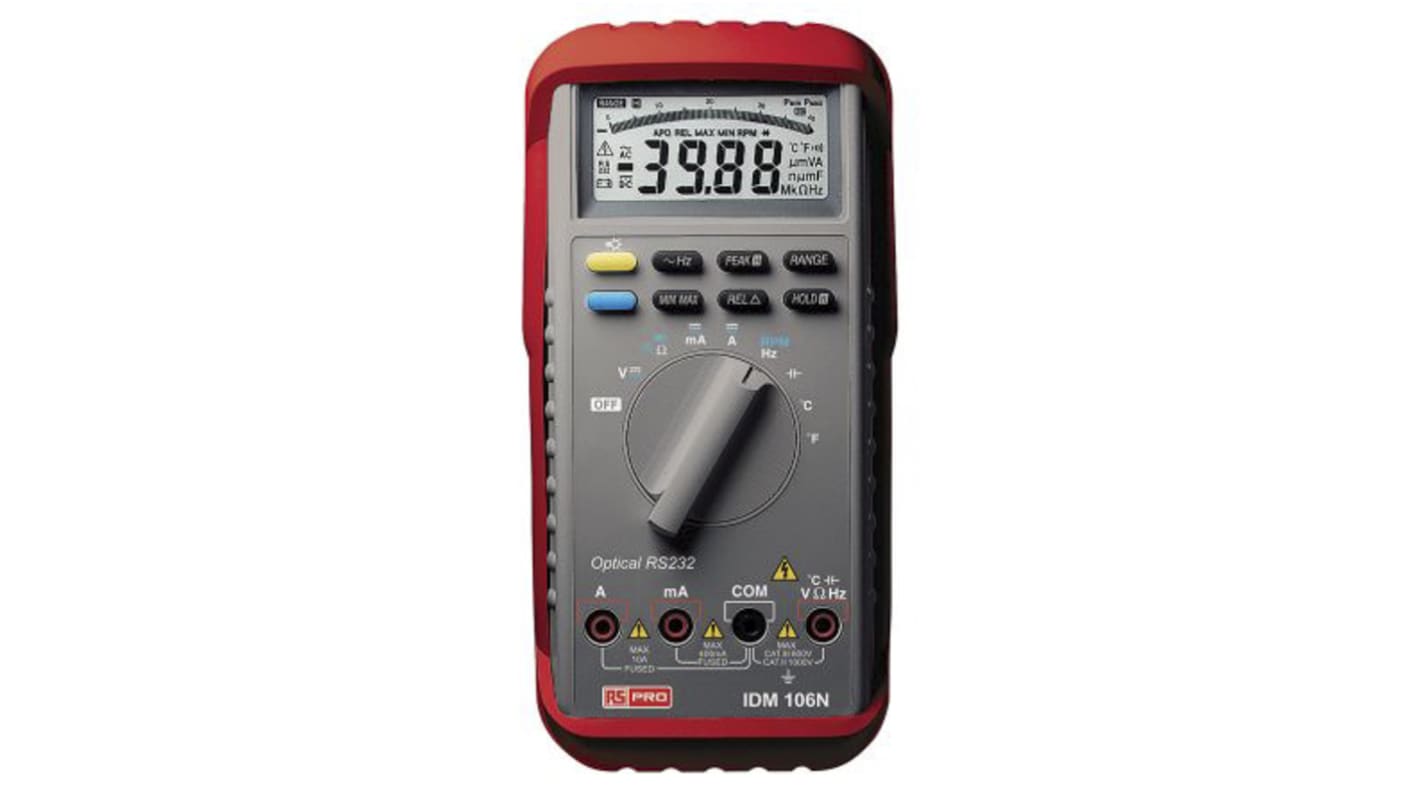

RS PRO IDM106N RMS Digital Multimeter

RS PRO IDM106N offers high specification performance with 4000 count display and 42 segment bar graph. These handheld devices can measure capacitance, voltage, electrical current, frequency, peak hold, temperature and resistance with diode and continuity check. This meter has an LCD display where the measurement readouts can be viewed.

RS PRO range of handheld and bench digital multimeters are RS approved meaning that they are great value for money and high quality you can rely on.

Features and Benefits

10 A (continuous) current range
Data hold/relative modes
1 MHz counter with full 9999 Count display
Diode test and continuity sounder
4 nF to 40 μF capacitance ranges
Mains proof resistance ranges
Full autoranging with manual override
Auto power shutdown
Digital display update rate 2 per second
Bargraph display update rate 20 per second
Fused 400 mA and 10A ranges
Dust and water protected to IP64
Water resistant via O-Ring sealed case
Dual high energy fuse protection
AC - Coupled AC conversion true RMS responding to the RMS sine wave input

What does it measure?

DC and AC voltages - up to 1000 V
DC and AC current - up 10A
Resistance and continuity checking - up to 40 MΩ
Capacitance - up to 40 mF
Frequency - up to 400 MHz

Display

The LED-backlit display turns ON/OFF at the touch of a button and automatically turns off to save battery life.

RS-232 Optical Interface

The IDM106N has an RS-232 optical interface to connect to a PC for data acquisition. Allowing measurements to be transferred to a PC for further analysis.

Batteries

Batteries can be easily replaced by unscrewing two screws to remove the battery door for battery replacement. Designed for users convenience without opening the bottom case.

Extra Protection

The multimeter is supplied with a protective holster that includes a built-in stand, a nail hook and convenient test lead storage. This holster provides an extra degree of protection and convenience.

What does it include?

Pair of Test Leads
Battery (Installed)
Test Clips
User Manual
Protective Holster

Typical Applications:
A digital multimeter is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries

Safety guidelines
When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.

What is the difference between an analogue and a digital multimeter?

The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually a LED or LCD screen) whereas the analogue version has a needle to show the value.

Warning

When using test leads or probes, keep your fingers behind the finger guards. Remove test lead from the meter before opening the battery door or meter case.
