Chauvin Arnoux Handheld Digital Multimeter, 10 A Max, 10 A Max, 1000 V Max

View all Multimeters

Subtotal (1 unit)*

£148.34

(exc. VAT)

£178.01

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£148.34

*price indicative

RS Stock No.:
282-1882
Mfr. Part No.:
P06231410
Brand:
Chauvin Arnoux
Find similar products by selecting one or more attributes.
Select all

Brand

Chauvin Arnoux

Multimeter Type

Handheld

Product Type

Multimeter

Display Type

Digital

Resistance Resolution

0.01mΩ

Functions Measured

DC Voltage, DC Current, AC Current, AC Voltage

Maximum DC Voltage Measurement

1000V

Maximum AC Current Measurement

10A

Maximum DC Current Measurement

10A

Maximum Resistance Measurement

60mΩ

Maximum AC Voltage Measurement

1000V

AC Voltage Accuracy

±2.5 % rdg + 3 Digits

DC Current Accuracy

±1.5 % rdg + 3 Digits

AC Current Accuracy

±2 % rdg + 3 Digits

DC Voltage Accuracy

±0.15 %rdg + 2 Digits

DC Current Resolution

0.01A

AC Current Resolution

0.01A

AC Voltage Resolution

1V

DC Voltage Resolution

1 V

Power Source

Battery

Minimum Operating Temperature

5°C

Resistance Measurement Accuracy

±0.5% rdg + 20 Digits

Maximum Operating Temperature

40°C

Weight

342g

Standards/Approvals

No

Width

81 mm

Height

50mm

Length

187mm

Safety Category Level

CAT III

Battery Type

6LF22

Safety Category Voltage

1000V

COO (Country of Origin):
CN

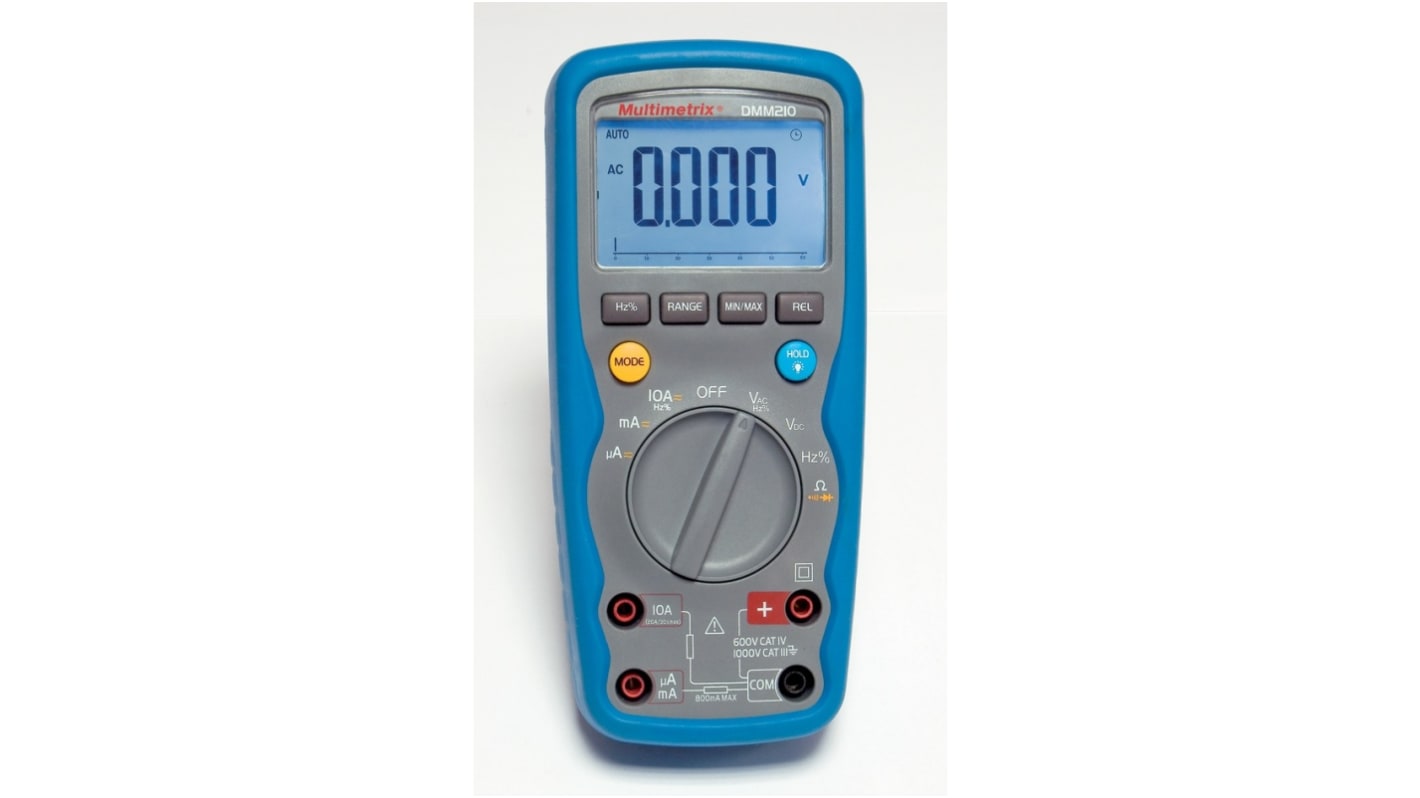

The Multimetrix DMM 200 series multimeters are specially designed for use in industry. They are ideally suited for maintenance and repair work in industry, services, electricity and electrical engineering. multimeter direct and alternating voltages, direct and alternating currents, frequencies and resistances. In addition, the voltage and continuity of the diodes can be determined with the horn. It thus has almost all the classic measurement functions of a multi-purpose multimeter.

Automatic or manual selection of the measuring range

VOLTAGE 1000 V AC / DC

CURRENT 10 A AC / DC

HOLD, MIN, MAX FUNCTION

Protection class IP67, with integrated impact protection shell
