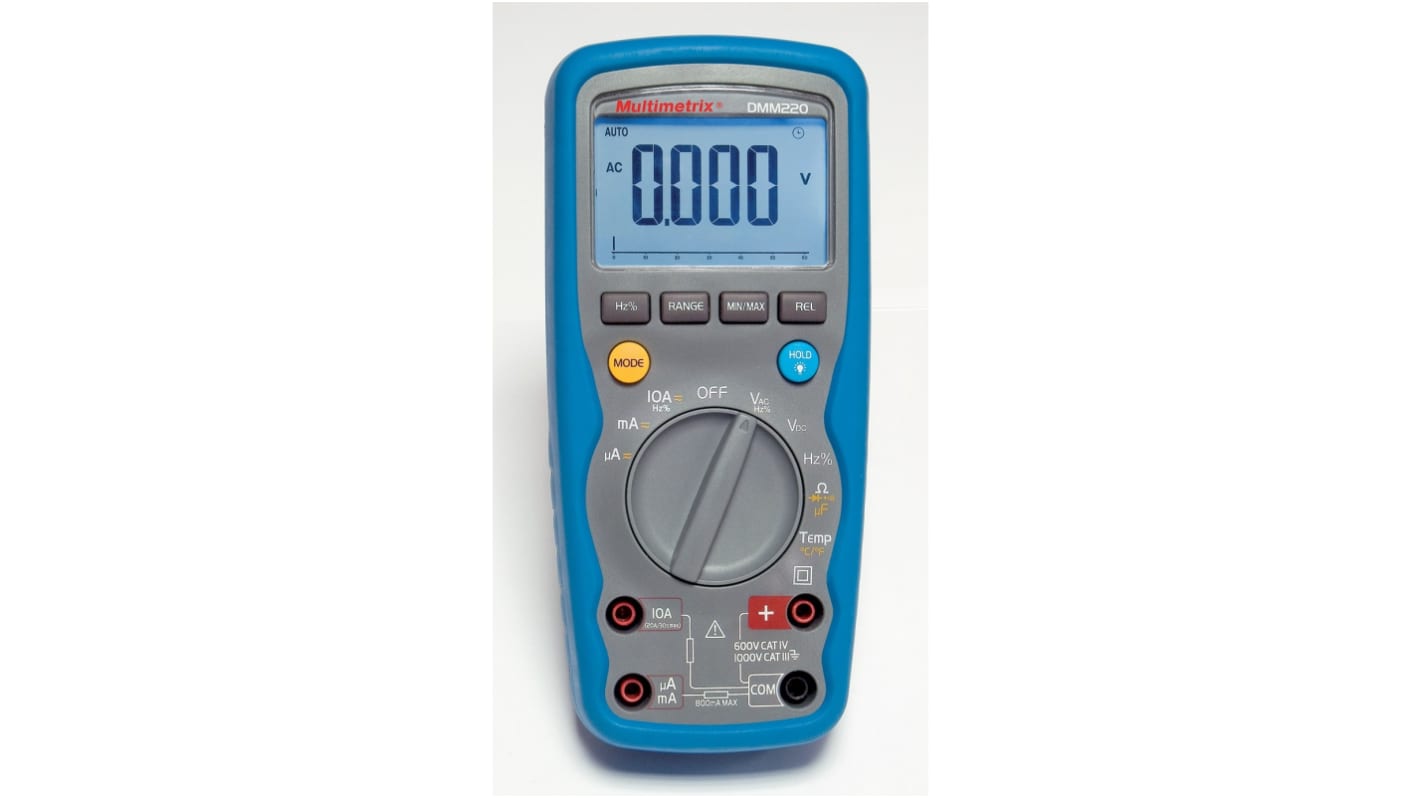

Chauvin Arnoux Handheld Multimeter, 10 A ac, 10 A dc, 1 kV ac, RSCAL Calibrated

RS Stock No.:: 282-1876
Mfr. Part No.:: P06231411
Brand:: Chauvin Arnoux

Chauvin Arnoux Handheld Multimeter, 10 A ac, 10 A dc, 1 kV ac, RSCAL Calibrated

Currently unavailable

Sorry, we don't know when this will be back in stock.

Your uptime, our priority

Data centres need power, cooling and confidence. Total confidence that everything will work seamlessly, all the time. When each second of uptime matters, data centre managers need to rely on partners like RS that can help keep critical systems stable, efficient and ready for growth.

Discover Now

RS Stock No.:: 282-1876
Mfr. Part No.:: P06231411
Brand:: Chauvin Arnoux

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Chauvin Arnoux
	Multimeter Type	Handheld
	Product Type	Multimeter
	Resistance Resolution	0.01mΩ
	Display Type	Digital
	Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature
	Maximum Resistance Measurement	60mΩ
	Maximum DC Voltage Measurement	1kV dc
	Maximum AC Voltage Measurement	1kV ac
	Maximum AC Current Measurement	10A ac
	Maximum DC Current Measurement	10A dc
	DC Current Accuracy	±1.5 % rdg + 3 Digits
	AC Current Accuracy	±2 % rdg + 3 Digits
	DC Voltage Accuracy	±0.15 % rdg + 2 Digits
	AC Voltage Accuracy	±2.5 % rdg + 3 Digits
	DC Current Resolution	0.01A ac
	DC Voltage Resolution	1 V dc
	AC Voltage Resolution	1V ac
	AC Current Resolution	0.01A ac
	Power Source	Battery
	Resistance Measurement Accuracy	±0.5 % rdg + 20 Digits
	Minimum Operating Temperature	5°C
	Maximum Operating Temperature	40°C
	Length	187mm
	Height	50mm
	Standards/Approvals	No
	Width	81mm
	Weight	342g
	Safety Category Level	CAT III, CAT IV
	Calibrated	RSCAL
	Safety Category Voltage	1000V

	Select all
	Brand Chauvin Arnoux
	Multimeter Type Handheld
	Product Type Multimeter
	Resistance Resolution 0.01mΩ
	Display Type Digital
	Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature
	Maximum Resistance Measurement 60mΩ
	Maximum DC Voltage Measurement 1kV dc
	Maximum AC Voltage Measurement 1kV ac
	Maximum AC Current Measurement 10A ac
	Maximum DC Current Measurement 10A dc
	DC Current Accuracy ±1.5 % rdg + 3 Digits
	AC Current Accuracy ±2 % rdg + 3 Digits
	DC Voltage Accuracy ±0.15 % rdg + 2 Digits
	AC Voltage Accuracy ±2.5 % rdg + 3 Digits
	DC Current Resolution 0.01A ac
	DC Voltage Resolution 1 V dc
	AC Voltage Resolution 1V ac
	AC Current Resolution 0.01A ac
	Power Source Battery
	Resistance Measurement Accuracy ±0.5 % rdg + 20 Digits
	Minimum Operating Temperature 5°C
	Maximum Operating Temperature 40°C
	Length 187mm
	Height 50mm
	Standards/Approvals No
	Width 81mm
	Weight 342g
	Safety Category Level CAT III, CAT IV
	Calibrated RSCAL
	Safety Category Voltage 1000V

Datasheet - P06231411

COO (Country of Origin):: CN

The Multimetrix DMM 220 series multimeters are specially designed for use in industry. They are ideally suited for maintenance and repair work in industry, services, electricity and electrical engineering. It measures AC and DC voltages and currents, resistances, frequencies (electrical and electronic) and controls diodes and continuity. Its waterproof and robust design gives it a great resistance. With proper use and maintenance, you will enjoy many years of safe use of this multimeter, which complies with IEC 61010-1 and IEC 61010-2-033 standards for electrical measuring instruments.

Indoors

In a pollution degree 2 environment

At an altitude below 2000 m

At a temperature between 5°C and 40°C
