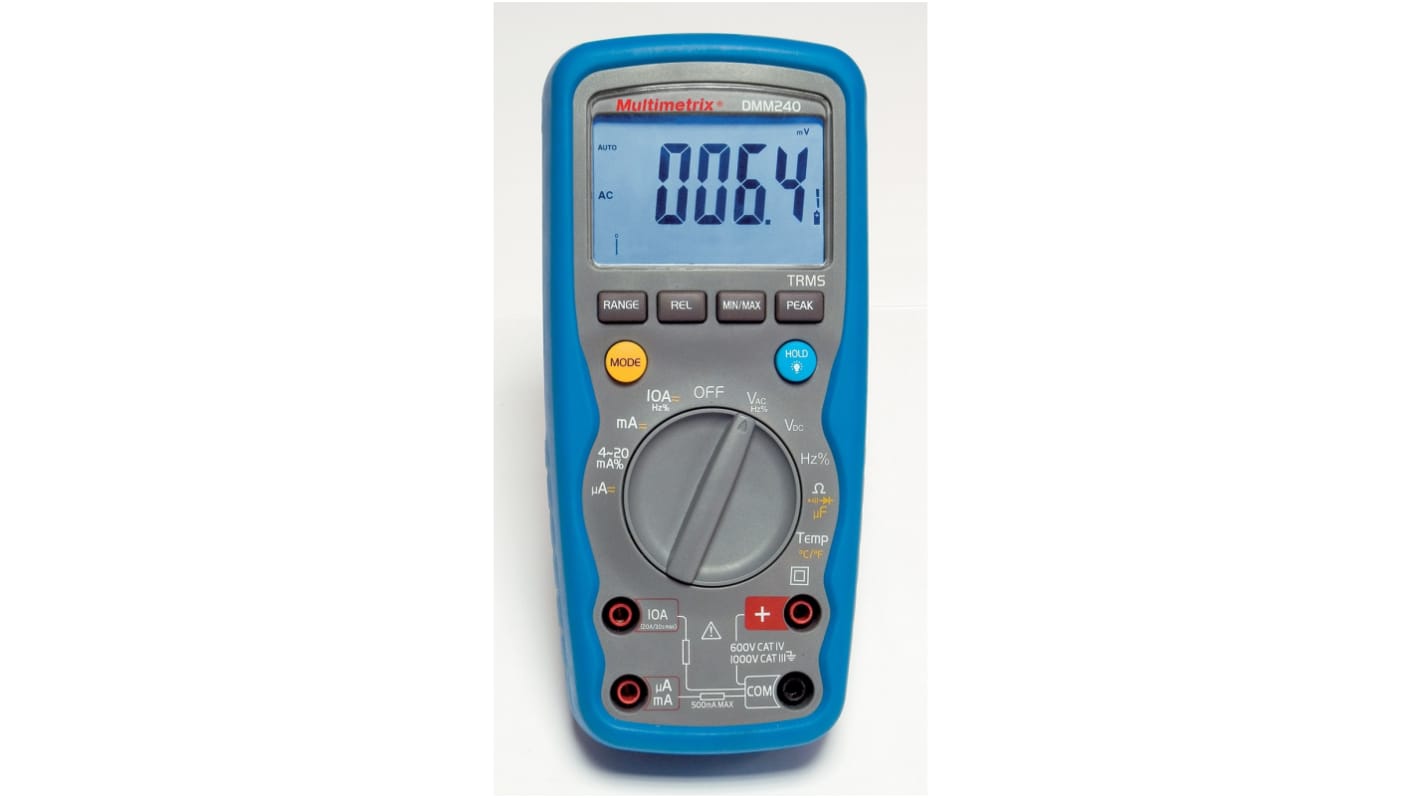

Chauvin Arnoux DMM240 Handheld Digital Multimeter, 10A ac Max, 10A dc Max - RS Calibrated
- RS Stock No.:
- 282-1878
- Mfr. Part No.:
- P06231413
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£248.16
(exc. VAT)
£297.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £248.16 |
*price indicative
- RS Stock No.:
- 282-1878
- Mfr. Part No.:
- P06231413
- Brand:
- Chauvin Arnoux
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Multimeter Type | Handheld | |
| Display Type | Digital | |
| Model Number p | DMM240 | |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature | |
| Calibrated | RSCAL | |
| Absolute Maximum AC Current Measurement | 10A ac | |
| Absolute Maximum DC Current Measurement | 10A dc | |
| Absolute Maximum Temperature Measurement | +50°C | |
| Absolute Maximum Capacitance Measurement | 1mF | |
| Safety Category Level | CAT III, CAT IV | |
| Safety Category Voltage | 600 V, 1000V | |
| Weight | 342g | |
Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Multimeter Type Handheld | ||
Display Type Digital | ||
Model Number p DMM240 | ||
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature | ||
Calibrated RSCAL | ||
Absolute Maximum AC Current Measurement 10A ac | ||
Absolute Maximum DC Current Measurement 10A dc | ||
Absolute Maximum Temperature Measurement +50°C | ||
Absolute Maximum Capacitance Measurement 1mF | ||
Safety Category Level CAT III, CAT IV | ||
Safety Category Voltage 600 V, 1000V | ||
Weight 342g | ||
- COO (Country of Origin):
- CN
DMM 240 10A AC portable True-RMS digital multimeter.
The DMM 240: The True-RMS multimeter, 40,000-dot backlit display for even greater readability.
Multimetrix DMM 240 series multimeters are designed for use in all sectors of activity.
Their 40,000-point display and TRMS measurements are ideal for maintenance and repair work in the industrial, service, electrical and electrical engineering sectors.
They measure all the parameters you need for maintenance work in the field.
Their 40,000-point display and TRMS measurements are ideal for maintenance and repair work in the industrial, service, electrical and electrical engineering sectors.
They measure all the parameters you need for maintenance work in the field.
Specifications
Large 40,000-dot backlit display with bar graphTrue-RMS value
Current AC/DC 400 μA to 10A
Voltage AC/DC 400 mV to 1000 V
Resistance 400 Ω to 40 MΩ
Bandwidth 50 Hz to 1kHz
Audible continuity / Diode Test : Yes
Capacity 0.001nF à 40mF
Frequence 40 à 400Hz
Température -50°C to +1000°C
Min, Max, PEAK (1ms)
IP67
Current AC/DC 400 μA to 10A
Voltage AC/DC 400 mV to 1000 V
Resistance 400 Ω to 40 MΩ
Bandwidth 50 Hz to 1kHz
Audible continuity / Diode Test : Yes
Capacity 0.001nF à 40mF
Frequence 40 à 400Hz
Température -50°C to +1000°C
Min, Max, PEAK (1ms)
IP67
Delivered with: 9V battery, 1 set of red/black touch point + adaptator and temperature sensor type K.
Useful accessories:
Kit of 2 PVC leads + 2 Ø 4 mm touch points - Ø 4 mm straight male plug - Ø 4 mm angled male plug - Ø 4 mm touch point - Ø 4 mm female plug 300 V CAT II 300 V P01295475Z/212-2596.
Set of 2 PVC cords (R/N) Ø 4 mm insulated straight male plug with rear wiring - Ø 4 mm insulated straight male plug with rear wiring 20 A, 2m - 600 V CAT III P01295290Z/ 226-1659.
Set of 2 PVC cords (R/N) Ø 4 mm insulated straight male plug with rear wiring - Ø 4 mm insulated straight male plug with rear wiring 20 A, 2m - 600 V CAT III P01295290Z/ 226-1659.
Standards
600 V CAT IV/ CAT III in accordance with IEC 61010-1, IEC 61010-2-033.
