MPN

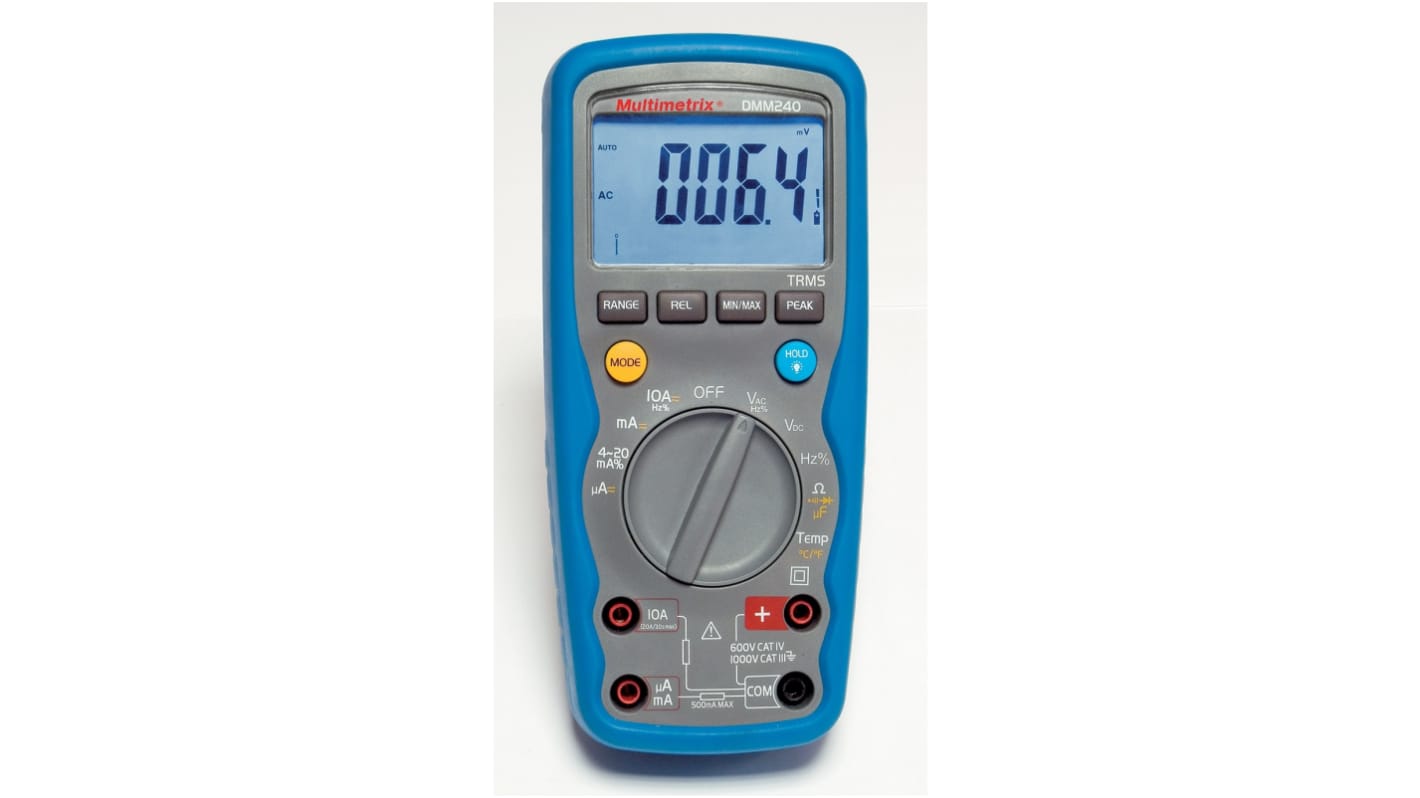

Chauvin Arnoux DMM240 Handheld Digital Multimeter, 10A ac Max, 10A dc Max

RS Stock No.:: 225-8950
Mfr. Part No.:: P06231413
Brand:: Chauvin Arnoux

Chauvin Arnoux DMM240 Handheld Digital Multimeter, 10A ac Max, 10A dc Max

Subtotal (1 unit)*

£203.68

(exc. VAT)

£244.42

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 1 unit(s) shipping from 27 October 2025
Plus 999,999,998 unit(s) shipping from 17 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£203.68

*price indicative

Calibration Options:

Chauvin Arnoux DMM240 Handheld Digital Multimeter, 10A ac Max, 10A dc Max - RS Calibrated

Calibration Type:: RSCAL

RS Stock No.: 282-1878

Each

£248.16

(exc. VAT)

£297.79

(inc. VAT)

Chauvin Arnoux DMM240 Handheld Digital Multimeter, 10A ac Max, 10A dc Max - UKAS Calibrated

Calibration Type:: UKAS

RS Stock No.: 282-1879

Each

£272.16

(exc. VAT)

£326.59

(inc. VAT)

RS Stock No.:: 225-8950
Mfr. Part No.:: P06231413
Brand:: Chauvin Arnoux

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Chauvin Arnoux
	Multimeter Type	Handheld
	Display Type	Digital
	Model Number p	DMM240
	Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
	Absolute Maximum AC Current Measurement	10A ac
	Absolute Maximum DC Current Measurement	10A dc
	Absolute Maximum Capacitance Measurement	1mF
	Absolute Maximum Temperature Measurement	+50°C
	Safety Category Level	CAT III, CAT IV
	Weight	342g
	Safety Category Voltage	600 V, 1000V

	Select all
	Brand Chauvin Arnoux
	Multimeter Type Handheld
	Display Type Digital
	Model Number p DMM240
	Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
	Absolute Maximum AC Current Measurement 10A ac
	Absolute Maximum DC Current Measurement 10A dc
	Absolute Maximum Capacitance Measurement 1mF
	Absolute Maximum Temperature Measurement +50°C
	Safety Category Level CAT III, CAT IV
	Weight 342g
	Safety Category Voltage 600 V, 1000V

Datasheet - P06231413

COO (Country of Origin):: CN

DMM 240 10A AC portable True-RMS digital multimeter.

The DMM 240: The True-RMS multimeter, 40,000-dot backlit display for even greater readability.

Multimetrix DMM 240 series multimeters are designed for use in all sectors of activity.
Their 40,000-point display and TRMS measurements are ideal for maintenance and repair work in the industrial, service, electrical and electrical engineering sectors.
They measure all the parameters you need for maintenance work in the field.

Specifications

Large 40,000-dot backlit display with bar graphTrue-RMS value
Current AC/DC 400 μA to 10A
Voltage AC/DC 400 mV to 1000 V
Resistance 400 Ω to 40 MΩ
Bandwidth 50 Hz to 1kHz
Audible continuity / Diode Test : Yes
Capacity 0.001nF à 40mF
Frequence 40 à 400Hz
Température -50°C to +1000°C
Min, Max, PEAK (1ms)
IP67

Delivered with: 9V battery, 1 set of red/black touch point + adaptator and temperature sensor type K.

Useful accessories:

Kit of 2 PVC leads + 2 Ø 4 mm touch points - Ø 4 mm straight male plug - Ø 4 mm angled male plug - Ø 4 mm touch point - Ø 4 mm female plug 300 V CAT II 300 V P01295475Z/212-2596.

Set of 2 PVC cords (R/N) Ø 4 mm insulated straight male plug with rear wiring - Ø 4 mm insulated straight male plug with rear wiring 20 A, 2m - 600 V CAT III P01295290Z/ 226-1659.
