Chauvin Arnoux Handheld Digital Multimeter, 10 A ac Max, 10 A dc Max, 600 V ac Max
- RS Stock No.:
- 225-8951
- Mfr. Part No.:
- P06231421Z
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£81.64
(exc. VAT)
£97.97
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £81.64 |
*price indicative
- RS Stock No.:
- 225-8951
- Mfr. Part No.:
- P06231421Z
- Brand:
- Chauvin Arnoux
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Product Type | Multimeter | |
| Multimeter Type | Handheld | |
| Display Type | Digital | |
| Resistance Resolution | 0.1Ω | |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance | |
| Maximum AC Current Measurement | 10A ac | |
| Maximum AC Voltage Measurement | 600V ac | |
| Maximum DC Current Measurement | 10A dc | |
| Maximum Resistance Measurement | 40mΩ | |
| Maximum DC Voltage Measurement | 600V dc | |
| AC Current Resolution | 0.1μA ac | |
| DC Voltage Resolution | 0.1 mV dc | |
| DC Current Resolution | 0.1μA ac | |
| AC Voltage Resolution | 0.1mV ac | |
| Power Source | Battery | |
| Weight | 335g | |
| Length | 181mm | |
| Height | 57mm | |
| Width | 92 mm | |
| Standards/Approvals | No | |
| Safety Category Level | CAT III | |
| Safety Category Voltage | 600V | |
| Battery Type | AA | |
| Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Product Type Multimeter | ||
Multimeter Type Handheld | ||
Display Type Digital | ||
Resistance Resolution 0.1Ω | ||
Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance | ||
Maximum AC Current Measurement 10A ac | ||
Maximum AC Voltage Measurement 600V ac | ||
Maximum DC Current Measurement 10A dc | ||
Maximum Resistance Measurement 40mΩ | ||
Maximum DC Voltage Measurement 600V dc | ||
AC Current Resolution 0.1μA ac | ||
DC Voltage Resolution 0.1 mV dc | ||
DC Current Resolution 0.1μA ac | ||
AC Voltage Resolution 0.1mV ac | ||
Power Source Battery | ||
Weight 335g | ||
Length 181mm | ||
Height 57mm | ||
Width 92 mm | ||
Standards/Approvals No | ||
Safety Category Level CAT III | ||
Safety Category Voltage 600V | ||
Battery Type AA | ||
- COO (Country of Origin):
- TW

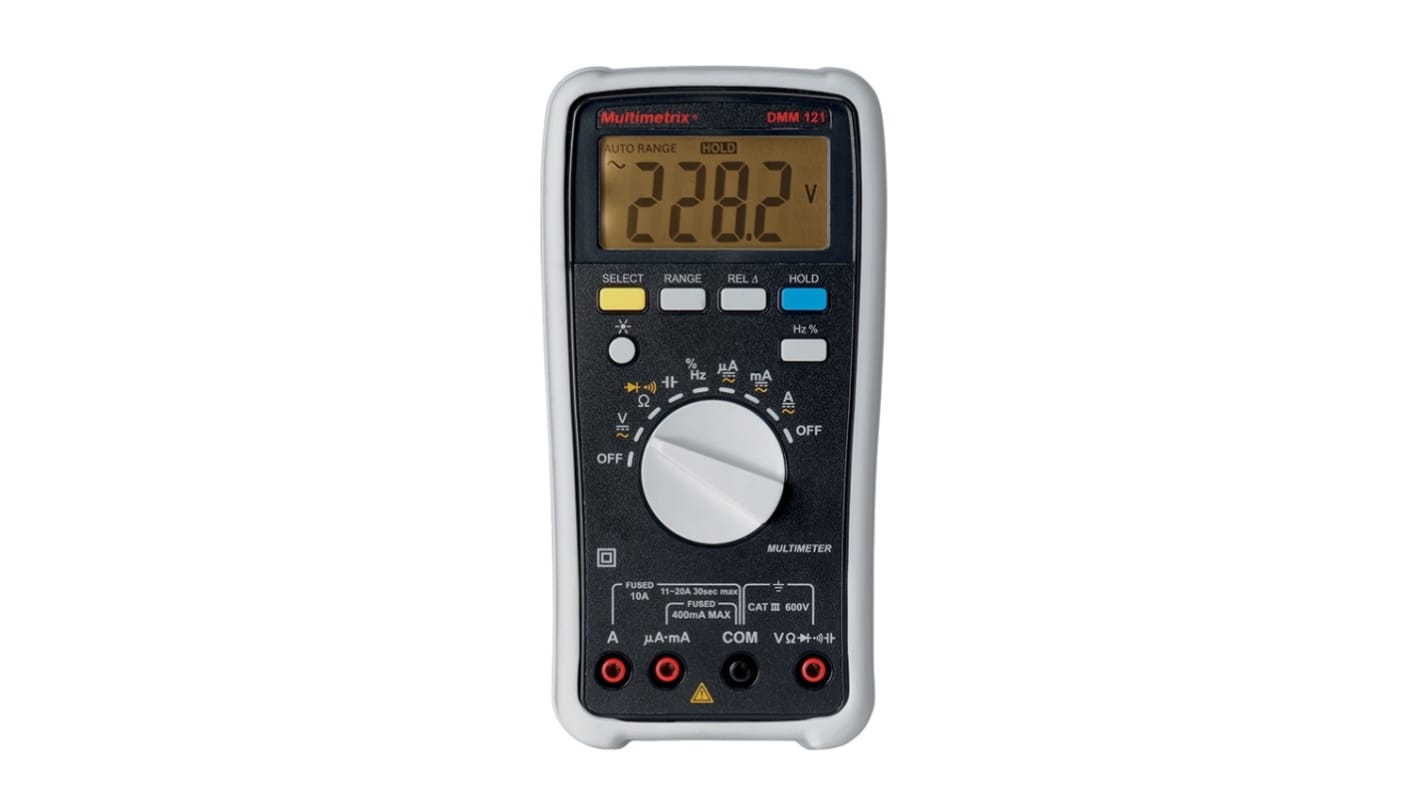

The Multimetrix DMM 121 multimeter is a simple digital multimeter ideally suited for electrical installers, electrical tradesmen, heating and air conditioning technicians and service technicians. It measures direct and alternating voltages, direct and alternating currents, frequencies, capacitances and resistances. In addition, the voltage and continuity of the diodes can be determined with the horn. The DMM 121 multimeter measures with type AVG. It offers a HOLD function, automatic shutdown and deactivatable relative measurements. Range selection is automatic or manual.
Battery- 2 x 1.5 V AA / LR6
Average battery life - 400 hours
Auto-off delay- after 30 minutes without action on the keys and/or the switch
