Chauvin Arnoux Handheld Digital Multimeter True RMS, 10 A Max, 10 A Max, 600 V Max
- RS Stock No.:
- 225-8952
- Mfr. Part No.:
- P06231422Z
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£117.83
(exc. VAT)
£141.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £117.83 |
*price indicative
- RS Stock No.:
- 225-8952
- Mfr. Part No.:
- P06231422Z
- Brand:
- Chauvin Arnoux
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Product Type | Multimeter | |
| Multimeter Type | Handheld | |
| Display Type | Digital | |
| Resistance Resolution | 0.1Ω | |
| Functions Measured | Resistance, Capacitance, AC Voltage, Frequency, DC Voltage, DC Current, AC Current | |
| Maximum AC Voltage Measurement | 600V | |
| Maximum DC Current Measurement | 10A | |
| Maximum DC Voltage Measurement | 600V | |
| Maximum Resistance Measurement | 40mΩ | |
| Maximum AC Current Measurement | 10A | |
| True RMS | Yes | |
| DC Voltage Resolution | 0.1 mV | |
| AC Current Resolution | 0.1μA | |
| AC Voltage Resolution | 0.1mV | |
| DC Current Resolution | 0.1μA | |
| Power Source | Battery | |
| Length | 181mm | |
| Standards/Approvals | No | |
| Weight | 335g | |
| Height | 57mm | |
| Width | 92 mm | |
| Safety Category Level | CAT III | |
| Battery Type | AA | |
| Safety Category Voltage | 600V | |
| Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Product Type Multimeter | ||
Multimeter Type Handheld | ||
Display Type Digital | ||
Resistance Resolution 0.1Ω | ||
Functions Measured Resistance, Capacitance, AC Voltage, Frequency, DC Voltage, DC Current, AC Current | ||
Maximum AC Voltage Measurement 600V | ||
Maximum DC Current Measurement 10A | ||
Maximum DC Voltage Measurement 600V | ||
Maximum Resistance Measurement 40mΩ | ||
Maximum AC Current Measurement 10A | ||
True RMS Yes | ||
DC Voltage Resolution 0.1 mV | ||
AC Current Resolution 0.1μA | ||
AC Voltage Resolution 0.1mV | ||
DC Current Resolution 0.1μA | ||
Power Source Battery | ||
Length 181mm | ||
Standards/Approvals No | ||
Weight 335g | ||
Height 57mm | ||
Width 92 mm | ||
Safety Category Level CAT III | ||
Battery Type AA | ||
Safety Category Voltage 600V | ||
- COO (Country of Origin):
- TW

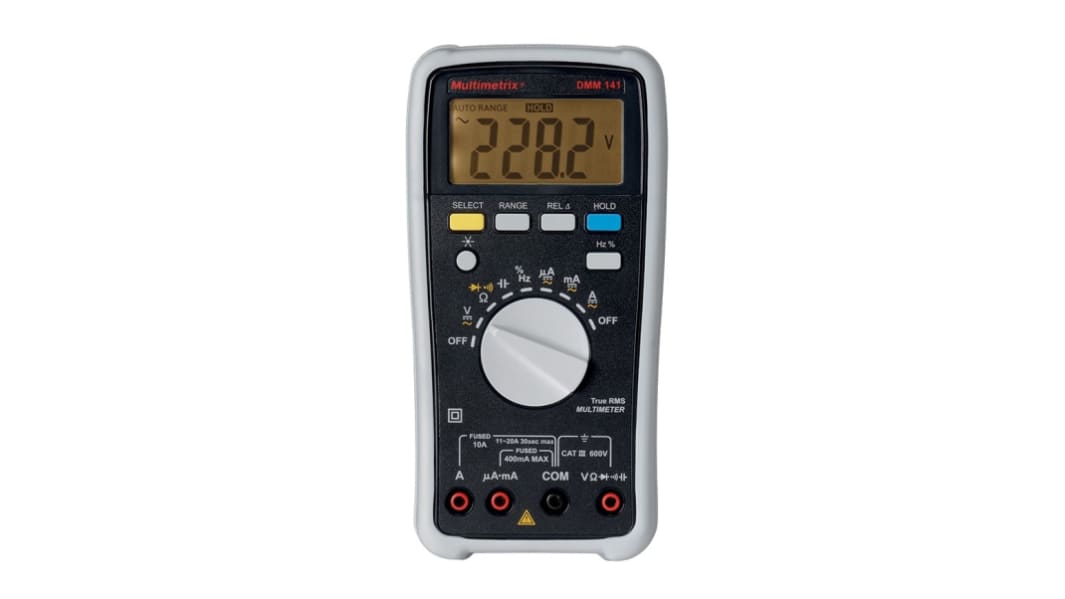

The Multimetrix DMM 141 multimeter is a simple digital multimeter ideal for electrical installers, electrical tradesmen, heating and air conditioning technicians, and service technicians. It measures direct and alternating voltages, direct and alternating currents, frequencies, capacitances and resistances. In addition, the voltage and continuity of the diodes can be determined with the horn. The DMM 141 multimeter measures with the TRMS measurement type. It offers a HOLD function, automatic shutdown and deactivatable relative measurements. Range selection is automatic or manual.
4000 digit display with backlight
Automatic and manual range selection
Voltage 600 V AC / DC TRMS
Current 10 A AC / DC TRMS
Hold function
