RS PRO IDM91E Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max - UKAS Calibrated

RS Stock No.:: 123-3476
Brand:: RS PRO

RS PRO IDM91E Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max - UKAS Calibrated

Subtotal (1 unit)*

£233.22

(exc. VAT)

£279.86

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

289 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£233.22

*price indicative

RS Stock No.:: 123-3476
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Multimeter Type	Handheld
	Model Number p	IDM91E
	Display Type	Digital
	Calibrated	UKAS
	Functions Measured	AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
	Absolute Maximum AC Voltage Measurement	600V ac
	Absolute Maximum DC Voltage Measurement	600V dc
	Absolute Maximum DC Current Measurement	10A dc
	Absolute Maximum AC Current Measurement	10A ac
	Absolute Maximum Resistance Measurement	20MΩ
	True RMS	No
	DC Current Measurement Resolution	0.1µA dc
	AC Current Measurement Resolution	0.1µA ac
	AC Voltage Measurement Resolution	0.1mV ac
	DC Voltage Measurement Resolution	0.1mV dc
	Resistance Measurement Resolution	100mΩ
	Safety Category Level	CAT III
	Best Resistance Measurement Accuracy	±0.75% + 1 Digits
	Length	84 (without Holster) mm, 95 (with Holster) mm
	Height	175 (Without Holster) mm, 192 (With Holster) mm
	Maximum Operating Temperature	+50°C
	Best AC Voltage Accuracy	±1.25% + 4 Digits
	Safety Category Voltage	600V
	Minimum Operating Temperature	0°C
	Dimensions	84 x 31 x 175 (without Holster) mm, 95 x 50 x 192 (with Holster) mm
	Best DC Voltage Accuracy	±0.5% + 1 Digits
	Battery Type	9V, IEC 6F22, NEDA 1604
	Weight	550 (With Holster)g
	Best DC Current Accuracy	±1% + 1 Digits
	Width	31 (Without Holster) mm, 50 (With Holster) mm
	Best AC Current Accuracy	±2.5% + 3 Digits

	Select all
	Brand RS PRO
	Multimeter Type Handheld
	Model Number p IDM91E
	Display Type Digital
	Calibrated UKAS
	Functions Measured AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
	Absolute Maximum AC Voltage Measurement 600V ac
	Absolute Maximum DC Voltage Measurement 600V dc
	Absolute Maximum DC Current Measurement 10A dc
	Absolute Maximum AC Current Measurement 10A ac
	Absolute Maximum Resistance Measurement 20MΩ
	True RMS No
	DC Current Measurement Resolution 0.1µA dc
	AC Current Measurement Resolution 0.1µA ac
	AC Voltage Measurement Resolution 0.1mV ac
	DC Voltage Measurement Resolution 0.1mV dc
	Resistance Measurement Resolution 100mΩ
	Safety Category Level CAT III
	Best Resistance Measurement Accuracy ±0.75% + 1 Digits
	Length 84 (without Holster) mm, 95 (with Holster) mm
	Height 175 (Without Holster) mm, 192 (With Holster) mm
	Maximum Operating Temperature +50°C
	Best AC Voltage Accuracy ±1.25% + 4 Digits
	Safety Category Voltage 600V
	Minimum Operating Temperature 0°C
	Dimensions 84 x 31 x 175 (without Holster) mm, 95 x 50 x 192 (with Holster) mm
	Best DC Voltage Accuracy ±0.5% + 1 Digits
	Battery Type 9V, IEC 6F22, NEDA 1604
	Weight 550 (With Holster)g
	Best DC Current Accuracy ±1% + 1 Digits
	Width 31 (Without Holster) mm, 50 (With Holster) mm
	Best AC Current Accuracy ±2.5% + 3 Digits

Manufacturer Information

COO (Country of Origin):: TW

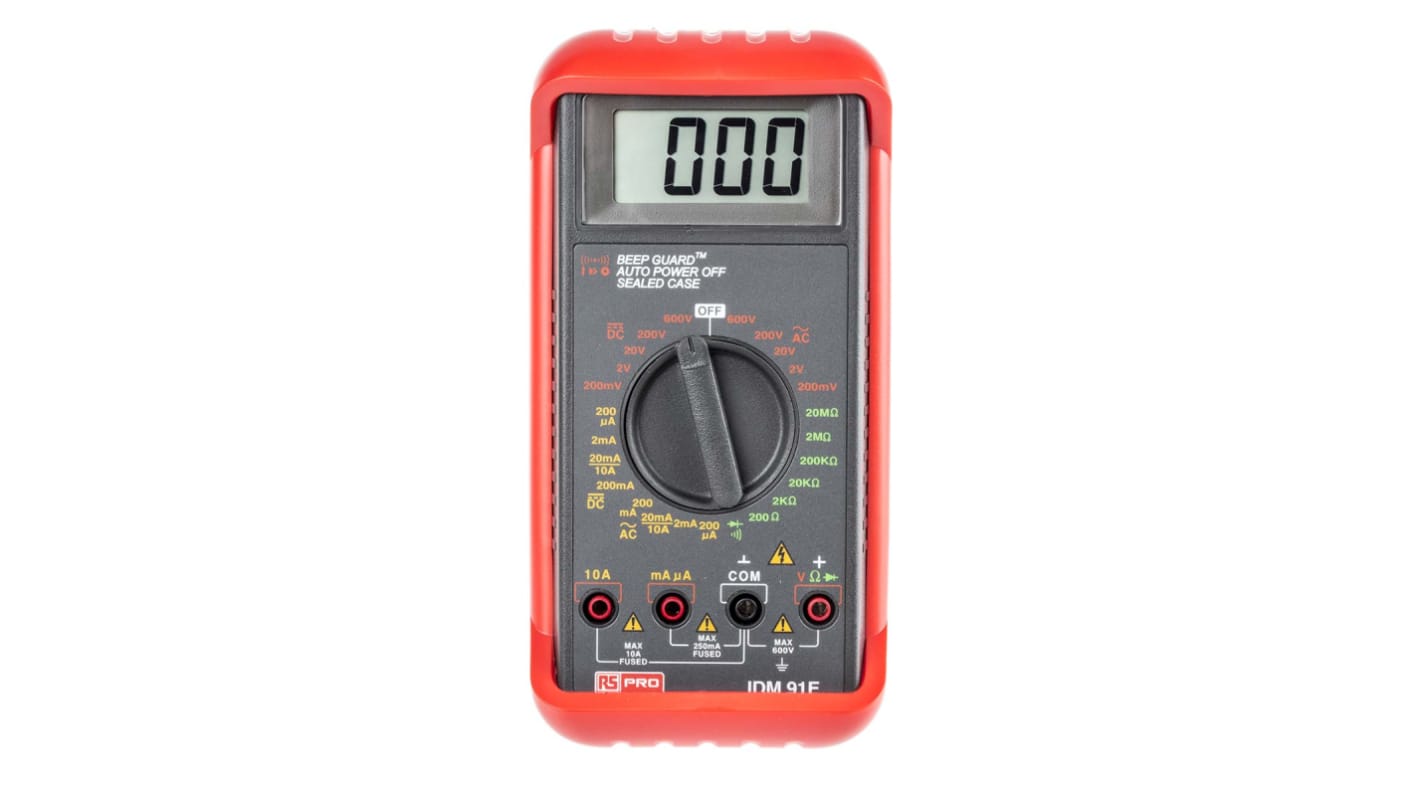

RS PRO IDM91E Rugged Industrial Digital Multimeter

RS PRO IDM91E digital multimeter (DMM) designed for harsh environments. This handheld DMM is a tool which can measure capacitance, voltage, electrical current and resistance with diode and continuity check. The rugged body guarantees drop prof resistance from up to 1.5 m. The multimeter is also waterproof with a rating of IP54. Featuring fuse protection on both 200 mA and 10 A current ranges and a specially designed beep guard system. That system provides a constant beep warning if the test leads put in the current jacks and select an incorrect function.

The meter is supplied with a protective holster that includes a built-in tilt stand, a nail hook, and convenient test lead storage. This holster provides an extra degree of protection and convenience for your meter.

RS PRO IDM 91E Multimeters are designed to meet Class II IEC 1010 and UL 3111 standards for the safest operation in all applications.

This device has been designed for the most demanding users that value solid construction and highly accurate measurements.

Features and Benefits

• 3 1/2 digit LCD
• 0.5% basic DCV accuracy
• 1.3% basic ACV accuracy
• 1.0% basic DCA accuracy
• 1.5% basic ACA accuracy
• 0.75% basic OHM accuracy
• Continuity and diode test
• 500V dual-fuse protection
• Auto power-off
• Beep Guard™ warning system
• Water resistant rating IP64
• 1.5m (5 feet) dropproof
• Protective holster with tilt stand
• IEC 1010-1 CAT.III 600V/ CAT.II 1000V
• One set of 1:1 probe

What does it measure?

DC and AC Voltages - up to 600 V
DC and AC Current - up to 10A
Resistance and continuity checking - up to 20 MΩ
Diode - open circuit voltage up to 3.2V

Batteries?

300 Hours (Alkaline)
Single 9V (NEDA 1604 or IEC 6F22)
Low battery indicator
Auto power off - approx 30 minutes after the last operation

What It Incudes?

Installed battery
Test Leads
User manual
Protective holster

Dimensions:

Without Holster:
Width 84 mm
Length 175 mm
Height 31 mm
With Holster:
Width 95 mm
Length 192 mm
Height 50 mm

Typical Applications:
A digital multimeter is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries

Safety guidelines
When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.
